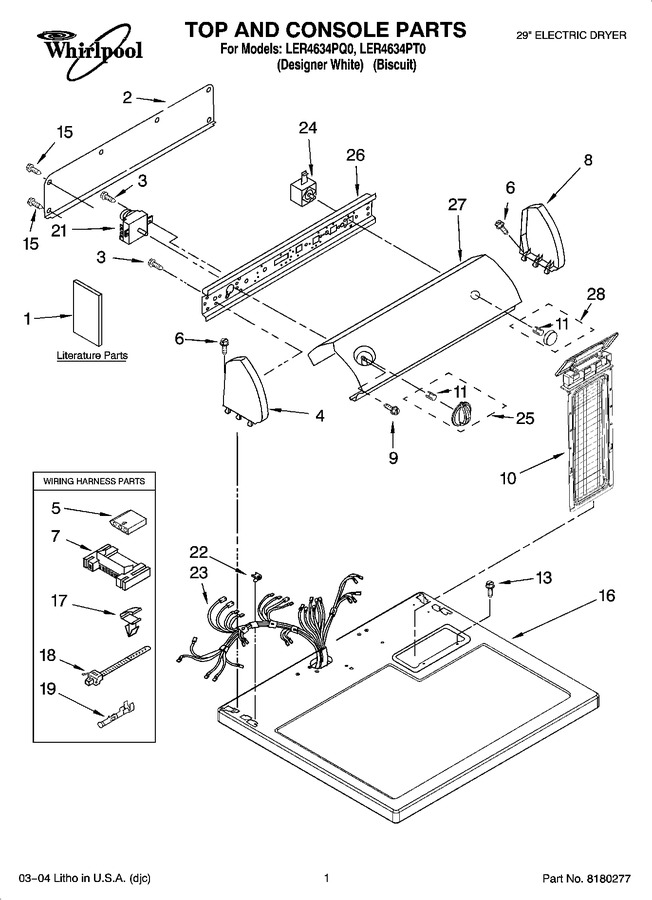

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8535829 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT677818 | Literature Parts (dryer) |
|
- | |||||
| 1 | N/A | Do-it-yourself Repair Manuals |
|
- | |||||
| 1 | LIT8528187 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT8533770 | Literature Parts (sheet, Cycle Feature) |
|
- | |||||
| 1 | LIT8522243 | Literature Parts (use & Care Guide) |
|
- | |||||
| 2 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 121.78 | |||||
| 3 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 7.23 | |||||
| 4 | 8271365 | Cap, End (l.h.) (white) |
|
- | |||||
| 4 | 8271368 | Cap, End (l.h.) (biscuit) |
|
- | |||||
| 5 | 3936144 | Connector |
|
$ 19.10 | |||||
| 6 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.36 | |||||
| 7 | 3395683 | Housing, Connector (motor) |
|
Immediately | $ 49.01 | ||||
| 8 | 8271359 | Cap, End (r.h.) (white) |
|
- | |||||
| 8 | 8271362 | Cap, End (r.h.) (biscuit) |
|
- | |||||
| 9 | 3400859 | Screw, Grounding |
|
$ 12.49 | |||||
| 10 | WP8557862 | Screen, Lint (biscuit) (Replaces: 8557862) |
|
$ 122.30 | |||||
| 10 | W10874409 | Screen, Lint (white) (Replaces: 8557861) |
|
Immediately | $ 60.31 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 15 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 16 | 8557930 | Top (white) |
|
- | |||||
| 16 | 8557931 | Top (biscuit) |
|
- | |||||
| 17 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 18 | 3391249 | Tie, Cable |
|
- | |||||
| 19 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.25 | |||||
| 21 | WP8299778 | Timer, 60 Hz. (Replaces: 8299778) |
|
Immediately | $ 242.93 | ||||
| 22 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 6.98 | |||||
| 23 | WPW10450292 | Harness, Wiring (Replaces: 8299867) |
|
$ 251.39 | |||||
| 24 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 23.99 | ||||
| 25 | 8544955 | Timer Knob Assembly (white) |
|
$ 41.86 | |||||
| 25 | 8544956 | Timer Knob Assembly (biscuit) |
|
- | |||||
| 26 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 27 | 8545970 | Panel, Control (biscuit) |
|
- | |||||
| 27 | 8545960 | Panel, Control (white) |
|
$ 110.50 | |||||
| 28 | 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | |||||
| 28 | 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | |||||
| 28 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 28 | WP8544941 | Knob, Push-to-start (biscuit) (Replaces: 8544942) |
|
$ 91.46 | |||||
| 28 | N/A | Accessory Parts |
|
- | |||||
| 28 | 4392065 | Kit, Dryer Repair (Replaces: 279948) |
|
Immediately | $ 60.01 | ||||
| 28 | WP689790 | Dry Rack (Replaces: 689790) |
|
$ 54.20 | |||||
| 28 | W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
Immediately | $ 11.11 | ||||
| 28 | 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 24.99 | ||||
| 28 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | ||||
| 28 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 28 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 28 | WP8544939 | Knob, Push-to-start (white) (Replaces: 8544939) |
|
$ 47.20 |
