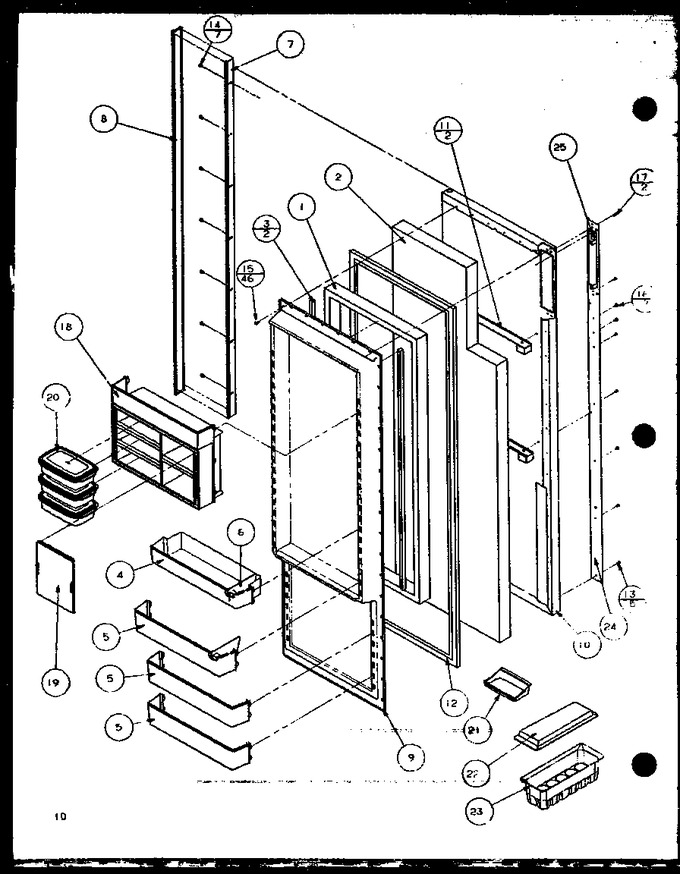

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B0523562		Insul. By The Ft.		Appelez-nous	-
2	B0566725		Insulation, Batt		Appelez-nous	-
3	C8987104		Seal, Door Dike		Appelez-nous	-
4	D7783301		Bucket, Ref Door		Appelez-nous	-
5	67003697		Shelf, Ref Door   (Replaces: D7783401)				$ 82.08
6	D7814602		Snugger		Appelez-nous	-
7	D7814701		Retainer, Vert Trim		Appelez-nous	-
8	D7814801		Trim		Appelez-nous	-
9	D7828701		Inner Door Panel, Ref		Appelez-nous	-
10	D7834019		Door, Ref G		Appelez-nous	-
10	D7834018		Pan, Ref Door, White		Appelez-nous	-
10	D7834020		Pan, Ref Door, Almond		Appelez-nous	-
11	D7837402		Support, Handle		Appelez-nous	-
12	D7870905		Gasket, Door (w Ref)		Appelez-nous	-
13	M0213815		Screw		Appelez-nous	-
14	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
15	M0219717		Screw		Appelez-nous	-
16	M0233329		Screw,sm		Appelez-nous	-
17	M0237515		Screw		Appelez-nous	-
18	D7781201		Module, Dairy		Appelez-nous	-
19	D7781301		Door Dairy		Appelez-nous	-
20	D7806401		Container Sec. Ser.		Appelez-nous	-
21	D3799802		Butter Tray		Appelez-nous	-
22	D7805902		Cover, Egg Bucket		Appelez-nous	-
23	D7695603		Egg Bucket A-v		Appelez-nous	-
24	D7832402		Trim		Appelez-nous	-
25	B5733302		Clip, Ground		Appelez-nous	-
