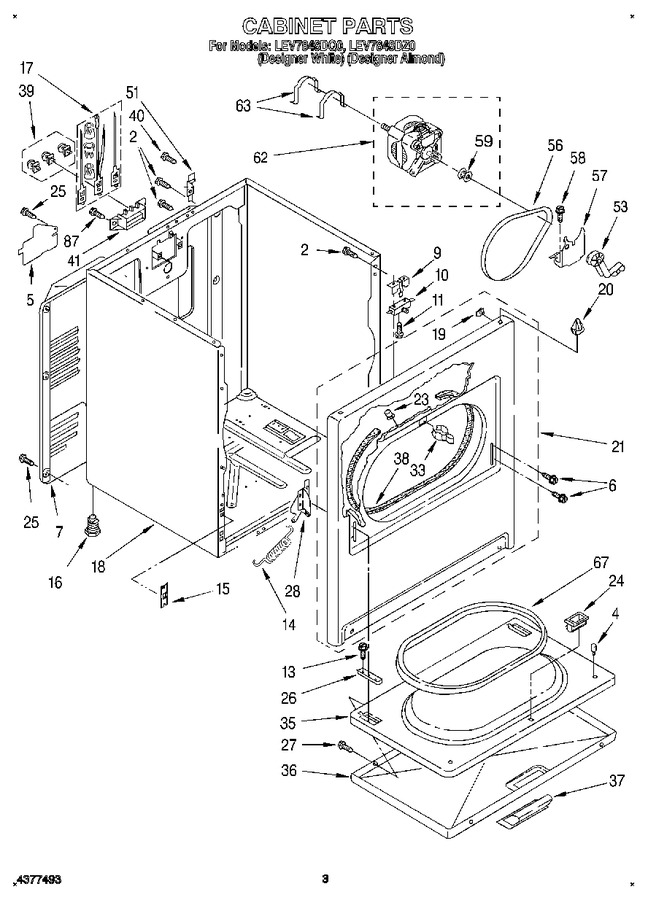

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
4	238614		Bumper				$ 76.31
5	W11539855		Cover, Block   (Replaces: 3396795)			Immediately	$ 566.78
6	342043		Screw, 10-32 X 1/2		Appelez-nous	-
7	280043		Panel, Rear   (Replaces: 3396805)				$ 322.53
9	WP691581		Lever, Door Switch   (Replaces: 691581)			Immediately	$ 7.64
10	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 27.45
11	WP98129		Screw, 6-20 X 1-3/8   (Replaces: 98129)				$ 7.36
13	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.08
14	WPW10041960		Spring, Door (2)   (Replaces: 692495)			Immediately	$ 38.43
15	W10854425		Clip, Front Panel (2)   (Replaces: 3394083)			Immediately	$ 14.71
16	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
16	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 7.70
17	279318		Terminal, Tinned & Brass (3) (includes Illus. 39)			Immediately	$ 95.44
18	3399585		Cabinet (includes Illus. No`s. 5, 7, 15, 16, 41 & 57) (white)		Appelez-nous	-
18	3399586		Cabinet (includes Illus. Nos. 5, 7, 15, 16, 41, & 57) (almond)		Appelez-nous	-
19	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 10.76
20	WP18776		Lock, Front Top (2)   (Replaces: 690363)			Immediately	$ 11.98
21	279443		Panel, Front (white)   (Replaces: 695620)				$ 364.96
21	695621		Panel, Front (almond)		Appelez-nous	-
23	279220		Clip, Felt Pad (3)   (Replaces: 685203)				$ 21.20
24	279570		Catch, Door Assembly   (Replaces: 690081)			Immediately	$ 8.00
25	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 6.80
26	W11252547		Clip, Hinge (2)   (Replaces: 337189)				$ 20.21
27	WP694091		Screw (6)   (Replaces: 694091)				$ 6.80
28	WP8066057		Hinge, L.h.   (Replaces: 692501)				$ 90.86
28	WP8066056		Hinge, R.h.   (Replaces: 692498)			Immediately	$ 93.02
33	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.00
35	WP695737		Door, Rear   (Replaces: 695737)				$ 240.56
36	3393550		Door, Front (almond)		Appelez-nous	-
36	WP3393549		Door, Front (white)   (Replaces: 3393549)				$ 166.81
37	WP348721		Handle, Door (white)   (Replaces: 690270)				$ 73.60
37	690271		Handle, Door (almond)		Appelez-nous	-
38	W11035878		Seal & Bearing Assembly   (Replaces: 692493)			Immediately	$ 83.41
39	279393		Terminal Block Kit (for Terminal Block)			Immediately	$ 50.09
40	W10850756		Screw, 10-16 X 1/2   (Replaces: 697776)				$ 7.38
41	279320		Block, Terminal   (Replaces: 690261)			Immediately	$ 61.43
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.39
53	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 20.22
56	341241		Belt, Drive   (Replaces: 660996)			Immediately	$ 16.34
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 114.89
58	3400500		Bolt, 5/16-18 X 3/4   (Replaces: 172455)			Immediately	$ 12.64
59	WP8066184		Pulley, 60 Hz.   (Replaces: 3401143)			Immediately	$ 45.92
62	279827		Motor Assembly 60 Hz.   (Replaces: 3395652)			Immediately	$ 195.48
63	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.40
63	WP660658		(alt.)   (Replaces: 343481)				$ 7.40
63	WP660658		(alt.)   (Replaces: 685441)				$ 7.40
67	W10906683		Seal, Door   (Replaces: 3390731)				$ 121.46
87	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.08
