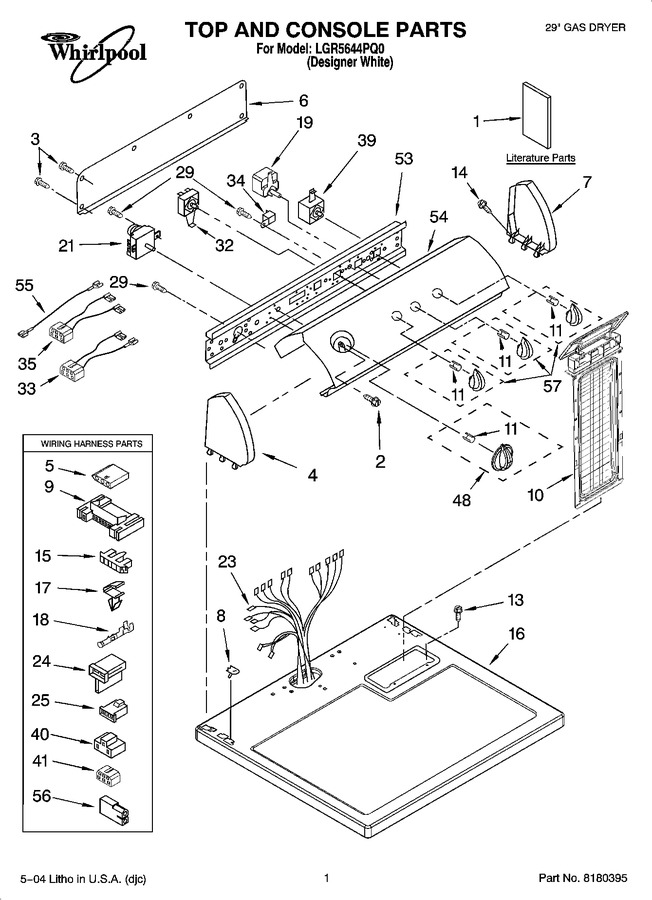

01 - Top And Console Parts
02 - Cabinet Parts
03 - 8318272 Burner Assembly
04 - Bulkhead Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Do-it-yourself Repair Manuals |
|
- | |||||
| 1 | 3979703 | Wiring Diagram |
|
- | |||||
| 1 | 8533770 | Sheet, Cycle Feature |
|
- | |||||
| 1 | 677818 | Manual, Do-it- Yourself Repair (dryer) |
|
- | |||||
| 1 | 8522243 | Use & Care Guide |
|
- | |||||
| 1 | 8535830 | Installation Instructions |
|
- | |||||
| 2 | 3400859 | Screw, Grounding |
|
$ 12.49 | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 5 | 3936144 | Connector |
|
$ 19.10 | |||||
| 6 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 121.78 | |||||
| 7 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 8 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 6.98 | |||||
| 9 | 3395683 | Housing, Connector (motor) |
|
Immediately | $ 49.01 | ||||
| 10 | W10874409 | Screen, Lint (Replaces: 8557861) |
|
Immediately | $ 60.31 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.36 | |||||
| 15 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 16 | 8557930 | Top |
|
- | |||||
| 17 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 18 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.25 | |||||
| 19 | WP3405156 | Switch, Wrinkle Shield (Replaces: 3405156) |
|
$ 137.51 | |||||
| 21 | WP8299766 | Timer Assembly (60 Hz.) (Replaces: 8299766) |
|
$ 350.32 | |||||
| 23 | 8299878 | Harness, Wiring |
|
- | |||||
| 24 | WP3403499 | Connector, 2-position Gas Valve (Replaces: 3403499) |
|
$ 5.42 | |||||
| 25 | WP3403498 | Connector, 3-position (gas Valve) (Replaces: 3403498) |
|
$ 6.57 | |||||
| 29 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 7.23 | |||||
| 32 | WP3399639 | Switch, Temperature (Replaces: 3399639) |
|
Immediately | $ 118.04 | ||||
| 33 | 3397695 | Wire, Jumper (guard On/off) |
|
$ 81.65 | |||||
| 34 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 120.65 | |||||
| 35 | 8539893 | Wire, Jumper (temperature) (Replaces: 3396029) |
|
$ 17.80 | |||||
| 39 | WP3398095 | Switch, Push-to-start (Replaces: 3398095) |
|
Immediately | $ 83.59 | ||||
| 40 | 3401144 | Connector, (pts Relay) |
|
$ 11.53 | |||||
| 41 | 3347243 | Connector 6-circuit |
|
- | |||||
| 48 | 8544955 | Timer Knob Assembly |
|
$ 41.86 | |||||
| 53 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 54 | 8545976 | Panel, Control |
|
- | |||||
| 55 | 3401684 | Wire, Jumper (black) |
|
$ 34.57 | |||||
| 56 | 717252 | Receptacle, Latching (2-way) |
|
- | |||||
| 57 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 57 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 57 | WP689790 | Dry Rack (Replaces: 689790) |
|
$ 54.20 | |||||
| 57 | W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
Immediately | $ 11.11 | ||||
| 57 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | ||||
| 57 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 57 | 8544935 | Knob, Control (3) |
|
- | |||||
| 57 | N/A | Accessory Parts |
|
- | |||||
| 57 | 4392065 | Kit, Dryer Repair (Replaces: 279948) |
|
Immediately | $ 60.01 | ||||
| 57 | 346764 | Kit, Hold-down (gas Dryer Mobile Home Installation) |
|
- |
