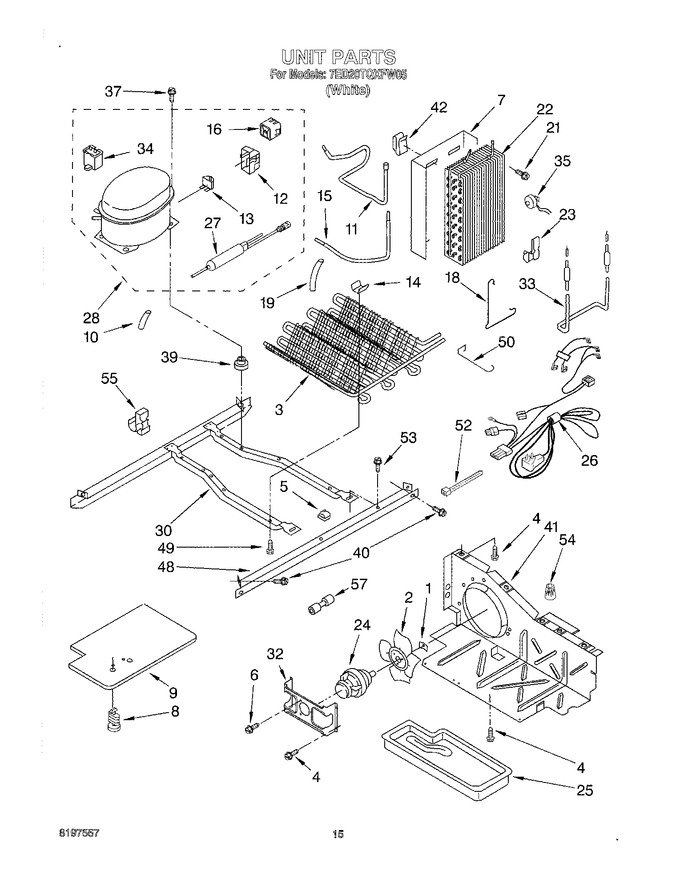

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	2190685		Blade, Fan				$ 52.00
3	2204484		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
5	934011		Clip, Tube (2)		Appelez-nous	-
6	681390		Screw   (Replaces: 489099)				$ 13.71
7	2149293		Heat Shield And Drain Pan		Appelez-nous	-
8	489396		Clip				$ 11.26
9	2182057		Cover, Unit Compartment				$ 72.28
10	WP2158826		Dampener   (Replaces: 2158826)				$ 1.82
11	2205764		Tube Suction   (Replaces: 2204238)				$ 89.18
12	WP2162358		Cover (service Compressor Only)   (Replaces: 4387731)				$ 95.29
13	4387535		Overload (service Compressor Only- Includes Relay)   (Replaces: 4387767)				$ 191.05
14	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 19.38
15	2211760		Tube, Condenser To Heat Loop		Appelez-nous	-
16	2188505		Start-device, Combination (start Relay And Overload) For Production Compressor Only		Appelez-nous	-
18	2161324		Clip, Defrost Heater		Appelez-nous	-
19	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
21	WP965173		Screw   (Replaces: 487869)			Immediately	$ 11.87
22	WP2188822		Evaporator   (Replaces: 2164518)			Immediately	$ 356.84
23	2161330		Clip, Heater (2)		Appelez-nous	-
24	W10822259		Fan, Motor   (Replaces: 2188537)			Immediately	$ 268.51
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 158.16
26	2216405		Harness, Unit		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2199167)			Immediately	$ 57.13
28	W10309990		Compressor (includes Items 12, 13, 27 & 34)   (Replaces: 2183453)			Immediately	$ 648.47
30	2160498		Unit Mounting Frame		Appelez-nous	-
32	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.93
33	WP2323197		Heater, Defrost   (Replaces: 2188174)			Immediately	$ 123.25
34	WP4387764		Capacitor (service Compressor Only)   (Replaces: 4387764)				$ 185.89
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2196155)			Immediately	$ 50.77
37	489387		Screw		Appelez-nous	-
39	W11661108		Grommet (4)   (Replaces: 2183042)				$ 15.21
40	489340		Screw		Appelez-nous	-
41	2196201		Air Baffle		Appelez-nous	-
42	2155547		Clip, Heat Shield		Appelez-nous	-
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	W11544659		Screw   (Replaces: 8281232)				$ 14.35
50	1105612		Guard, Fan				$ 42.61
52	WPW10339879		Strap   (Replaces: 2172840)				$ 8.30
53	WP489427		Screw   (Replaces: 489427)				$ 7.84
54	850145		Wire Connector		Appelez-nous	-
55	2208280		Clip, Wire & Tube		Appelez-nous	-
57	876764		Valve, Access(3/16``)			Immediately	$ 95.92
57	978028		Valve, Access (1/2)		Appelez-nous	-
57	978029		Valve Access (5/8``)				$ 93.85
57	978030		Valve, Access (3/4``)				$ 137.25
57	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
57	WP4373559		Union   (Replaces: 2209709)				$ 81.22
57	978026		Valve, Access (5/16``)			Immediately	$ 134.49
57	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 18.65
