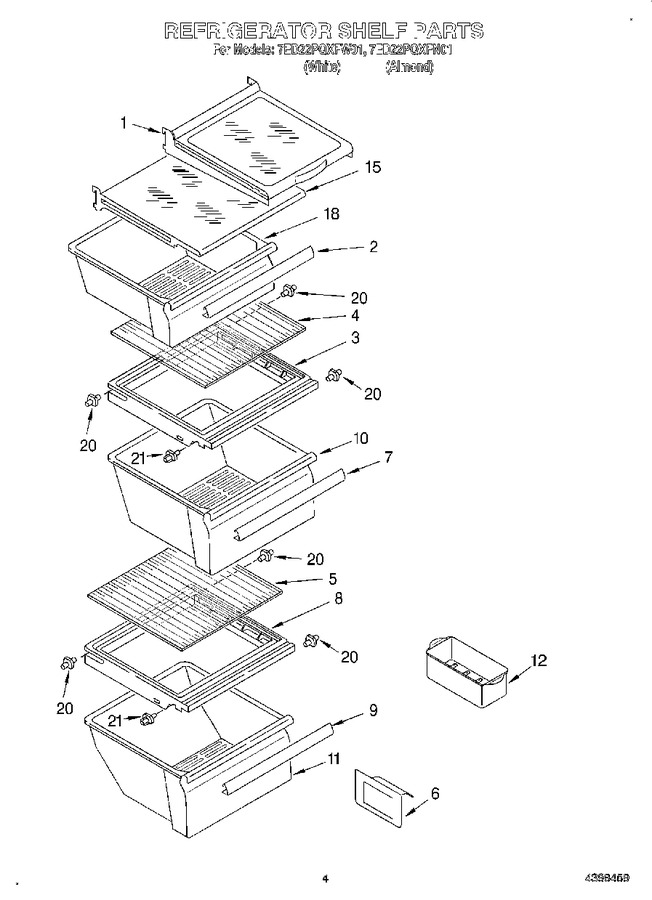

03 - Refrigerator Shelf


04 - Freezer Liner


05 - Air Flow


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Ice Maker


12 - Control, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194281		Shelf, Cantilever (2)		Appelez-nous	-
2	WP2179243		Trim, Snack Pan   (Replaces: 2179243)				$ 109.65
3	W10508993		Cover, Crisper   (Replaces: 2194578)				$ 305.85
4	W10864399		Glass, Cover   (Replaces: 2174150)				$ 232.03
5	W10864399		Glass, Meat Cover   (Replaces: 2179259)				$ 232.03
6	2179350		Deflector				$ 85.89
7	2194905		Trim, Pan		Appelez-nous	-
8	W10508993		Cover, Meat Pan   (Replaces: 2189601)				$ 305.85
9	WP2179234		Trim, Meat Pan   (Replaces: 2194906)				$ 88.57
10	WP2188661		Pan, Crisper   (Replaces: 2196229)			Immediately	$ 196.47
11	WP2188664		Meat Pan   (Replaces: 2196231)			Immediately	$ 92.70
12	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 19.54
15	2194734		Shelf, Snack Bin		Appelez-nous	-
18	W11497323		Snack Bin   (Replaces: 2196233)				$ 234.84
20	4388538		Shelf Stud   (Replaces: 1110718)			Immediately	$ 32.85
21	4388539		Shelf Stud   (Replaces: 2172943)				$ 22.28
