Diagram # Part Number Description Series Availability Ships Price Add to Cart
51 10543747 Assy, Upr Crispr Frm Appelez-nous -
61 10880703 Assy, Glass Shelf Appelez-nous -
71 10543749 Assy, Lwr Crisp Frm Appelez-nous -
131 12156201 Socket, Dual Lamp Appelez-nous -
161 10014717 Shield, Light Appelez-nous -
191 M0580007 Grommet, Screw Appelez-nous -
251 R9800670 Screw, Tf   (Replaces: M0238731) Special Order $ 10.58

471 12077312 Hinge, Top (e-ct) Appelez-nous -
481 12187501 Shim, Top Hinge Appelez-nous -
661 10849401 Cover W Hinge Appelez-nous -
811 40A15 Bulb, Light (40 Watt)   (Replaces: A0282803) In-Stock Immediately $ 1.98

821 M0238846 Screw-sm Appelez-nous -
861 10493202 Cover, Ref. Light Appelez-nous -
1721 10471909 Pan-crisper Appelez-nous -
1891 10523907 Bucket-fz Door Appelez-nous -
2101 WP8281196 Screw-mach   (Replaces: M0202327) In-Stock Immediately $ 7.55

2611 10033201 Deflector, Air Appelez-nous -
8001 M0270508 Washer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

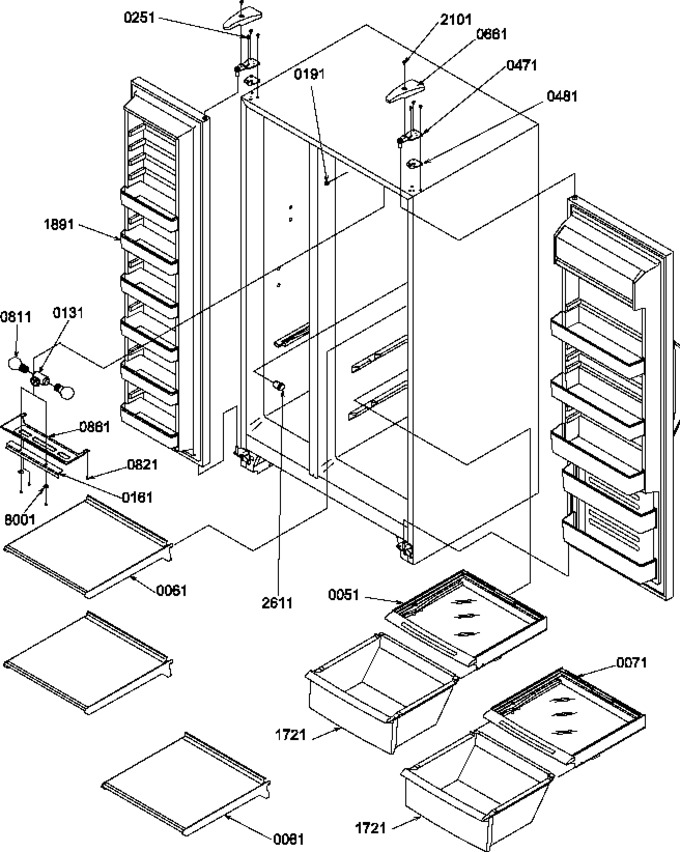

Diagram for SG19SW (BOM: P1193702W W)
