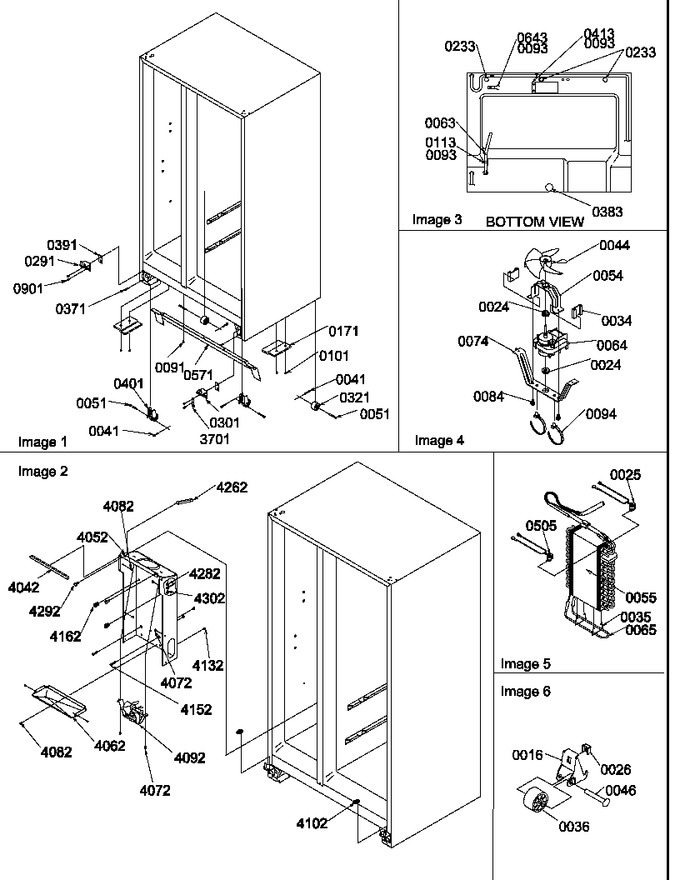

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | C8742401 | Assy, Roller Bracket |
|
- | |||||
| 24 | WP2264462 | Grommet (Replaces: A1017202) |
|
Immediately | $ 41.55 | ||||
| 25 | 12017817 | Kit, Defrost Thermostat |
|
- | |||||
| 26 | M0286708 | Nut, Speed |
|
$ 43.07 | |||||
| 34 | A1047901 | Shim |
|
- | |||||
| 35 | W11673433 | Clip, Evap Heater (Replaces: 10428101) |
|
$ 133.36 | |||||
| 36 | WP10450603 | Roller (Replaces: 10450602) |
|
Immediately | $ 7.44 | ||||
| 41 | M1200004 | Cotter Pin K |
|
- | |||||
| 44 | 12033101 | Fan-evap |
|
$ 35.30 | |||||
| 46 | M1205302 | Rivet |
|
$ 5.85 | |||||
| 51 | M1200202 | Pin K |
|
- | |||||
| 54 | C8881301 | Brkt Evap Fan |
|
- | |||||
| 55 | RO170065 | Low-side Assy |
|
- | |||||
| 63 | 10505101 | Tube, Drain |
|
- | |||||
| 64 | WP10513804 | Motor, Evap. (Replaces: C8891604) |
|
$ 231.08 | |||||
| 65 | WP10428406 | Heater, Evap. (230 Vac) (Replaces: 10428406) |
|
$ 90.29 | |||||
| 74 | D7767705 | Brkt, Mtr Shroud |
|
- | |||||
| 84 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 7.43 | ||||
| 91 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 7.56 | ||||
| 93 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 7.56 | ||||
| 94 | M0322202 | Tie Wire |
|
- | |||||
| 101 | WP3400094 | Screw (Replaces: M0253942) |
|
$ 8.33 | |||||
| 113 | M0102303 | Clamp |
|
- | |||||
| 171 | 10508001 | Support, Mach Comp. |
|
- | |||||
| 233 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 291 | 10496104 | Kit,hinge Lh Btm(b) |
|
- | |||||
| 301 | 10496112 | Kit,hinge Rh Btm(b) |
|
- | |||||
| 321 | WP10450603 | Roller (Replaces: 10450602) |
|
Immediately | $ 7.44 | ||||
| 371 | M0204339 | Screw Bolt K |
|
- | |||||
| 383 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 391 | 12187601 | Shim-bot Hinge |
|
- | |||||
| 401 | C8956101 | Assy, Roller Bracket |
|
- | |||||
| 413 | 10876901 | Brkt, Defrost Timer |
|
- | |||||
| 505 | R0161085 | Kit, Thermostat (Replaces: 12017811) |
|
$ 111.76 | |||||
| 571 | 10508105 | Baffle, Mach Air |
|
- | |||||
| 643 | M0585206 | Clip, Wire |
|
- | |||||
| 901 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 6.80 | |||||
| 3701 | 12146901 | Brkt-adj Hinge |
|
- | |||||
| 4042 | A3189362 | Gasket, Foam |
|
- | |||||
| 4052 | D7865812 | Evap. Shield |
|
- | |||||
| 4062 | D7850202 | Drip Tray Pnt. |
|
- | |||||
| 4072 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 7.43 | ||||
| 4082 | 10098801 | Rivet |
|
- | |||||
| 4092 | Y00000000 | See Note Evap Fn Mtr Assy -- (see Image 4 Page 16 & 17 For Assy Breakdown) |
|
- | |||||
| 4102 | R0181181 | Kit,dr Closure (Replaces: 12113501) |
|
Immediately | $ 6.80 | ||||
| 4132 | M0580002 | Grommet A |
|
- | |||||
| 4152 | 10527401 | Clip, Evap |
|
- | |||||
| 4162 | 10623003 | Clip, Evaporator |
|
- | |||||
| 4262 | B8386602 | Gasket |
|
- | |||||
| 4282 | M0272803 | Lock Washer |
|
- | |||||
| 4292 | M0580003 | Grommet |
|
- | |||||
| 4302 | WP489399 | Screw, Se (Replaces: M0232929) |
|
$ 6.57 |
