SELECT A DIAGRAM

01 - Cabinet Back


02 - Crushed Ice Bucket


03 - Drain And Rollers


04 - Evap And Air Handling


05 - Fz Door


06 - Fz Door


07 - Fz Shelving And Ref Light


08 - Ice And Water Cavity


09 - Ice Maker


10 - Machine Compartment


11 - Ref Door


12 - Ref Door Hinge And Trim


13 - Ref Shelving And Drawers


14 - Ref/fz Controls & Cabinet

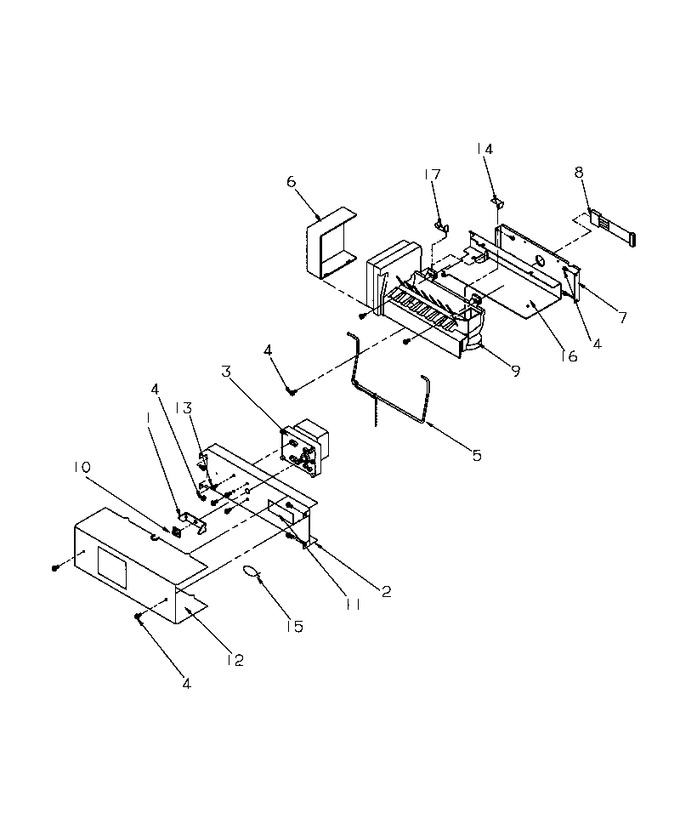

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7849501		Driver		Appelez-nous	-
2	D7749205		Support,auger Motor		Appelez-nous	-
3	D7847002		Motor - Auger		Appelez-nous	-
4	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
5	D7877001		Arm,ice Maker Shut Off		Appelez-nous	-
6	D7820401		Cover Im		Appelez-nous	-
7	D7821003		Support-im		Appelez-nous	-
8	D7843601		Harness, Im		Appelez-nous	-
9	WPW10190972		Ice Maker, (220 V 50 Hz)   (Replaces: D7846302)				$ 177.49
10	M0120501		Nut		Appelez-nous	-
11	A3030305		Gasket-per Ft		Appelez-nous	-
12	D7788808		Auger Motor Cover Pnt		Appelez-nous	-
13	WPW10139210		Screw, Tc   (Replaces: M0226528)				$ 8.03
14	B5720301		Clip		Appelez-nous	-
15	M0585203		Tie, Wire		Appelez-nous	-
16	D7846201		Shield Im		Appelez-nous	-
17	10526701		Clamp, Wire		Appelez-nous	-
NI	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
