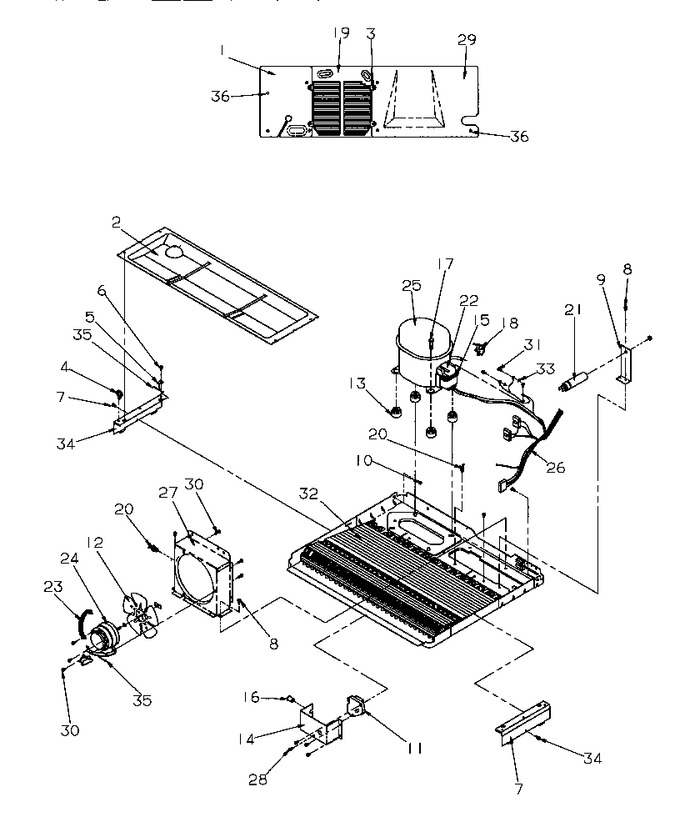

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10578804 | Ass`y, L. Mc Back |
|
- | |||||
| 2 | 10507902 | Pan, Drain |
|
- | |||||
| 3 | M0219704 | Screw |
|
- | |||||
| 4 | M0118703 | Clip, Guide |
|
- | |||||
| 5 | M0585601 | Tab, Wire Tie |
|
- | |||||
| 6 | M0213529 | Screw |
|
- | |||||
| 7 | A4539601 | Pop Rivet |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 7.43 | ||||
| 9 | 12021101 | Brkt, Capacitor |
|
- | |||||
| 10 | WP22002933 | Screw, Sm (Replaces: M0211357) |
|
$ 7.25 | |||||
| 11 | 10129307 | Kit, Defrost Timer (230 Vac) |
|
- | |||||
| 12 | 10518701 | Blade, Fan |
|
- | |||||
| 13 | WPW10169124 | Grommet, Compressor (Replaces: 10835901) |
|
$ 6.80 | |||||
| 14 | 10877003 | Bracket, Timer |
|
- | |||||
| 15 | 10899501 | Clamp, Term. Cover |
|
- | |||||
| 16 | A3293505 | Bushing-snap |
|
- | |||||
| 17 | M0221523 | Screw, Shldr |
|
- | |||||
| 18 | 10899601 | Overload/relay |
|
- | |||||
| 19 | 12039902 | Back, M.c. |
|
- | |||||
| 20 | M0585402 | Tie Wire |
|
- | |||||
| 21 | W10848274 | Capacitor (Replaces: 10958301) |
|
$ 167.27 | |||||
| 22 | 10899701 | Cover, Terminal |
|
- | |||||
| 23 | 10496501 | Kit,shroud/brkt Sound |
|
- | |||||
| 24 | D7846901 | Motor-condenser |
|
- | |||||
| 25 | W10309997 | Compressor (220/230 Vac 50hz) (Replaces: Y10740301) |
|
$ 525.54 | |||||
| 26 | 12025801 | Harness, Mc |
|
- | |||||
| 27 | 10602404 | Kit,shroud/brkt Sound |
|
- | |||||
| 28 | M0218118 | Screw |
|
- | |||||
| 29 | 12041702 | Assy, Mc Back |
|
- | |||||
| 30 | M0223803 | Screw |
|
- | |||||
| 31 | WP489128 | Screw (Replaces: M0253516) |
|
$ 10.26 | |||||
| 32 | 10580406 | Cond/pan Ass`y(e Ct) |
|
- | |||||
| 33 | M0272803 | Lock Washer |
|
- | |||||
| 34 | 10495701 | Bracket, Drain Pan Mtg. |
|
- | |||||
| 35 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 7.47 | |||||
| 36 | M0227217 | Screw, Sm |
|
- |
