SELECT A DIAGRAM

01 - Top And Cabinet, Literature

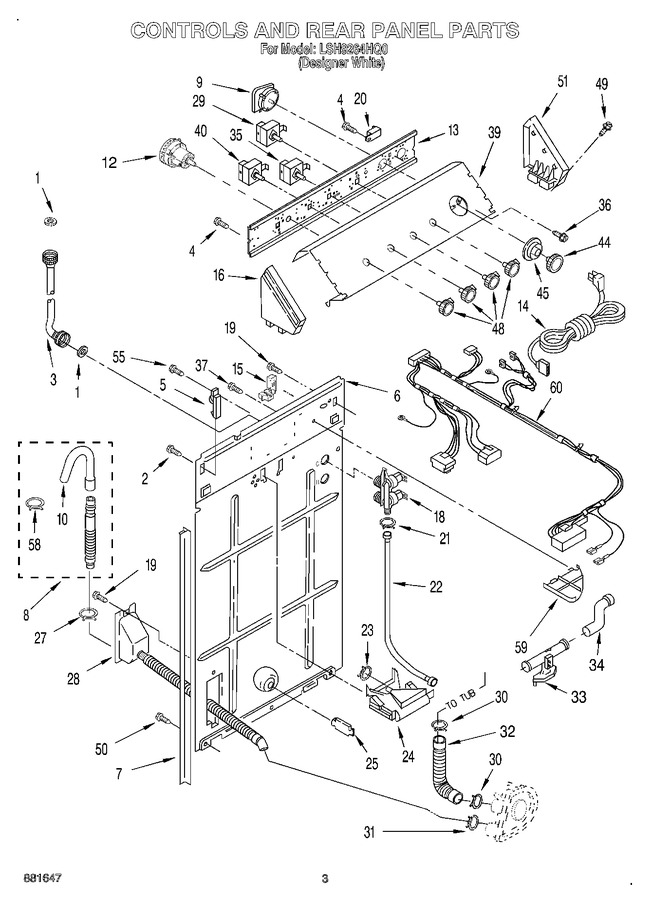

02 - Controls And Rear Panel


03 - Agitator, Basket And Tub


04 - Brake, Clutch, Gearcase, Motor And Pump


05 - Machine Base


06 - Wiring Harness


07 - Water System


08 - Brake And Drive Tube


09 - Gearcase


10 - Miscellaneous, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 7.34
2	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.57
3	WP89503		Hose, Water Inlet (2) (hose (inlet))   (Replaces: 3949374)			Immediately	$ 21.68
3	WP89503		Hose, Water Inlet (2) (hose (inlet))   (Replaces: 3949375)			Immediately	$ 21.68
4	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.43
5	387402		Hinge, Console (2)				$ 5.84
6	3357978		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 24.81
8	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 98.08
8	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 37.88
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 57.55
9	3954031		Timer, Control (60 Hz.) (motor Not A Service Part)		Appelez-nous	-
10	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 88.07
12	W10337780		Switch, Water Level   (Replaces: 3366847)			Immediately	$ 89.80
13	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 109.80
14	W10820044		Cord, Power   (Replaces: 3948063)				$ 134.88
15	3952821		Strain Relief, Power Cord		Appelez-nous	-
16	3358528		Cap, End (l.h.)		Appelez-nous	-
18	285805		Valve, Water Mixing   (Replaces: 3952164)			Immediately	$ 49.57
19	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 90864)			Immediately	$ 6.57
20	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 7.94
22	WP3357319		Hose, Vacuum Break   (Replaces: 3357319)				$ 25.71
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.94
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 45.41
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 17.87
27	WP356138		Clamp, Hose   (Replaces: 3366912)			Immediately	$ 7.67
28	WPW10358149		Hose, Drain Connector Asm.   (Replaces: 3361805)			Immediately	$ 43.34
29	WPW10168257		Switch, Cycle   (Replaces: 661613)				$ 126.00
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.72
31	WP285655		Clamp, Hose   (Replaces: 660628)			Immediately	$ 7.93
32	285871		Hose, Pump To Tub (includes No.30)   (Replaces: 3951449)			Immediately	$ 26.09
33	3352282		Sensor-etc-inline				$ 66.68
34	WP3349365		Hose, Sensor (upper)   (Replaces: 3349365)				$ 20.17
35	WPW10168262		Switch, Cycle   (Replaces: 3949187)				$ 122.63
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.93
37	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
39	3953190		Panel, Console		Appelez-nous	-
40	3950358		Switch, Water Temperature		Appelez-nous	-
44	W10807860		Knob, Timer   (Replaces: 3951026)			Immediately	$ 47.22
45	WP3957841		Dial, Timer   (Replaces: 3950762)				$ 42.86
48	WP3957796		Knob, Control   (Replaces: 3950759)			Immediately	$ 51.81
49	WP388326		Screw, Panel To Top   (Replaces: 388326)				$ 8.36
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.43
51	3358513		Cap, End (r.h.)		Appelez-nous	-
55	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.45
58	WP3357331		Clamp, Drain Hose   (Replaces: 3366913)				$ 7.37
59	3348424		Sheild, Suds		Appelez-nous	-
60	3954069		Harness, Wiring (for Detail See Parts Page)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
