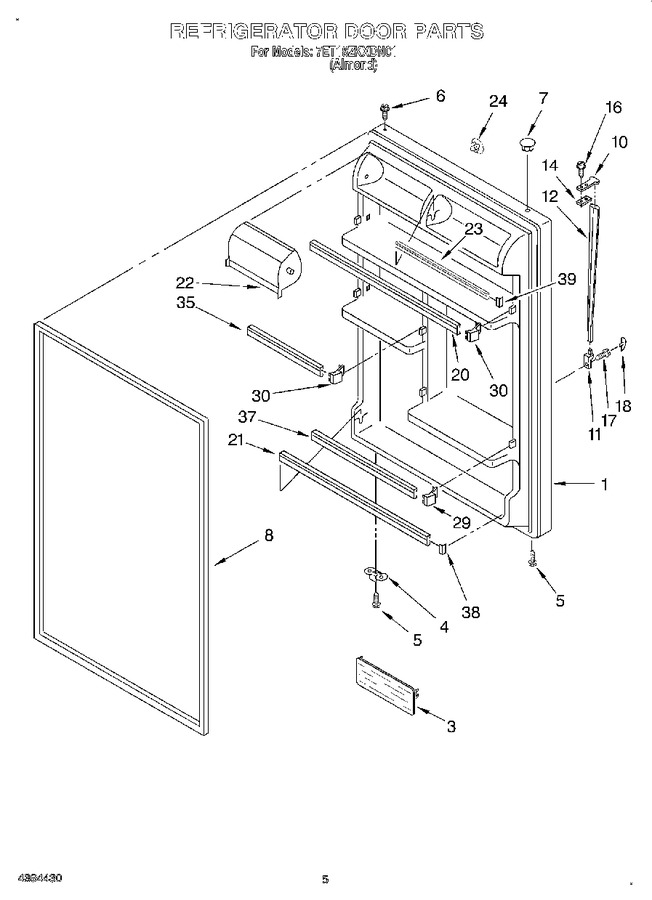

SELECT A DIAGRAM

01 - Cabinet


02 - Freezer Door


03 - Shelf


04 - Refrigerator Door


05 - Liner


06 - Unit, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2171030		Refrigerator Door (includes No.6 & No.8)		Appelez-nous	-
3	2159303		Shelf, Flip-up		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
7	989196		Hole Plug		Appelez-nous	-
8	2159057		Door Gasket, Magnetic			Immediately	$ 187.51
10	819342		Handle End   (Replaces: 9791772)			Immediately	$ 51.31
11	819342		Handle End, Side   (Replaces: 2183142)			Immediately	$ 51.31
12	2148036		Handle Center		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
18	9791770		Screw Cover		Appelez-nous	-
20	2171038		Trim, Door Shelf		Appelez-nous	-
21	2184570		Trim, Door Shelf		Appelez-nous	-
22	WP2218113		Door, Compartment   (Replaces: 2171036)			Immediately	$ 50.33
23	WP2201061		Trim, Door Shelf   (Replaces: 2171040)				$ 124.32
24	1122654		Hole Plug, Handle		Appelez-nous	-
29	2156001		Endcap, Trim (2)		Appelez-nous	-
30	WP2195915		Endcap, Trim (4)   (Replaces: 2156000)				$ 13.72
35	2171039		Trim, Door Shelf		Appelez-nous	-
37	2171041		Trim-door Shelf		Appelez-nous	-
38	WP2156006		Plug-trim (2)   (Replaces: 2156006)			Immediately	$ 12.79
39	WP2156007		Plug-trim (2)   (Replaces: 2156007)			Immediately	$ 8.03
