SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Lit/optional

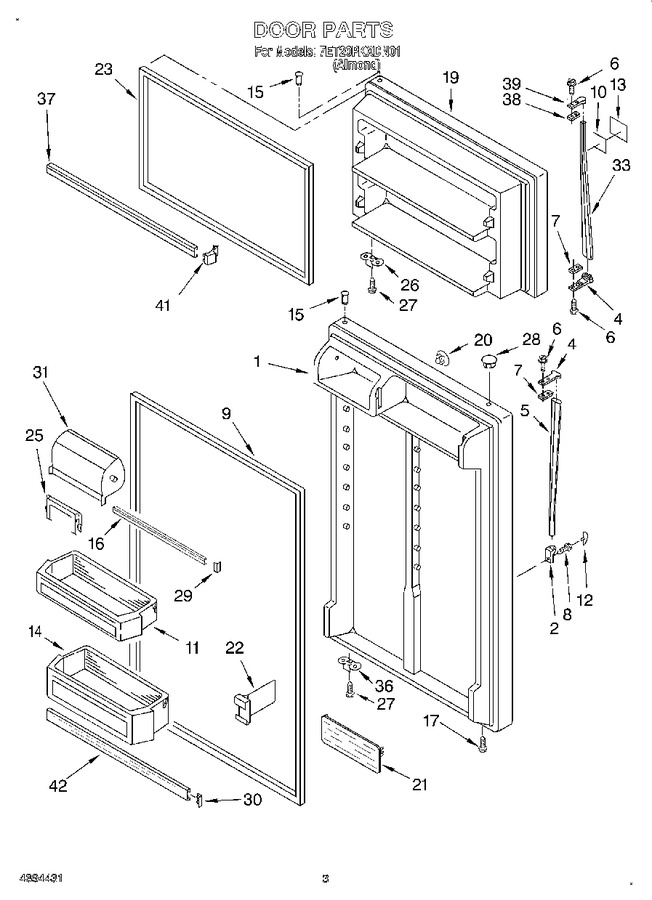

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159280		Refrigerator Door (includes No.9 & No.15)		Appelez-nous	-
2	819342		End Cap   (Replaces: 2183142)			Immediately	$ 51.31
4	819342		End Cap, Handle (2)   (Replaces: 9791772)			Immediately	$ 51.31
5	2148036		Handle Center		Appelez-nous	-
6	WP488920		Screw   (Replaces: 489006)				$ 7.98
7	943188		Spacer				$ 7.80
8	WP488729		Screw   (Replaces: 487909)			Immediately	$ 8.28
9	2159061		Door Gasket, Magnetic			Immediately	$ 183.67
10	991259		Tape		Appelez-nous	-
11	2170616		Door Bin, Narrow		Appelez-nous	-
12	9791770		Cover, Screw		Appelez-nous	-
13	2175384		Nameplate		Appelez-nous	-
14	2170615		Door Bin, Wide		Appelez-nous	-
15	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
16	WP2201061		Trim, Door Shelf   (Replaces: 2171150)				$ 124.32
17	WP8281206		Screw   (Replaces: 489028)				$ 8.37
19	2184400		Freezer Door (includes No.15 & No.23)		Appelez-nous	-
20	1122654		Hole Plug		Appelez-nous	-
21	WP2188236		Shelf, Flip-up   (Replaces: 2159304)				$ 64.38
22	2152335		Divider-door Bin		Appelez-nous	-
23	2159060		Door Gasket, Magnetic				$ 336.01
25	2163566		Retainer, Bottle		Appelez-nous	-
26	W11745278		Bracket, Door Stop   (Replaces: 2183805)			Immediately	$ 13.37
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
28	989196		Hole Plug		Appelez-nous	-
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
30	2159300		Plug-trim				$ 4.83
31	WP2218118		Compartment Door   (Replaces: 2177130)				$ 81.92
33	2171044		Handle, F.c.		Appelez-nous	-
36	944035		Bracket, Door Stop		Appelez-nous	-
37	2171153		Trim-door (2)		Appelez-nous	-
38	943187		Shim				$ 25.14
39	819342		Handle End   (Replaces: 9791777)			Immediately	$ 51.31
41	WP2195916K		Endcap (4)   (Replaces: 2156002)			Immediately	$ 13.18
42	2171148		Trim, Door		Appelez-nous	-
