SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Lit/optional


07 - Icemaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

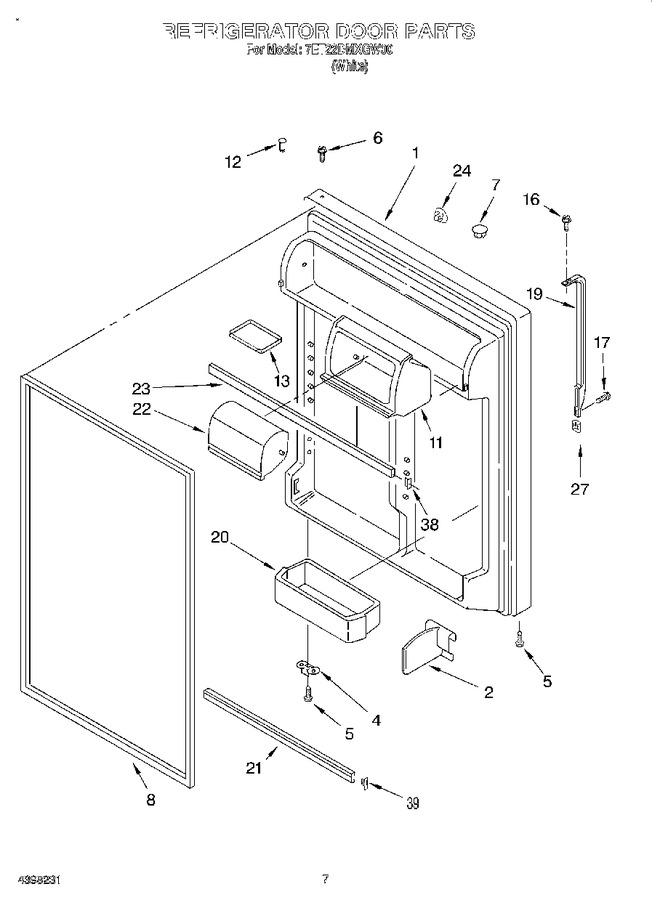

1	2183868		Refrigerator Door (includes No.8 & No.12)		Appelez-nous	-
2	1123293		Divider, Door Bin		Appelez-nous	-
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.42
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 7.53
7	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 7.37
8	2159061		Door Gasket, Magnetic (mist Beige)			Immediately	$ 165.30
11	2156062		Housing Compartment		Appelez-nous	-
12	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
13	2195388		Tray, Door		Appelez-nous	-
16	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
17	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.45
19	4388947		Handle   (Replaces: 2193351W)				$ 184.02
20	WP2204813		Bin, Door Shelf (3)   (Replaces: 2179606)			Immediately	$ 73.08
21	2195498		Trim, Door Shelf		Appelez-nous	-
22	2182400		Door, Compartment		Appelez-nous	-
23	2159306		Trim, Door Shelf				$ 53.20
24	WP2189000		Hole Plug, Handle   (Replaces: 2189000)			Immediately	$ 6.99
27	WP2193353W		Cover, Endcap   (Replaces: 2193353W)				$ 7.67
38	2177340		Endcap, Door Trim				$ 5.84
39	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
100	2199049		Featurepak (includes 2,11, 20,21,22,23,39) Also See Frz.dr. & Shelf Pages.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
