| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3954157 | Literature Parts (energy Guide) |
|
- | |||||
| 1 | LIT3952874 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT3405970 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT3401098 | Literature Parts (use & Care Guide) |
|
- | |||||

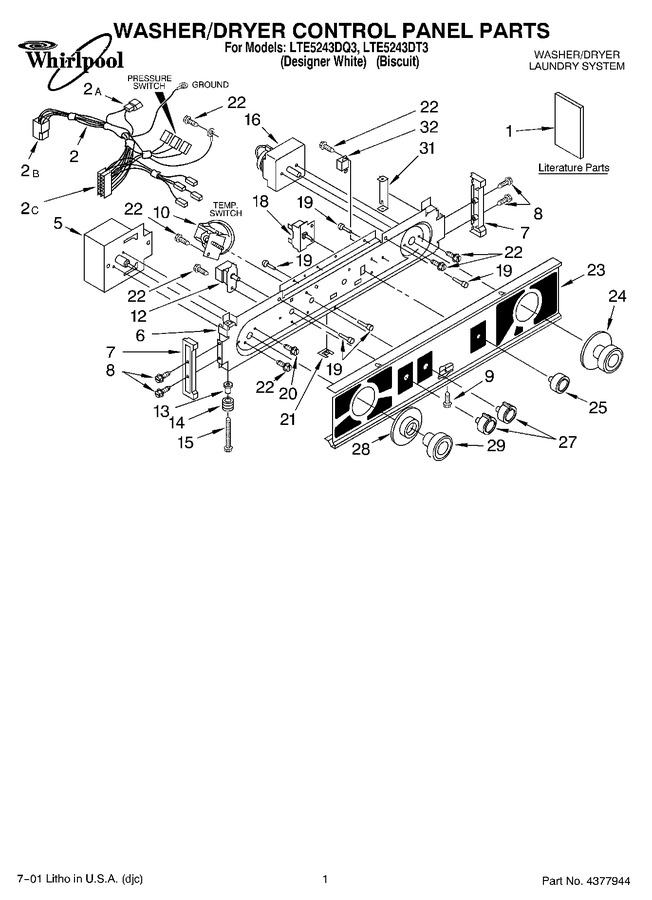

| 2 | WP3406288 | Harness, Console Wiring (automatic) (includes Illus. 2a, 2b & 2c) (Replaces: 3406288) |
|
$ 208.45 | |||||
| 5 | WP3952499 | Timer, Control (60 Hz.) (automatic Washer) (Replaces: 3952499) |
|
Immediately | $ 398.60 | ||||
| 6 | 8528154 | Bracket, Control |
|
- | |||||
| 7 | 692993 | End Cap, Console (l.h. & R.h.) (white) |
|
$ 34.71 | |||||
| 7 | 3978584 | End Cap, Console (l.h. & R.h.) (biscuit) |
|
- | |||||
| 8 | 348689 | Screw, End Cap Mounting (4) (8-18 X 3/4) |
|
$ 70.26 | |||||
| 9 | WP694091 | Screw, Mounting (2) (8-18 X 3/8) (Replaces: 694091) |
|
$ 6.80 | |||||
| 10 | WP3362987 | Switch, Water Level (Replaces: 3362987) |
|
Immediately | $ 169.07 | ||||
| 12 | WP8054142 | Switch, Water Temperature (Replaces: 8054142) |
|
Immediately | $ 126.00 | ||||
| 13 | 693711 | Sleeve, Console Lock Screw (2) |
|
$ 7.72 | |||||
| 14 | WP693151 | Spring, Console Lock (2) (Replaces: 693151) |
|
$ 7.06 | |||||
| 15 | WP3400860 | Screw, Console Lock (2) (Replaces: 3400860) |
|
$ 10.38 | |||||
| 16 | WP3406720 | Timer, Control (60 Hz.) (dryer) (timer Motor Not Serviceable) (Replaces: 3406720) |
|
Immediately | $ 296.95 | ||||
| 18 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 23.99 | ||||
| 19 | 693152 | Bumper, Console (5) |
|
$ 10.36 | |||||
| 21 | 694037 | Clip, Console |
|
$ 77.85 | |||||
| 22 | WPW10139210 | Screw, Dryer Timer Mounting (8-18 X 5/16) (Replaces: 3390646) |
|
$ 7.23 | |||||
| 23 | 3977194 | Panel, Control (white) |
|
$ 250.35 | |||||
| 23 | 3977195 | Panel, Control (biscuit) |
|
- | |||||
| 24 | 3957753 | Knob, Timer (dryer) (biscuit) (Replaces: 3978872) |
|
- | |||||
| 24 | WP3957752 | Knob, Timer (dryer) (white) (Replaces: 3406143) |
|
$ 50.99 | |||||
| 25 | 3978871 | Knob, Push-to-start (biscuit) |
|
- | |||||
| 25 | WP3957800 | Knob, Push-to-start (white) (Replaces: 3406133) |
|
$ 47.63 | |||||
| 27 | 3978873 | Knob, Control (2) (biscuit) |
|
$ 9.68 | |||||
| 27 | WP3957796 | Knob, Control (2) (white) (Replaces: 3950759) |
|
Immediately | $ 51.81 | ||||
| 28 | WP3957841 | Dial, Timer (washer) (white) (Replaces: 3950762) |
|
$ 42.86 | |||||
| 28 | 3978870 | Dial, Timer (washer) (biscuit) |
|
- | |||||
| 29 | W10807860 | Knob, Timer (washer) (white) (Replaces: 3951026) |
|
Immediately | $ 47.22 | ||||
| 29 | WP3957822 | Knob, Timer (washer) (biscuit) (Replaces: 3978869) |
|
Immediately | $ 50.47 | ||||
| 31 | WP692983 | Lock, Console (2) (Replaces: 692983) |
|
$ 80.40 | |||||
| 32 | WP694419 | Buzzer (Replaces: 694419) |
|
$ 120.65 | |||||
| 2a | 335013 | Plug, Terminal (2-way) (connects With Main Dryer Harness) |
|
- | |||||
| 2b | 69607 | Receptacle, Connector (connects With Lower Automatic Harness) |
|
- | |||||
| 2c | 394861 | Disconnect Block (connects With Automatic Timer) |
|
- |
