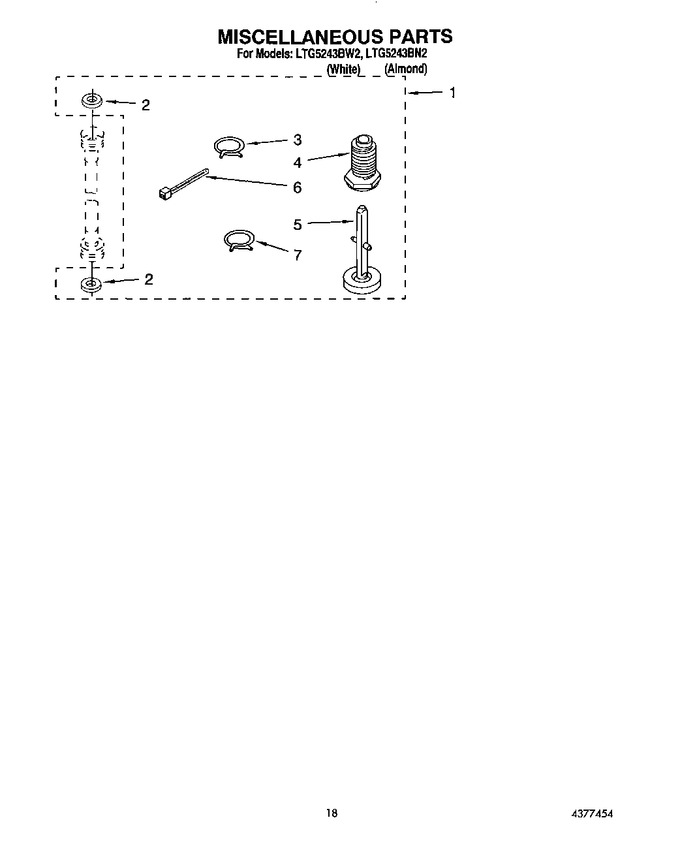

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10112403 | Miscellaneous Parts Bag (Replaces: 3359934) |
|
$ 40.39 | |||||
| 2 | WP16123 | Washer, Inlet Hose (4) (Replaces: 16123) |
|
$ 7.34 | |||||
| 3 | WP285655 | Clamp, Hose (Replaces: 370445) |
|
Immediately | $ 7.93 | ||||
| 4 | WP367594 | Foot, Front (2) (Replaces: 367594) |
|
Immediately | $ 19.39 | ||||
| 5 | WP358594 | Foot, Rear (2) (Replaces: 358594) |
|
$ 12.85 | |||||
| 6 | WPW10339879 | Tie, Cable (Replaces: 3347868) |
|
$ 7.47 | |||||
| 7 | WP3357331 | Clamp, Hose (upper Drain) (Replaces: 3357331) |
|
$ 7.37 | |||||
| 285208 | Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin) |
|
$ 41.86 | ||||||
| WP285195 | Sealer, Gasket (20 Fl. Oz.) (6 Ml) (Replaces: 285195) |
|
Immediately | $ 98.65 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | ||||||
| LIT3395327 | Instructions, Installation |
|
- | ||||||
| LIT3396312 | Guide, Use & Care |
|
- | ||||||
| LIT3399986 | Label, Wiring Diagram |
|
- | ||||||
| LIT3397739 | Tag, Energy Guide |
|
- | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 692790 | Plug, Dryer Side Panel (white) |
|
$ 77.61 | ||||||
| 692791 | Plug, Dryer Side Panel (almond) |
|
- | ||||||
| 350572 | Oil, Gearcase (16 Oz.) |
|
Immediately | $ 86.57 | |||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 48.61 |
