View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

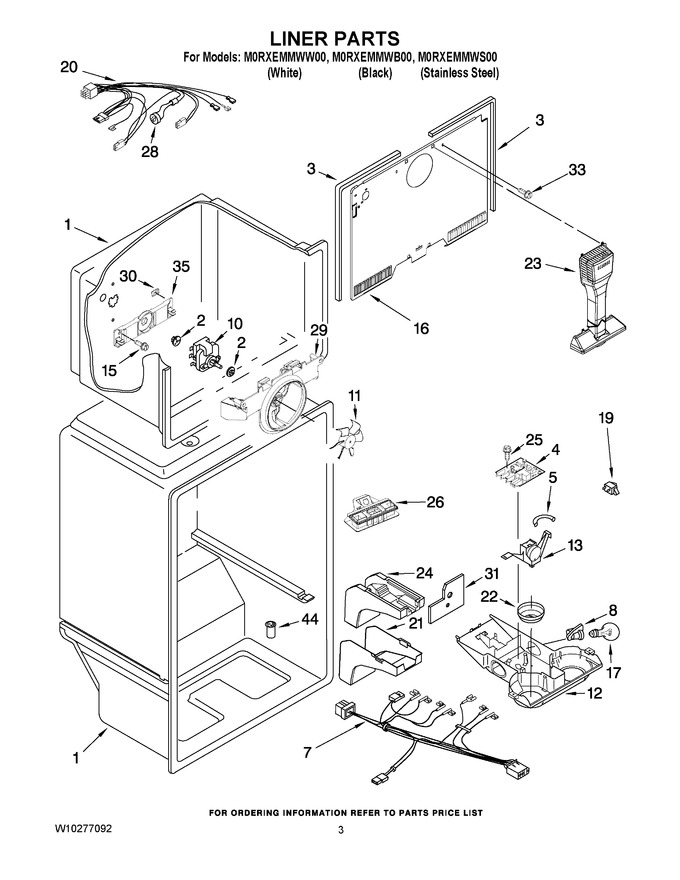

01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Refrigerator Door Parts
05 - Unit Parts
06 - Icemaker Parts
07 - Freezer Door Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 41.55 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (2) (Replaces: 2254359) |
|
$ 25.31 | |||||
| 4 | WP2304099 | Timer, Defrost (Replaces: 2304099) |
|
Immediately | $ 266.62 | ||||
| 5 | WP2196003 | Thermostat Tube, Barrier (Replaces: 2204640) |
|
$ 7.52 | |||||
| 7 | 2310077 | Wire Assembly, Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 10 | WP2315539 | Fan Motor (Replaces: 2315539) |
|
Immediately | $ 88.26 | ||||
| 11 | WP2163777 | Fan Blade (Replaces: 2163777) |
|
Immediately | $ 96.85 | ||||
| 12 | W10268271 | Control Box |
|
- | |||||
| 13 | WP2204605 | Thermostat (Replaces: 2225460) |
|
Immediately | $ 89.89 | ||||
| 15 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 16 | W10252320 | Cover, Evaporator |
|
- | |||||
| 17 | W10887190 | Light Bulb (2) (Replaces: 2160708) |
|
Immediately | $ 17.31 | ||||
| 19 | W11384469 | Rocker Arm (2) Switch (Replaces: 1118894) |
|
Immediately | $ 35.18 | ||||
| 20 | W10129799 | Wire Assembly, Freezer Compartment (includes Illus. 28) |
|
- | |||||
| 21 | 2176281 | Cover, Air Diffuser |
|
$ 41.64 | |||||
| 22 | WP2202885 | Knob, Thermostat (Replaces: 2202885) |
|
$ 24.93 | |||||
| 23 | WP2254354 | Air Tower (Replaces: 2254354) |
|
$ 97.42 | |||||
| 24 | WP2189452 | Air Diffuser, Bottom (Replaces: 2189452) |
|
Immediately | $ 117.93 | ||||
| 25 | 8534009 | Screw |
|
- | |||||
| 26 | 2212439 | Air Separator Assembly |
|
- | |||||
| 28 | WP2321800 | Defrost, Bi-metal (Replaces: 2321800) |
|
Immediately | $ 114.22 | ||||
| 29 | 2254453 | Bracket Fan Motor |
|
$ 45.87 | |||||
| 30 | 2320183 | Retainer-screw |
|
- | |||||
| 31 | 2204639 | Shield, Heat |
|
- | |||||
| 33 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 35 | 2254454 | Bracket, Evap. Fan, Rear |
|
Immediately | $ 67.90 | ||||
| 44 | WP2210509 | Valve (Replaces: 2210509) |
|
$ 89.24 |
