SELECT A DIAGRAM

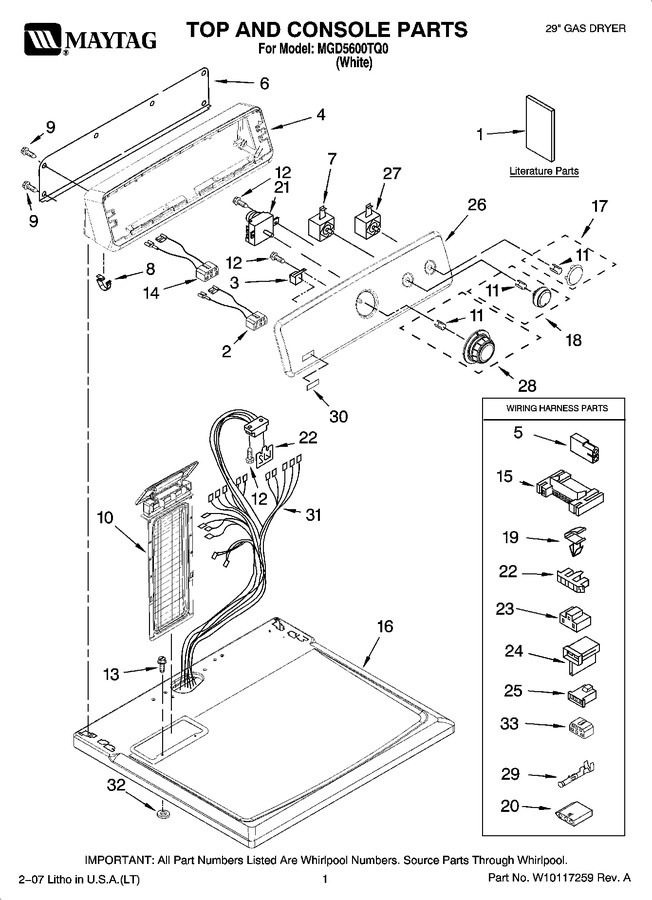

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318272 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10089170 | Sheet, Cycle Feature |
|
- | |||||
| 1 | W10088775 | Use & Care Guide |
|
- | |||||
| 1 | 8528190 | Wiring Diagram |
|
- | |||||
| 2 | W10113080 | Wire, Jumper Mini-buzzer |
|
- | |||||
| 3 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 120.65 | |||||
| 4 | 8579716 | Shell Console (includes Item:8) |
|
- | |||||
| 5 | 717252 | Plug, 2-way Terminal |
|
- | |||||
| 6 | W10112576 | Panel, Rear Console |
|
$ 61.99 | |||||
| 7 | WP3399639 | Switch, Temperature (Replaces: 3399639) |
|
Immediately | $ 118.04 | ||||
| 8 | WP8312709 | Clip-console (2) (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 9 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 10 | W11778253 | Screen, Lint (Replaces: 8565972) |
|
Immediately | $ 49.17 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | W10110861 | Wire, Jumper (temperature) |
|
- | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 49.01 | ||||
| 16 | 8579698 | Top |
|
- | |||||
| 17 | WPW10110029 | Knob, Push-to-start (Replaces: W10110032) |
|
$ 49.87 | |||||
| 18 | WPW10110029 | Knob, Control (1) (Replaces: W10110029) |
|
$ 49.87 | |||||
| 19 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 20 | 3936144 | Connector |
|
$ 19.10 | |||||
| 21 | WP8299765 | Timer Assembly (60 Hz.) (Replaces: 8299765) |
|
$ 302.97 | |||||
| 22 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 23 | 3401144 | Connector, (pts Relay) |
|
$ 11.53 | |||||
| 24 | WP3403499 | Connector, 2-position Gas Valve (Replaces: 3403499) |
|
$ 5.42 | |||||
| 25 | WP3403498 | Connector, 3-position (gas Valve) (Replaces: 3403498) |
|
$ 6.57 | |||||
| 26 | W10086704 | Panel-control (includes Item:30) |
|
- | |||||
| 27 | WPW10117655 | Switch, Push-to-start (Replaces: W10117655) |
|
Immediately | $ 77.04 | ||||
| 28 | W10110030 | Timer Knob Assembly |
|
$ 26.39 | |||||
| 29 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.25 | |||||
| 30 | W10203949 | Badge Assembly (Replaces: W10112569) |
|
$ 64.84 | |||||
| 31 | W10110866 | Harness, Wiring |
|
- | |||||
| 32 | 237446 | Washer (top/chute) |
|
- | |||||
| 33 | 3347243 | Connector 6-circuit |
|
- |
