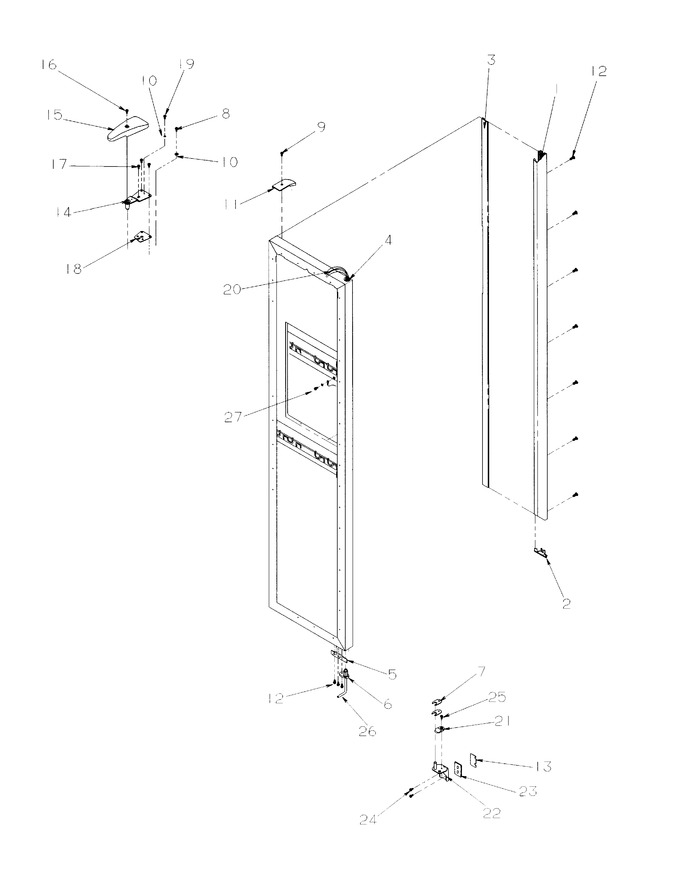

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10875717 | Handle, Frz Dr (white) |
|
- | |||||
| 2 | 10871202 | Cap-w Fz Hndl Bot. |
|
- | |||||
| 3 | 10945917 | Insert, W Handle |
|
- | |||||
| 4 | WP67004977 | Bushing, Top (Replaces: C8964401) |
|
$ 7.38 | |||||
| 5 | C8972405 | Stop-w Door |
|
- | |||||
| 6 | R0181181 | Kit,dr Closure (Replaces: D7751401) |
|
Immediately | $ 6.80 | ||||
| 7 | B8387702 | Shim, Door Closure |
|
- | |||||
| 7 | B8387701 | Shim, Door Closure |
|
- | |||||
| 8 | M0232330 | Screw, Spextite |
|
- | |||||
| 9 | M0213517 | Screw K |
|
- | |||||
| 10 | M0272803 | Lock Washer |
|
- | |||||
| 11 | 10871102 | Cap-w Fz Hndl Top |
|
- | |||||
| 12 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 7.71 | |||||
| 13 | 10860201 | Kit, Bot.hinge Shim |
|
- | |||||
| 14 | 10495803 | Hinge, Top (e-ct) |
|
- | |||||
| 15 | 10849401 | Cover W Hinge |
|
- | |||||
| 16 | WP8281196 | Screw, Mach (Replaces: M0202336) |
|
Immediately | $ 6.80 | ||||
| 17 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 9.52 | |||||
| 18 | B8389001 | Shim, Top Hinge |
|
- | |||||
| 19 | W11214483 | Screw, Mach (Replaces: M0202321) |
|
Immediately | $ 13.25 | ||||
| 20 | 12053601 | Harness Frz Dr |
|
- | |||||
| 21 | R0181181 | Kit,dr Closure (Replaces: D7748301) |
|
Immediately | $ 6.80 | ||||
| 22 | 10496107 | Kit,hinge Lh Btm(w) |
|
- | |||||
| 23 | 10399502 | Kit,btm Hinge Shim |
|
- | |||||
| 23 | 10399501 | Kit,btm Hinge Shim |
|
- | |||||
| 24 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 6.80 | |||||
| 25 | W11227370 | Screw, Lock Brake Mounting (Replaces: M0220418) |
|
Immediately | $ 13.42 | ||||
| 26 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 11.75 | |||||
| 27 | WP489399 | Screw, Se (Replaces: M0232929) |
|
$ 6.57 |
