SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls And Cabinet


03 - Crushed Ice Bucket


04 - Door Hinge And Trim


05 - Drain And Rollers


06 - Evaperator And Air Handler


07 - Fz Door


08 - Fz Door


09 - Fz Shelving


10 - Ice And Water Cavity


11 - Ice Maker


12 - Machine Compartment


13 - Ref Door


14 - Shelving And Drawers

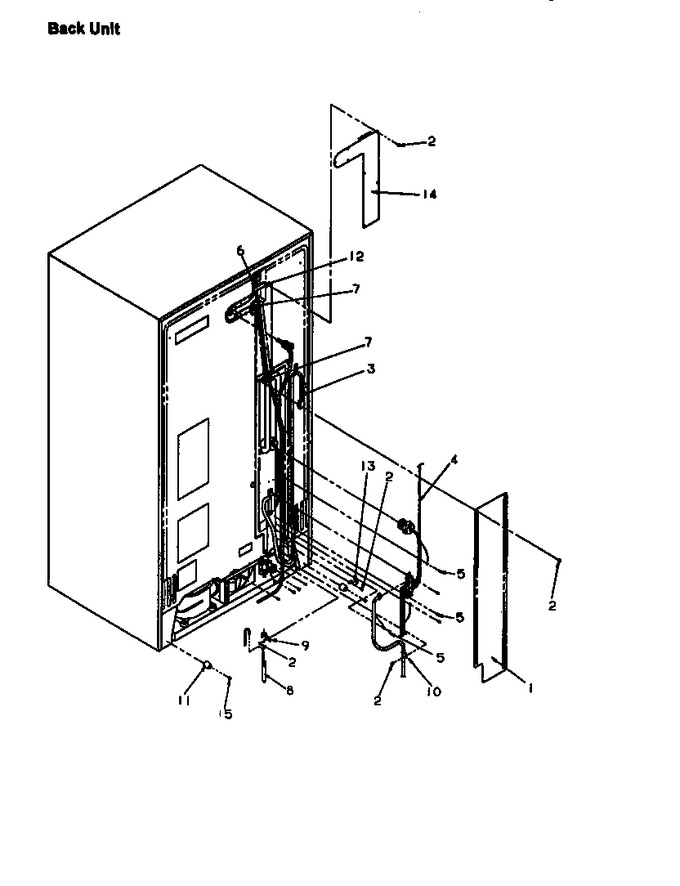

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B0523562		Insul. By The Ft.		Appelez-nous	-
2	C8982801		Retainer, Door Liner		Appelez-nous	-
3	10881205W		Ass`y, Fz Dr Foam		Appelez-nous	-
4	10534707		Shelf, Half Frz		Appelez-nous	-
5	10525507		Shelf, Frz Dr		Appelez-nous	-
6	10359702		Gasket (w Frz Dr)		Appelez-nous	-
7	10860801		Liner, Frz Dr I/w		Appelez-nous	-
8	D7828601		Retainer, Door Liner		Appelez-nous	-
9	M0219730		Screw				$ 7.65
10	10063102		Clip, Door Dike		Appelez-nous	-
11	10063207		Dike, I & W		Appelez-nous	-
12	B0523563		Insulation Ft. K		Appelez-nous	-
13	10063208		Dike, I & W		Appelez-nous	-
14	10882201		Insul, Batt (ref. Door)		Appelez-nous	-
15	10882202		Insul, Batt (ref. Door)		Appelez-nous	-
16	10237602		Retainer, Package		Appelez-nous	-
17	10281002		Grommet, Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
