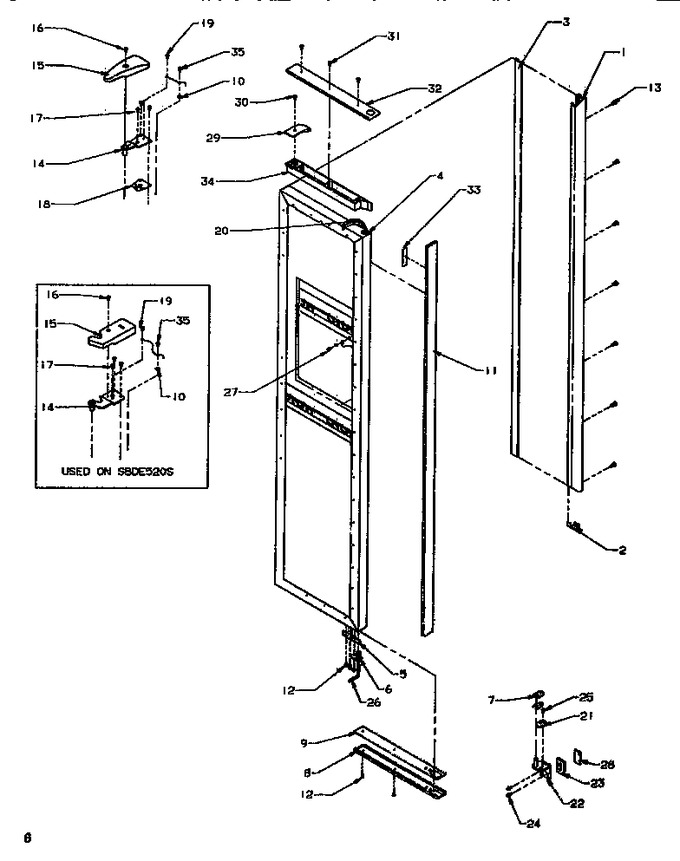

04 - Door/hinge/trim Fz


05 - Door/hinge/trim Ref


06 - Drain & Rollers


07 - Evap & Air Handling


08 - Fz Door


09 - Fz Shelving & Ref Light


10 - Ice & Water Cavity


11 - Icemaker


12 - Machine Compartment


13 - Ref Door


14 - Shelving & Drawers (ref)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10875717		Handle, Frz Dr (white)		Appelez-nous	-
2	10871202		Cap-w Fz Hndl Bot.		Appelez-nous	-
3	10945917		Insert, W Handle		Appelez-nous	-
4	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 7.38
5	C8972403		Stop, Door (blk)		Appelez-nous	-
5	C8972405		Stop-w Door		Appelez-nous	-
6	R0181181		Kit,dr Closure   (Replaces: D7751401)			Immediately	$ 6.80
7	B8387702		Shim, Door Closure		Appelez-nous	-
7	B8387701		Shim, Door Closure		Appelez-nous	-
10	M0272803		Lock Washer		Appelez-nous	-
11	10494506		Trim, Vertical		Appelez-nous	-
12	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.71
13	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.71
14	10495803		Hinge, Top (e-ct)		Appelez-nous	-
15	10849401		Cover W Hinge		Appelez-nous	-
16	WP8281196		Screw, Mach   (Replaces: M0202336)			Immediately	$ 6.80
17	R9800670		Kit, Screw   (Replaces: M0226331)				$ 9.52
19	W11214483		Screw, Mach   (Replaces: M0202321)			Immediately	$ 13.25
20	10969101		Harness Frz Dr		Appelez-nous	-
21	R0181181		Kit,dr Closure   (Replaces: D7748301)			Immediately	$ 6.80
21	R0181181		Kit,dr Closure   (Replaces: D7748302)			Immediately	$ 6.80
22	10496107		Kit,hinge Lh Btm(w)		Appelez-nous	-
23	10399502		Kit,btm Hinge Shim		Appelez-nous	-
23	10399501		Kit,btm Hinge Shim		Appelez-nous	-
24	WP67006715		Screw   (Replaces: M0233847)				$ 6.80
25	W11227370		Screw, Lock Brake Mounting   (Replaces: M0220418)			Immediately	$ 13.42
26	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 11.75
27	WP489399		Screw   (Replaces: M0232903)				$ 6.57
28	10860201		Kit, Bot.hinge Shim		Appelez-nous	-
29	10871102		Cap-w Fz Hndl Top		Appelez-nous	-
30	M0213517		Screw K		Appelez-nous	-
35	M0232330		Screw, Spextite		Appelez-nous	-
	NOTE:		R134a Refrigerant System: This Refrigeration System Incorporates R134a Refrigerant And Approved Service Techniques And Equipment Should Be Applied If Sealed S		Appelez-nous	-
