Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10871403 Cap-e Hndl Bot Appelez-nous -
2 M0213517 Screw K Appelez-nous -
3 10875801 Clip-handle Appelez-nous -
4 10185101 Top Hinge-e Ct Appelez-nous -
5 10849503 Cover-e Hinge Appelez-nous -
6 W11214483 Screw, Mach   (Replaces: M0202321) In-Stock Immediately $ 13.25

7 WP8281196 Screw-mach   (Replaces: M0202327) In-Stock Immediately $ 6.80

8 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 9.52

9 10866001 Board-lv Pc Appelez-nous -
10 10561601 Assy, Hinge Pin Appelez-nous -
11 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 7.38

12 10161805 Stop-black Door Appelez-nous -
13 R0181181 Closure, Door (ebony)   (Replaces: D7833202) In-Stock Immediately $ 6.80

14 D7838402 Closure, Door (ebony) Appelez-nous -
15 10969203 Harness-ref Dr Kit Appelez-nous -
16 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 7.71

17 M0217204 Screw Appelez-nous -
18 M0335411 Connector-12 Pin Appelez-nous -
19 10399501 Kit,btm Hinge Shim Appelez-nous -
19 10399502 Kit,btm Hinge Shim Appelez-nous -
20 10875503 Handle-e Ref Dr Appelez-nous -
21 10163615 Hinge, Bottom Appelez-nous -
22 WP67006715 Screw   (Replaces: M0233847) Special Order $ 6.80

23 W11227370 Screw, Lock Brake Mounting   (Replaces: M0220418) In-Stock Immediately $ 13.42

24 10945903 Insert, E Handle Appelez-nous -
25 M0310308 Plug, Button (wht) Appelez-nous -
26 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 7.71

27 10860201 Kit, Bot.hinge Shim Appelez-nous -
28 WP67005716 Shim, Dr Closure (blk)   (Replaces: B8387704) Special Order $ 7.05

28 B8387703 Shim, Door Closure Appelez-nous -
29 10871303 Cap- E Hndl Top Appelez-nous -
30 B8389004 Shim, Top Hinge Appelez-nous -
31 10887802 Gasket-control Appelez-nous -
32 M0272803 Lock Washer Appelez-nous -
33 M0232330 Screw, Spextite Appelez-nous -
34 R0150126 Assy, Keybd-blk Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

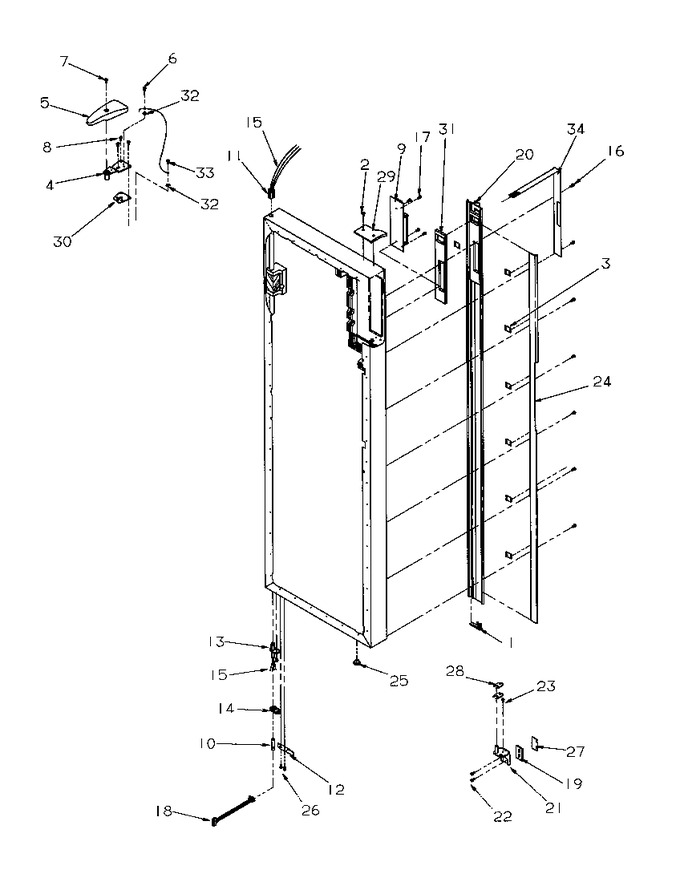

Diagram for SRDE528SBW (BOM: P1184902W W)
