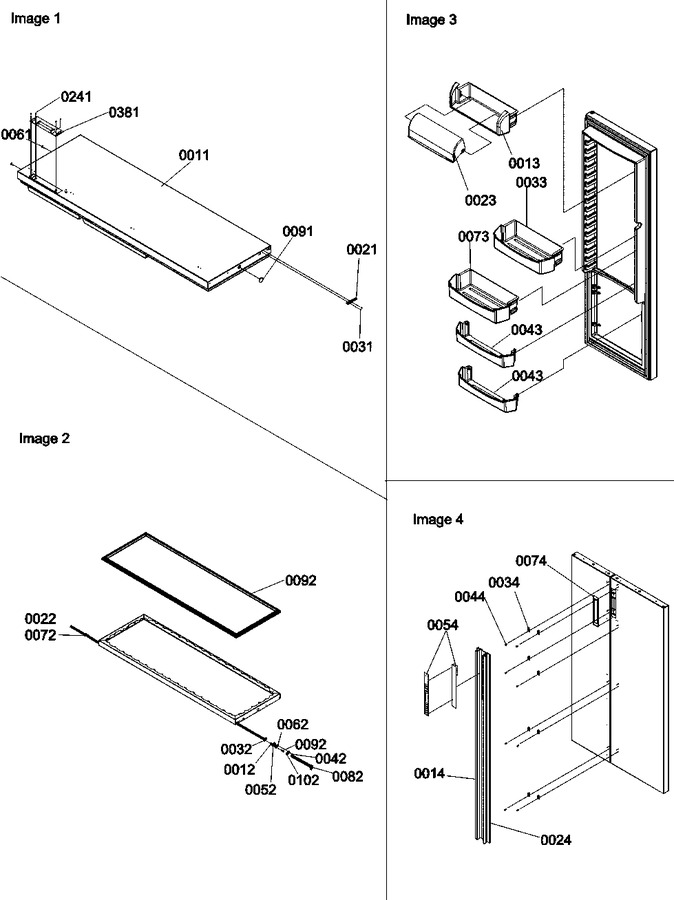

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 12319702W | Assy, Ref Door (white) Sxs |
|
- | |||||
| 12 | B8390602 | Grommet, Hinge Pin |
|
- | |||||
| 13 | 12308603 | Frame, Dairy |
|
$ 26.46 | |||||
| 14 | 12438905 | Handle, Frz Door (white) |
|
- | |||||
| 21 | C8972409 | Stop, Door (wht) |
|
- | |||||
| 22 | B8381402 | Grommet, Hinge Pin |
|
- | |||||
| 23 | 12308701 | Door, Dairy |
|
- | |||||
| 24 | 12442601 | Handle, Ref Door (white) |
|
- | |||||
| 31 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 7.71 | |||||
| 32 | 10361803 | Shim, Dr Bushing |
|
$ 5.51 | |||||
| 33 | 12309510 | Bucket, Ref Door |
|
- | |||||
| 34 | 12315101 | Clip |
|
- | |||||
| 42 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 7.71 | |||||
| 43 | 12311206 | Shelf, Ref Door |
|
$ 30.51 | |||||
| 44 | WP489399 | Screw, Se (Replaces: M0232929) |
|
$ 6.57 | |||||
| 52 | 12113401 | Closure, Door (wht) |
|
- | |||||
| 54 | R0150108 | Assy, Keyboard (white) |
|
- | |||||
| 61 | M0311605 | Plug, Button (wht) |
|
- | |||||
| 62 | 12113301 | Closure, Door (wht) |
|
- | |||||
| 72 | WP67004977 | Bushing, Top (Replaces: C8964401) |
|
$ 7.38 | |||||
| 73 | 12309511 | Bucket, Ref Door |
|
$ 39.49 | |||||
| 74 | 12414301 | Gasket, Control |
|
- | |||||
| 82 | M0335412 | Connector-12 Pin |
|
- | |||||
| 91 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 92 | 10561601 | Assy, Hinge Pin |
|
- | |||||
| 92 | R9800046 | Assy,ref Dr Gasket(white) |
|
- | |||||
| 102 | 10361801 | Shim, Dr Bushing |
|
- | |||||
| 241 | M0217204 | Screw |
|
- | |||||
| 381 | 10866002 | Board-lv Pc X |
|
- | |||||
| NOTE: | Note: Ref Dr Foam Assy Includes The Liner, Gasket, Harness Ref Dr Plus Items 0042 & 0072. |
|
- | ||||||
| NI | 12310201 | Retainer, Ref Bucket |
|
- |
