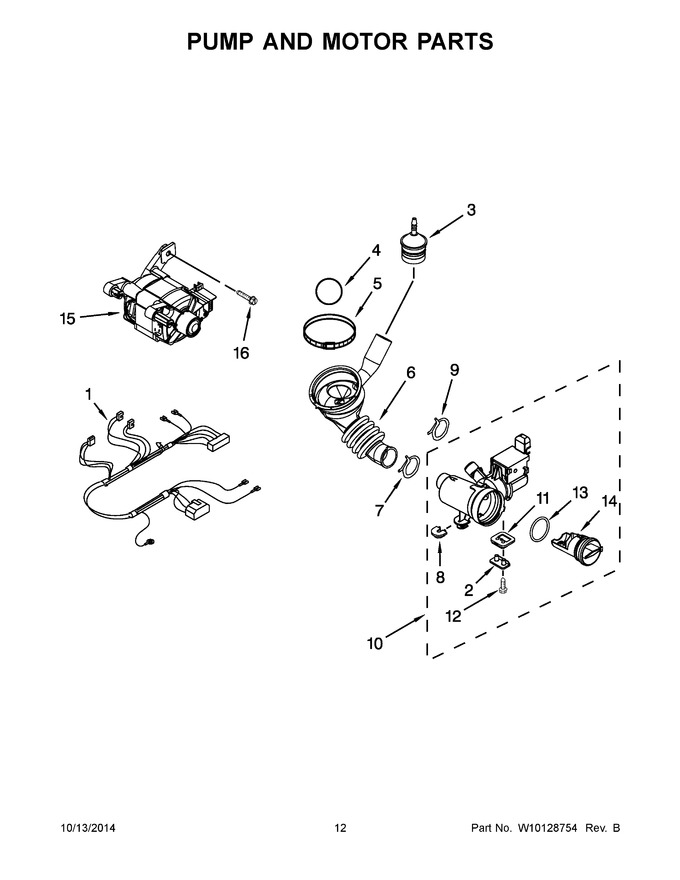

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10166995 | Harness, Motor (Replaces: 8540704) |
|
$ 160.88 | |||||
| 2 | 8540033 | Cap, Lock Foot |
|
$ 16.99 | |||||
| 3 | WPW10405608 | Air Trap (Replaces: 8540180) |
|
Immediately | $ 7.12 | ||||
| 4 | 8540013 | Ball |
|
$ 20.12 | |||||
| 5 | WP696392 | Clamp (Replaces: 8540008) |
|
$ 8.17 | |||||
| 6 | W11366249 | Hose, Tub To Pump (Replaces: 8540012) |
|
Immediately | $ 46.75 | ||||
| 7 | WP616099 | Clamp, Hose (Replaces: 370448) |
|
Immediately | $ 7.72 | ||||
| 8 | W10034820 | Foot, Rubber (slider) |
|
$ 12.09 | |||||
| 9 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 10 | WPW10730972 | Pump (complete) (Replaces: 8540024) |
|
Immediately | $ 187.39 | ||||
| 11 | W10034830 | Foot, Rubber (lock) |
|
- | |||||
| 12 | 8533964 | Screw, Ventilation |
|
$ 11.34 | |||||
| 13 | WPW10730972 | Seal, Filter Cap (Replaces: 8540025) |
|
Immediately | $ 187.39 | ||||
| 14 | WPW10730972 | Assembly, Filter Cap (Replaces: 8540996) |
|
Immediately | $ 187.39 | ||||
| 15 | 8540133 | Motor, Drive |
|
- | |||||
| 16 | 8540134 | Bolt, Motor |
|
$ 12.71 |
