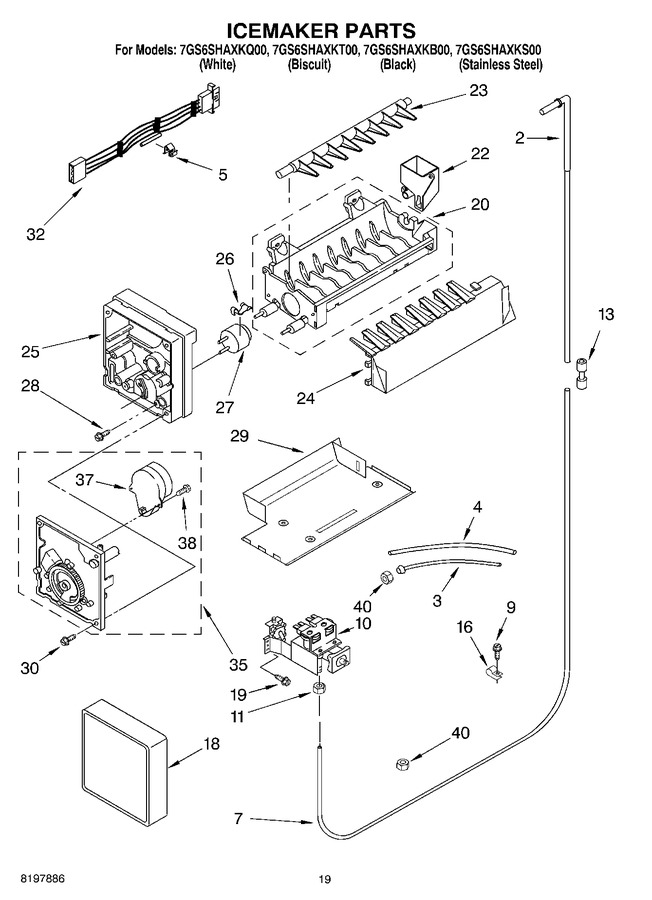

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP2256096 | Fitting, Water Tube (Replaces: 2198578) |
|
Immediately | $ 214.05 | ||||
| 3 | W11496481 | Tube, Filter Outlet (Replaces: 2186493) |
|
Immediately | $ 37.19 | ||||
| 4 | 8201597 | Tube, Filter Inlet (Replaces: 2186492) |
|
Immediately | $ 83.70 | ||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 7 | WP2256096 | Tube, Water (Replaces: 2211507) |
|
Immediately | $ 214.05 | ||||
| 9 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 10 | W10408179 | Valve, Solenoid (Replaces: 2205762) |
|
Immediately | $ 104.71 | ||||
| 11 | WP627018 | Nut, Compression (Replaces: 627018) |
|
$ 11.51 | |||||
| 13 | WP2198677 | Connector, Water Tube (Replaces: 2198677) |
|
Immediately | $ 34.24 | ||||
| 16 | WP488366 | Clamp, Tube (Replaces: 489385) |
|
$ 11.92 | |||||
| 18 | WPW10289690 | Cover (Replaces: 2174358) |
|
Immediately | $ 8.82 | ||||
| 19 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 22.22 | |||||
| 20 | WPW10190929 | Mold & Heater Assembly (also Order (Replaces: 628228) |
|
$ 233.52 | |||||
| 20 | WP542638 | Silicone Grease (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 22 | WP628356 | Bearing & Inlet (Replaces: 628356) |
|
$ 53.75 | |||||
| 23 | WP627843 | Ejector (Replaces: 2194711) |
|
$ 87.78 | |||||
| 24 | W10297244 | Ice Stripper (Replaces: 2198598) |
|
$ 76.80 | |||||
| 25 | WP2195914 | Support (Replaces: 2194712) |
|
$ 109.80 | |||||
| 26 | WP2315522 | Retainer, Thermostat (Replaces: 627796) |
|
$ 11.60 | |||||
| 27 | WP627985 | Thermostat (also Order) (Replaces: 628397) |
|
$ 114.64 | |||||
| 27 | 542369 | Cement Alumilastic) |
|
- | |||||
| 28 | 8533917 | Screw (Replaces: 489322) |
|
$ 14.04 | |||||
| 29 | WP2212322 | Bracket, Icemaker Mounting (Replaces: 2212322) |
|
Immediately | $ 112.43 | ||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 32 | 2198599 | Harness, Wiring |
|
- | |||||
| 35 | W10190935 | Module Assembly (includes Items 37 & 38) (Replaces: 628399) |
|
Immediately | $ 136.28 | ||||
| 37 | W10190935 | Motor (Replaces: 628398) |
|
Immediately | $ 136.28 | ||||
| 38 | 489136 | Screw |
|
$ 10.80 | |||||
| 40 | 1129179 | Nut, Compression |
|
- |
