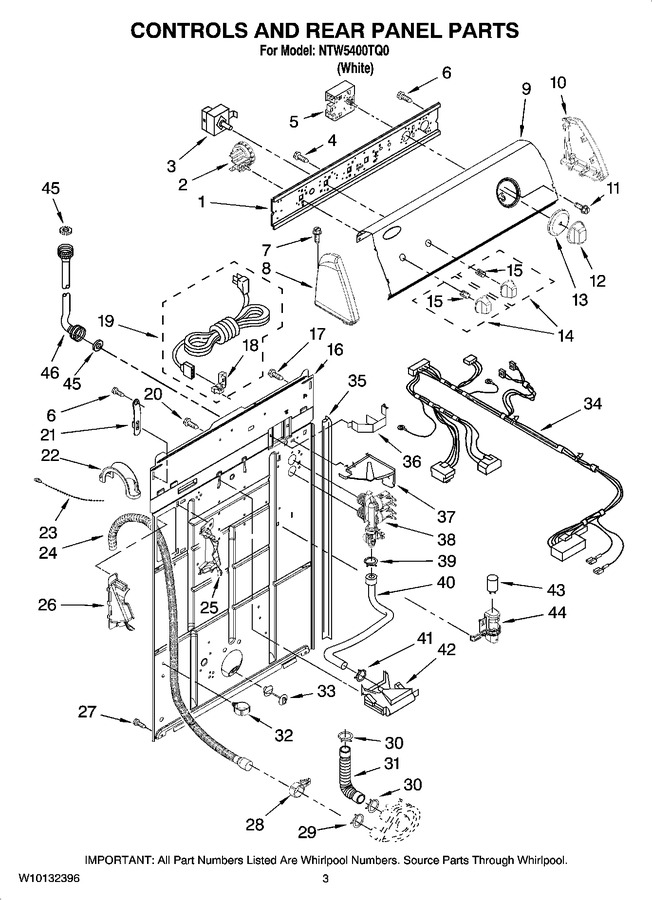

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3948608 | Bracket, Control (Replaces: 3948608) |
|
$ 109.80 | |||||
| 2 | W10339334 | Switch, Water Level (Replaces: 8577845) |
|
Immediately | $ 224.83 | ||||
| 3 | WP8578337 | Switch, Water Temperature (Replaces: 8578337) |
|
$ 127.80 | |||||
| 4 | 3400073 | Screw, Ground |
|
- | |||||
| 5 | WP8572976 | Timer (motor Not A Service Part) (Replaces: 8572976) |
|
Immediately | $ 441.77 | ||||
| 6 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 7 | WP388326 | Screw, 8-18 X 1.25 (panel To Top) (Replaces: 388326) |
|
$ 8.36 | |||||
| 8 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 9 | W10089719 | Panel, Console |
|
- | |||||
| 10 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 11 | WP3400818 | Screw, Timer Mounting (Replaces: 3400818) |
|
$ 7.93 | |||||
| 12 | W10110045 | Knob, Timer |
|
$ 82.04 | |||||
| 13 | W10110046 | Dial, Timer |
|
$ 41.76 | |||||
| 14 | WPW10110047 | Knob, Control (Replaces: W10110047) |
|
$ 49.97 | |||||
| 15 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 16 | 8318015 | Panel, Rear |
|
$ 148.59 | |||||
| 17 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.57 | ||||
| 18 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 19 | W10820044 | Cord, Power (Replaces: 8578842) |
|
$ 134.88 | |||||
| 20 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 21 | WP8568314 | Strap, Console (2) (Replaces: 8568314) |
|
$ 7.35 | |||||
| 22 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 7.53 | |||||
| 23 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 7.47 | |||||
| 24 | WPW10096921 | Drain Hose Assembly (includes Items 28 & 32) (Replaces: 8559373) |
|
Immediately | $ 65.84 | ||||
| 25 | WPW10096921 | Bucket, Drain Hose (left Half) (Replaces: 8541669) |
|
Immediately | $ 65.84 | ||||
| 26 | WPW10096921 | Bucket, Drain Hose (right Half) (Replaces: 8541658) |
|
Immediately | $ 65.84 | ||||
| 27 | WP3390631 | Srew, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.43 | |||||
| 28 | 8541668 | Clamp, Hose |
|
$ 20.09 | |||||
| 29 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 7.93 | ||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.72 | ||||
| 31 | 285871 | Hose, Pump To Tub (includes Item 30) (Replaces: 3951449) |
|
Immediately | $ 26.09 | ||||
| 32 | 8541667 | Clamp, Hose |
|
$ 5.86 | |||||
| 33 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 17.87 | ||||
| 34 | 3958082 | Harness, Wiring (for Detail See Pages 9 & 10) |
|
$ 118.43 | |||||
| 35 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 24.81 | |||||
| 36 | 8055003 | Clip, Harness & Pressure Switch |
|
$ 36.24 | |||||
| 37 | 8539874 | Shield, Suds |
|
$ 7.01 | |||||
| 38 | WP8578340 | Valve, Water Inlet W/bi-metal (Replaces: 8578340) |
|
Immediately | $ 204.95 | ||||
| 39 | WP596669 | Clamp, Hose (Replaces: 301958) |
|
Immediately | $ 7.94 | ||||
| 40 | WP8317926 | Hose, Vacuum Break (Replaces: 8317974) |
|
Immediately | $ 22.38 | ||||
| 41 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 7.94 | ||||
| 42 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 45.41 | ||||
| 43 | WP8572717 | Capacitor, Motor Start (Replaces: 8572717) |
|
Immediately | $ 87.84 | ||||
| 44 | 8318046 | Clip, Capacitor |
|
$ 79.31 | |||||
| 45 | WP16123 | Washer, Water Inlet Hose (4) 1-1/16 X 5/8 (Replaces: 3976300) |
|
$ 7.34 | |||||
| 46 | WP89503 | Hose, Water Inlet (2) (red Coupler) (Replaces: 8571378) |
|
Immediately | $ 21.68 | ||||
| 46 | WP89503 | Hose, Water Inlet (2) (blue Coupler) (Replaces: 8571377) |
|
Immediately | $ 21.68 |
