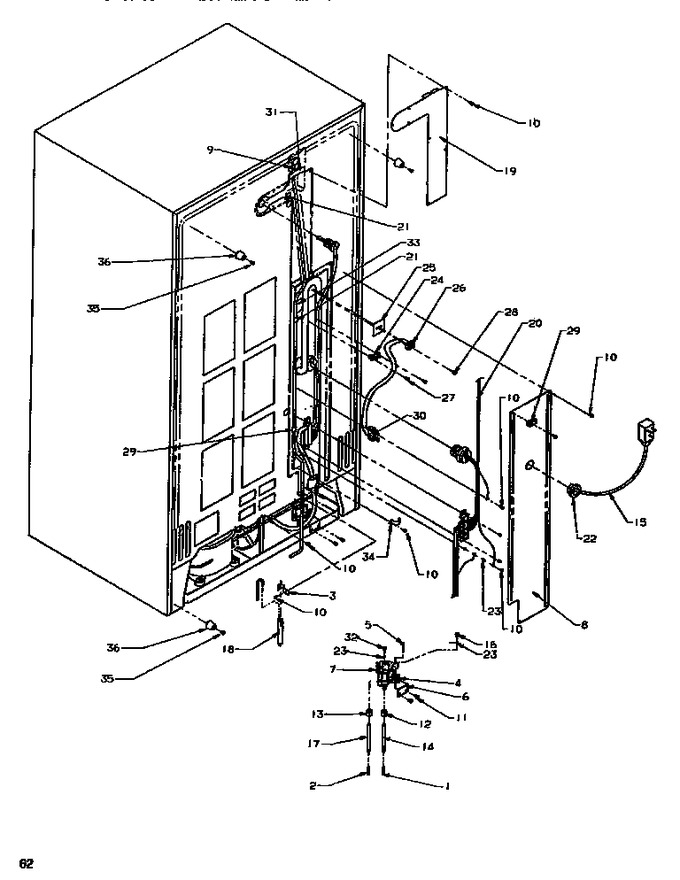

SSD522SBW (BOM: P1184701W W) | The Brick : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	A1055101	Spring, Antikink	Appelez-nous	-
2	A1055105	Spring, Anti Kink	Appelez-nous	-
3	10547001	Clip, Drier	Appelez-nous	-
4	10244902	Coupling	Appelez-nous	-
5	10798001	Clip, Water Valve	Appelez-nous	-
6	10496301	Brkt, Water Val.	Appelez-nous	-
7	D7827204	Valve, Water (220/240 Vac, 50			$ 113.44
8	10178402	Cover, O.c.back	Appelez-nous	-
9	WPM0114003	Clip, Speed (Replaces: M0114003)			$ 10.44
10	M0227217	Screw, Sm	Appelez-nous	-
11	681390	Screw (Replaces: M0251015)			$ 12.34
12	WP627018	Nut, Sleeve (Replaces: M0753001)			$ 10.36
13	M0753003	Nut, Sleeve	Appelez-nous	-
14	WPB5705307	Tube, Plastic , 68`` (Replaces: B5705321)			$ 11.75
15	B5669005	Cord, Power	Appelez-nous	-
16	WP489399	Screw, Se (Replaces: M0232929)			$ 6.57
17	10958202	Kit, Water Tank	Appelez-nous	-
18	WPB2150504	Drier (Replaces: B2150504)			$ 123.28
19	10178504	Cover - Wire	Appelez-nous	-
20	10786101	Harness, Cabinet	Appelez-nous	-
21	WPM0104106	Clip,cord (Replaces: M0104101)			$ 7.35
22	A4554813	Snap Bushing	Appelez-nous	-
23	M0272803	Lock Washer	Appelez-nous	-
24	Y10203701	Strain Relief	Appelez-nous	-
25	10377602	Insulation, Term Block	Appelez-nous	-
26	C8969202	Terminal Block	Appelez-nous	-
27	WP489474	Screw 1`` (Replaces: M0211021)		Immediately	$ 7.70
28	M0229005	Screw K	Appelez-nous	-
29	M0108001	Clamp, Tube	Appelez-nous	-
30	10786301	Jumper, Pwr Cord	Appelez-nous	-
31	A3189336	Gasket, Foam	Appelez-nous	-
32	M0233803	Screw, Tf	Appelez-nous	-
33	M0104102	Clip, Cord			$ 8.10
34	B5794201	Clamp	Appelez-nous	-
35	WP489474	Screw (Replaces: M0220634)		Immediately	$ 7.70
36	C8960601	Foot, Outer Case	Appelez-nous	-
NI	WPW10339879	Tie (Replaces: M0321202)			$ 7.47
NI	WPA3223101	Insert, Plastic Tube (Replaces: A3223101)			$ 7.39
