SELECT A DIAGRAM

01 - Cabinet And Front


02 - Unit, Lit/optional

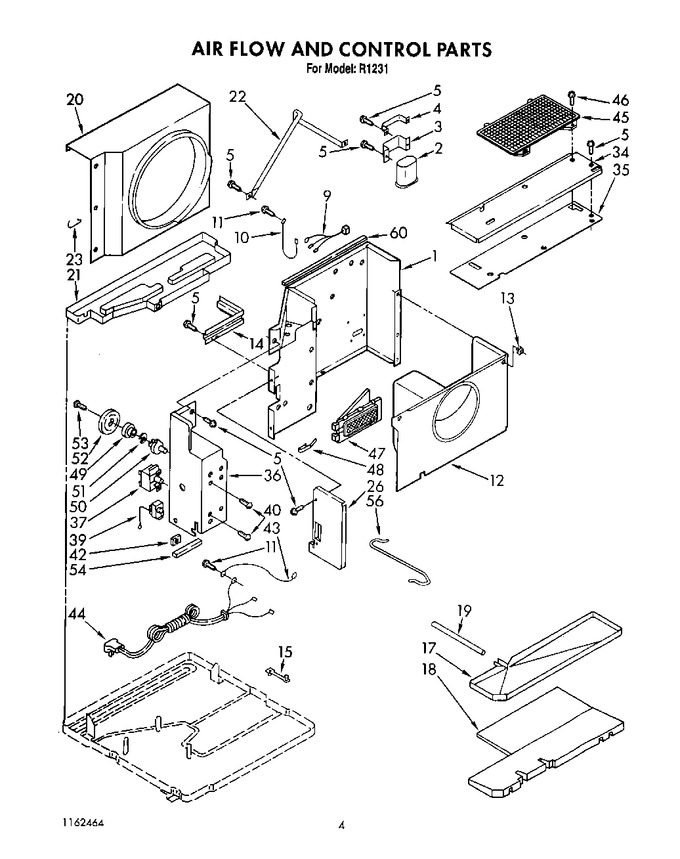

03 - Air Flow And Control


04 - Accessory


05 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	998003		Wall, Dividing		Appelez-nous	-
2	952090		Capacitor, Running		Appelez-nous	-
3	852992		Bracket, Capacitor (large)		Appelez-nous	-
4	475844		Bracket, Capacitor (small)		Appelez-nous	-
5	WP489069		Screw, Sheet Metal No.8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.56
9	1158937		Harness, Controls		Appelez-nous	-
10	948285		Wire, Ground		Appelez-nous	-
11	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 7.97
12	852875		Housing, Blower Wheel		Appelez-nous	-
13	487808		Fastener, Snap		Appelez-nous	-
14	852317		Channel, Wiring		Appelez-nous	-
15	648791		Clamp, Cable		Appelez-nous	-
17	853268		Pan, Evaporator Condensate		Appelez-nous	-
18	853269		Insulation, Condensate Pan		Appelez-nous	-
19	49181		Tube, Condensate		Appelez-nous	-
20	647862		Shroud, Condenser		Appelez-nous	-
21	859238		Pan, Condenser Condensate		Appelez-nous	-
22	852318		Support, Unit		Appelez-nous	-
23	647873		Retainer, Shroud Cover		Appelez-nous	-
26	852994		Wall, Dividing L.s.		Appelez-nous	-
34	856957		Cover, Evaporator		Appelez-nous	-
35	948410		Insulation, Evaporator Cover		Appelez-nous	-
36	994174		Box, Control		Appelez-nous	-
37	948303		Switch, Rotary		Appelez-nous	-
39	854872		Control, Temperature		Appelez-nous	-
40	488734		Screw, Mach 6-32 X .175		Appelez-nous	-
42	647865		Grommet, Wiring		Appelez-nous	-
43	857634		Ground, Wire		Appelez-nous	-
44	649125		Cable, Appliance		Appelez-nous	-
45	997949		Guard, Impeller		Appelez-nous	-
46	WP488729		Screw, No.8 X 1/2a   (Replaces: 487910)			Immediately	$ 7.45
47	649720		Door, Exhaust		Appelez-nous	-
48	859369		Spring, Door		Appelez-nous	-
49	647879		Bushing, Shaft		Appelez-nous	-
50	852023		Shaft, Control		Appelez-nous	-
51	00647881		Spring, Washer   (Replaces: 647881)				$ 366.51
52	647882		Cam, Control		Appelez-nous	-
53	489092		Screw, 8-16 X 5/8		Appelez-nous	-
54	WP854334		Seal, Control Box Bottom   (Replaces: 949379)				$ 12.55
56	859370		Wire, Control		Appelez-nous	-
60	WP854334		Seal, Flange   (Replaces: 950155)				$ 12.55

    View Diagram in Separate Window       Print Part List
