New Model Search:

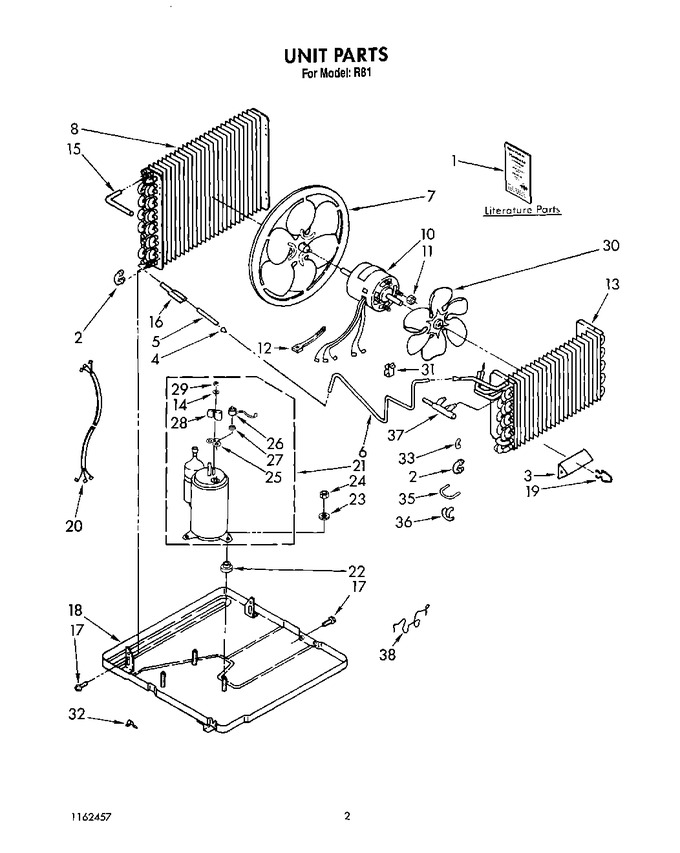

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT1160383 | Diagram, Wiring |
|
- | |||||
| 1 | LIT1162433 | Guide, Operation |
|
- | |||||
| 1 | LIT1162457 | List, Repair Parts |
|
- | |||||
| 1 | LIT1160869 | Sheet, Tech |
|
- | |||||
| 2 | 708532 | Bend, Return Evaporator (6) Condenser (13) |
|
- | |||||
| 3 | 996773 | Anticipator, Temperature |
|
- | |||||
| 4 | 49599 | Strainer, Tube |
|
- | |||||
| 5 | 950850 | Tube, Outlet (includes Illus. 4) |
|
- | |||||
| 6 | 1159259 | Tube, Restrictor (53.0 Length) |
|
- | |||||
| 7 | 997904 | Blade, Fan (condenser) |
|
- | |||||
| 8 | 1155786 | Condenser |
|
- | |||||
| 10 | 1156061 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 12 | WPW10339879 | Tie, Cable (Replaces: 857547) |
|
$ 7.47 | |||||
| 13 | 1156641 | Evaporator |
|
- | |||||
| 14 | 950037 | Gasket, Nut |
|
- | |||||
| 15 | 1155580 | Tube, 90~ Connect |
|
- | |||||
| 16 | 947364 | Tube, Flow Divider |
|
- | |||||
| 17 | WP489069 | Screw, S.m.no.8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 17 | 488481 | Screw, S.m.no.10 X 1/2 |
|
- | |||||
| 18 | 951570 | Base |
|
- | |||||
| 19 | 475577 | Clip, Anticipator |
|
- | |||||
| 20 | 484136 | Harness, Wiring (compressor Service) |
|
- | |||||
| 21 | 4317916 | Compressor |
|
- | |||||
| 22 | 950212 | Grommet (3) |
|
- | |||||
| 23 | 489108 | Washer (3) |
|
- | |||||
| 24 | 858122 | Locknut (3) |
|
- | |||||
| 25 | WP950035 | Gasket, Terminal Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 26 | WP1161170 | Overload (Replaces: 1161170) |
|
$ 84.72 | |||||
| 27 | 950032 | Spring, Overload |
|
- | |||||
| 28 | WP950036 | Cover, Terminal (Replaces: 950213) |
|
$ 9.83 | |||||
| 29 | WP950027 | Nut, Terminal Cover (Replaces: 950027) |
|
$ 5.20 | |||||
| 30 | 1160946 | Blade, Fan (evaporator) |
|
- | |||||
| 31 | 852451 | Clamp, Cable |
|
- | |||||
| 32 | 855930 | Clamp, Tube |
|
- | |||||
| 33 | 1158407 | Tube, Riser |
|
- | |||||
| 35 | 708531 | Bend, Return Evaporator (5) |
|
- | |||||
| 36 | 1156107 | Bend, Return (3-way) |
|
- | |||||
| 37 | 1156642 | Maniflod, Header |
|
- | |||||
| 38 | 949634 | Clip, Mtg. (2) |
|
- |
