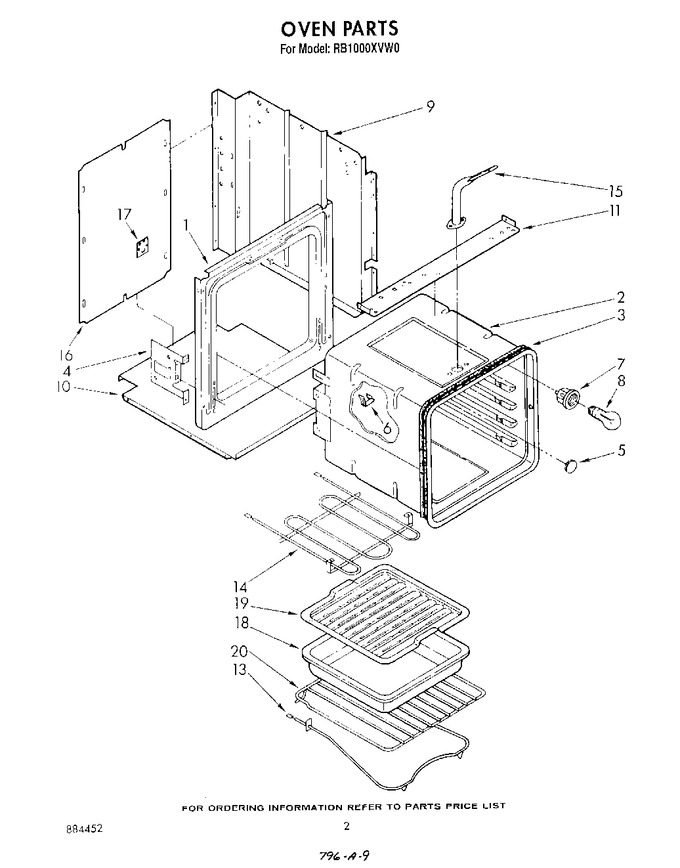

02 - Oven


03 - Control Panel , Literature And Optional


04 - Oven Door


05 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329040		Front Frame		Appelez-nous	-
2	328082		Oven (24`` Standard)		Appelez-nous	-
2	311056		Screw (8)		Appelez-nous	-
3	252412		Seal, Oven		Appelez-nous	-
3	252893		Clip (2)		Appelez-nous	-
4	257807		Hinge Plate (2)		Appelez-nous	-
4	342043		Screw (4)		Appelez-nous	-
5	257314		Plug Button		Appelez-nous	-
6	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 78.37
7	660556		Socket, Oven Light 307856 (alt.) 310208 (alt.)		Appelez-nous	-
7	308043		Screw, 10-12 X 7/8 (2)		Appelez-nous	-
8	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
9	3147849		Side Wrapper (2)		Appelez-nous	-
10	312004		Cover (top)		Appelez-nous	-
10	WP308685		Cover (screw, No.10 X 1/2 (8))   (Replaces: 253549)			Immediately	$ 7.08
10	252687		Cover (bottom)		Appelez-nous	-
11	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
11	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
11	255575		Baffle, Top Insulation		Appelez-nous	-
13	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
13	660542		Unit, Bake 310216 (alt.) 257987 (alt.)		Appelez-nous	-
14	WP660579		Unit, Broil 311714 (alt.) 311713 (alt.)   (Replaces: 660579)				$ 147.83
14	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
15	311382		Vent, Built-in Oven		Appelez-nous	-
15	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 10.68
15	WP308685		Screw, 10a X1/2   (Replaces: 253549)			Immediately	$ 7.08
16	257975		Cover, Rear		Appelez-nous	-
16	WP308685		Screw, No.10 X 1/2 (10)   (Replaces: 253549)			Immediately	$ 7.08
17	252978		Plate, Service		Appelez-nous	-
18	4396923		Pan, Broil   (Replaces: 263062)			Immediately	$ 54.64
19	4396923		Rack, Broil Pan   (Replaces: 263063)			Immediately	$ 54.64
20	254426		Rack, Oven (2)		Appelez-nous	-
