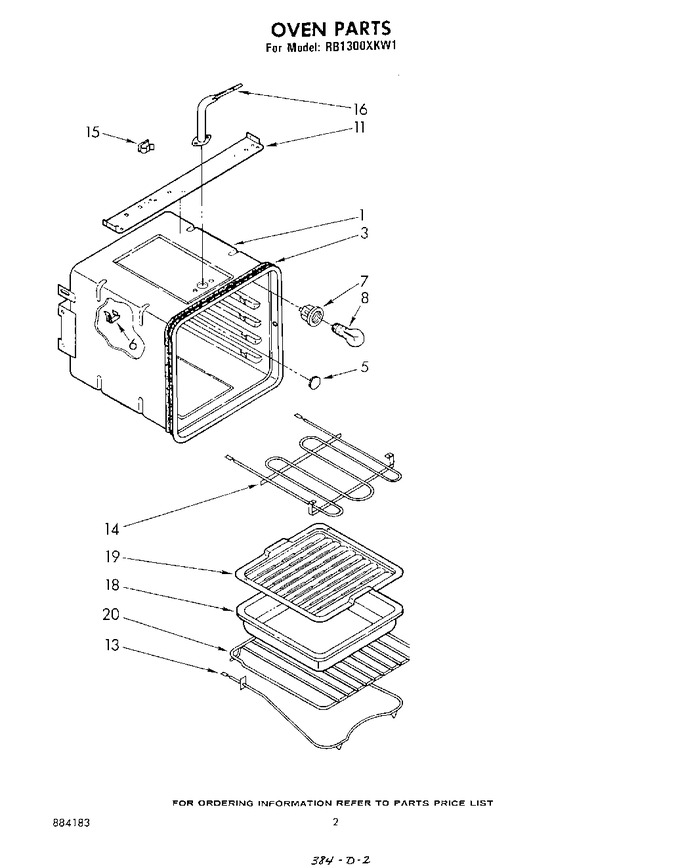

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	328083		Oven (24`` Continuous Clean)		Appelez-nous	-
1	311056		Screw (16)		Appelez-nous	-
3	252412		Seal, Oven		Appelez-nous	-
5	257314		Plug Button		Appelez-nous	-
6	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 78.37
7	307856		Socket, Oven Light (alt.)		Appelez-nous	-
7	660556		Socket, Oven Light		Appelez-nous	-
7	310208		Socket, Oven Light (alt.)			Immediately	$ 36.34
8	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
11	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
11	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
11	255575		Baffle, Top Insulation		Appelez-nous	-
13	310216		Unit, Bake (alt.)		Appelez-nous	-
13	660542		Unit, Bake		Appelez-nous	-
13	257987		Unit, Bake (alt.)		Appelez-nous	-
14	WP660579		Unit, Broil   (Replaces: 660579)				$ 147.83
14	WP660579		Unit, Broil (alt.)   (Replaces: 311713)				$ 147.83
14	WP660579		Unit, Broil (alt.)   (Replaces: 311714)				$ 147.83
15	313570		Tube Clip (2)		Appelez-nous	-
16	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 10.68
16	311382		Vent Tube (upper Oven)		Appelez-nous	-
16	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
16	258743		Vent Tube (lower Oven)		Appelez-nous	-
18	4396923		Pan, Broil   (Replaces: 263062)			Immediately	$ 54.64
19	4396923		Rack, Broil Pan   (Replaces: 263063)			Immediately	$ 54.64
20	254426		Rack, Oven (3)		Appelez-nous	-
	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
	308043		Screw, 10-12 X 7/8 (2)		Appelez-nous	-
