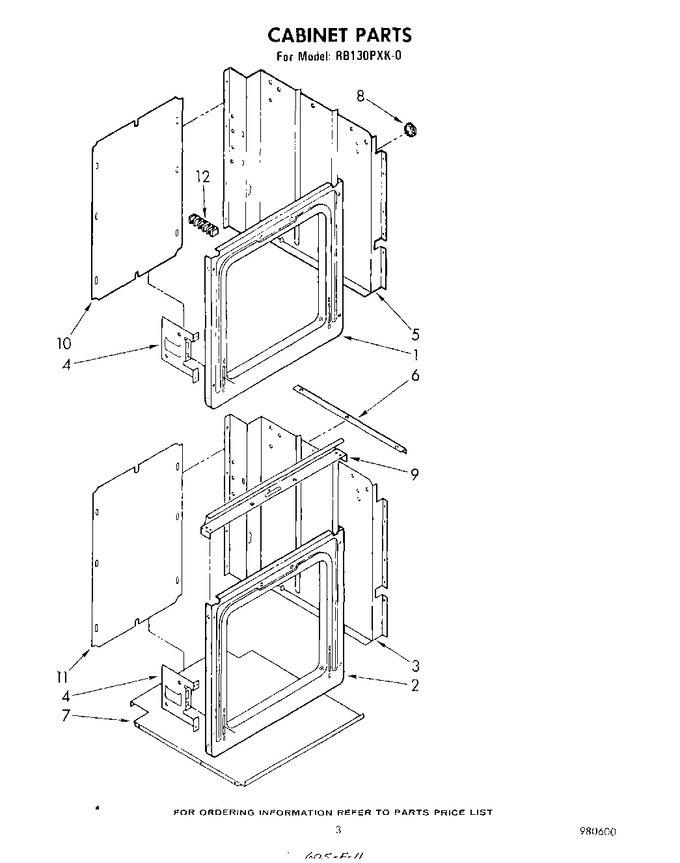

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329042		Frame, Front (upper Oven)		Appelez-nous	-
2	329044		Frame, Front (lower Oven)		Appelez-nous	-
2	338177		Clip (6)		Appelez-nous	-
3	311919		Side Wrapper (2)		Appelez-nous	-
4	342043		Screw (4)		Appelez-nous	-
4	257807		Hinge Plate (2)		Appelez-nous	-
5	WP308685		Screw, 10a X 1/2 (8)   (Replaces: 253549)			Immediately	$ 7.08
5	258111		Wrapper Side (l.h.)		Appelez-nous	-
5	255383		Wrapper Side (r.h.)		Appelez-nous	-
5	WP488627		Screw, 8a X 1/2 (12)   (Replaces: 338156)				$ 7.30
6	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
6	255095		Support Angle (2)		Appelez-nous	-
7	252687		Cover (bottom)		Appelez-nous	-
7	312004		Cover (top)		Appelez-nous	-
7	WP308685		Cover (screw, 10a X 1/2 (10))   (Replaces: 253549)			Immediately	$ 7.08
8	258112		Plug Button (2)		Appelez-nous	-
9	327759		Vent Hood (24``)		Appelez-nous	-
9	307748		Screw, 10a X 1/2 (8)		Appelez-nous	-
10	257977		Rear Cover (double Oven)		Appelez-nous	-
10	WP308685		Screw, 10a X 1/2 (17)   (Replaces: 253549)			Immediately	$ 7.08
11	257975		Cover, Rear		Appelez-nous	-
12	W10841059		Screw, 10-16 X 3/4 (2)   (Replaces: 98445)		Appelez-nous	-
12	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.77
12	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
