02 - Oven
03 - Cabinet

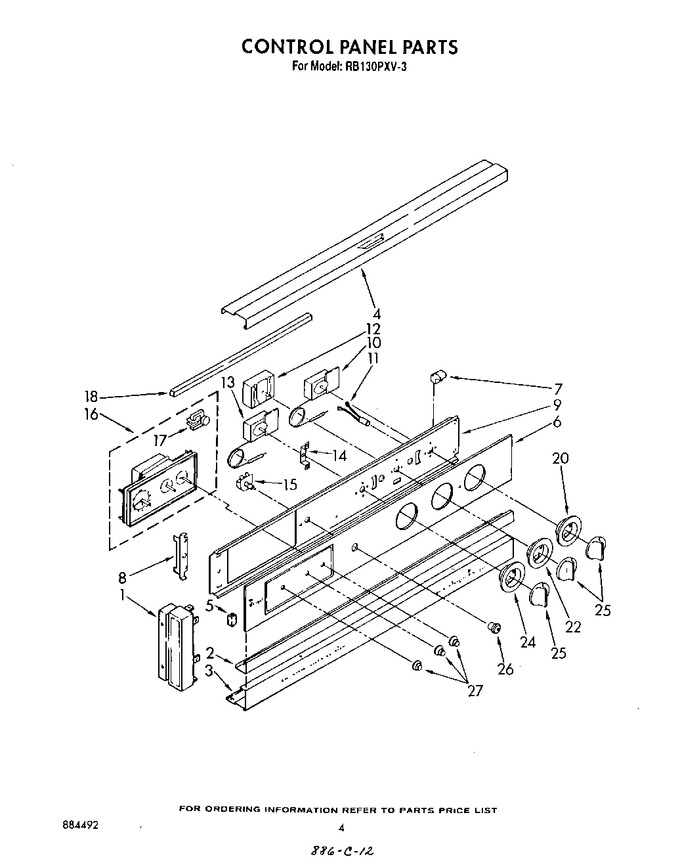

04 - Control Panel , Lit/optional
05 - Oven Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 311375 | End Cap (right Side) |
|
- | |||||
| 1 | 254217 | End Cap (screw, 10a X 5/8 (4)) |
|
- | |||||
| 1 | 312604 | End Cap (screw, 8-18 X 5/8 (2)) |
|
- | |||||
| 1 | 311376 | End Cap (left Side) |
|
- | |||||
| 2 | 3148703 | Trim, Center |
|
- | |||||
| 3 | 312529 | Trim, Bottom |
|
- | |||||
| 3 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 10.68 | ||||
| 4 | 312002 | Trim, Upper |
|
- | |||||
| 5 | 310842 | Channel, Rubber |
|
- | |||||
| 6 | 3148658 | Glass, Control Panel |
|
- | |||||
| 7 | 3149882 | Retainer, Glass (4) |
|
- | |||||
| 8 | 311372 | Bracket, Control Panel (2) |
|
- | |||||
| 9 | 166681 | Screw, 10-32 X 5/16 |
|
- | |||||
| 9 | 313317 | Control Bracket |
|
- | |||||
| 9 | 254217 | Screw, 10-32 X 5/8 (4) |
|
- | |||||
| 10 | 487384 | Screw, 6-32 X 1/4 (2) |
|
- | |||||
| 10 | 660565 | Thermostat |
|
- | |||||
| 11 | 311802 | Indicator Light (250v) |
|
- | |||||
| 12 | 310866 | Selector Switch (4 Position) |
|
- | |||||
| 12 | 155023 | Screw, 8-32 X 1/4 (2) |
|
Immediately | $ 7.91 | ||||
| 13 | 311480 | Thermostat, Oven (lower) |
|
- | |||||
| 14 | 311492 | Bracket, Thermostat |
|
- | |||||
| 14 | 311491 | Screw (2) |
|
- | |||||
| 14 | WP313808 | Screw (2) (Replaces: 311932) |
|
$ 7.47 | |||||
| 15 | WP965173 | Screw (2) (Replaces: 246132) |
|
Immediately | $ 10.68 | ||||
| 15 | 312581 | Switch, Oven Light |
|
- | |||||
| 15 | 312796 | Lockwasher |
|
- | |||||
| 16 | 3148053 | Timer, Automatic (includes Illus. 17) |
|
- | |||||
| 17 | 309822 | Motor, Timer |
|
- | |||||
| 18 | 313316 | Seal, Backguard |
|
- | |||||
| 18 | WP965173 | Screw (4) (Replaces: 246132) |
|
Immediately | $ 10.68 | ||||
| 20 | 311071 | Escutcheon, Thermostat |
|
- | |||||
| 22 | 254225 | Screw, 8bt X 1/4 (3) |
|
- | |||||
| 22 | WP311069 | Escutcheon, Selector (Replaces: 311069) |
|
$ 52.73 | |||||
| 24 | 311072 | Escutcheon Thermostat (lower) |
|
- | |||||
| 25 | WP3150371 | Knob, Control (3) (Replaces: 3150371) |
|
$ 20.38 | |||||
| 26 | 313030 | Bezel Switch |
|
- | |||||
| 27 | 285368 | Platinum (uncut) |
|
- | |||||
| 27 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 48.61 | |||||
| 27 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 27 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 27 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | |||||
| 27 | 786020 | Paint, Pressurized Spray (12 Oz.) (black) |
|
- | |||||
| 27 | 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
$ 53.90 | |||||
| 27 | 350942 | Primer |
|
$ 84.73 | |||||
| 27 | 350941 | Leveler (primer) |
|
- | |||||
| 27 | 261900 | Citrine White 5 Oz. (m/w Liner) |
|
$ 53.90 | |||||
| 27 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 27 | 978883 | Almond (uncut) |
|
- | |||||
| 27 | 261891 | Harvest Gold (uncut) |
|
- | |||||
| 27 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 27 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 27 | 330206 | Knob, Timer (3) |
|
- | |||||
| 27 | 313311 | Spring, Knob |
|
- | |||||
| 27 | 350806 | 18 Ga. 80~c Rating (yellow) |
|
- | |||||
| 27 | 10875 | Wire (16 Ga. 80 C Blue) |
|
Immediately | $ 20.64 | ||||
| 27 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 27 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 27 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 27 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 27 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 27 | 242826 | 18 Ga. 80~c Rating (white) |
|
- | |||||
| 27 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 27 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 27 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 27 | 242832 | 18 Ga. 80~c Rating (yellow 12 Ga. 150~c Rating) |
|
- | |||||
| 27 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 27 | 242829 | 18 Ga. 80~c Rating (red) |
|
- | |||||
| 27 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 27 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 27 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 105.40 | |||||
| 27 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | ||||
| 27 | 261890 | Harvest Gold |
|
- | |||||
| 27 | 285365 | Toast |
|
- | |||||
| 27 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- |
