SELECT A DIAGRAM

02 - Oven, Lit/optional

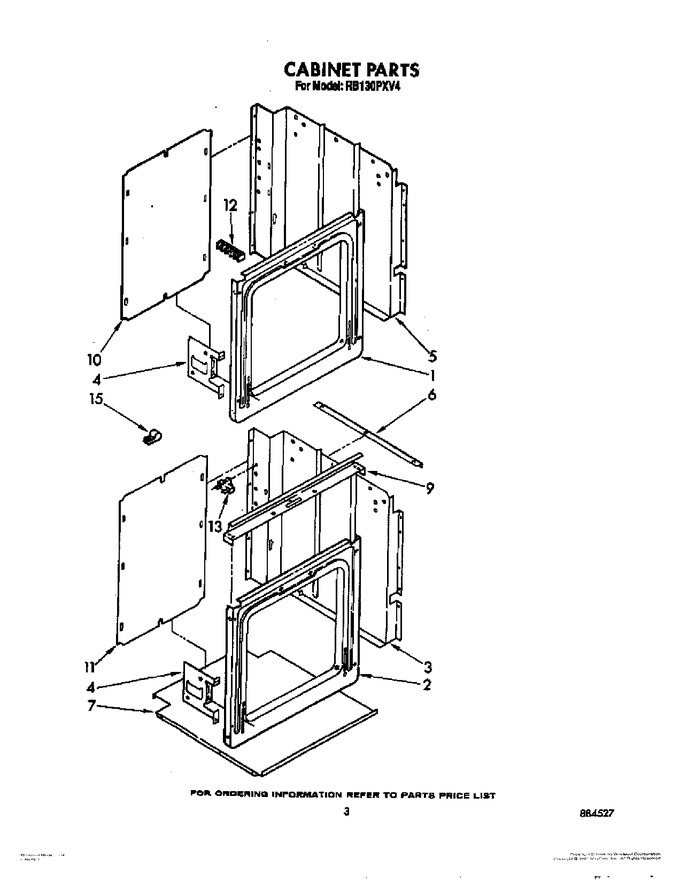

03 - Cabinet


04 - Control Panel, Optional


05 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329047		Frame Front (upper Oven)		Appelez-nous	-
2	329046		Frame, Front (lower Oven)		Appelez-nous	-
3	3149820		Side Wrapper (2)		Appelez-nous	-
4	342043		Screw (8)		Appelez-nous	-
4	257807		Hinge Plate (4)		Appelez-nous	-
5	WP308685		Screw, 10a X 1/2 (8)   (Replaces: 253549)			Immediately	$ 7.08
5	3149819		Wrapper Side (l.h.)		Appelez-nous	-
5	255383		Wrapper Side (r.h.)		Appelez-nous	-
5	309133		Screw, 8a X 5/8 (12)		Appelez-nous	-
6	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
6	255095		Support Angle (2)		Appelez-nous	-
7	312004		Cover, Oven (top)		Appelez-nous	-
7	252687		Cover, Oven (bottom)		Appelez-nous	-
7	WP308685		Cover, Oven (screw, 10a X 1/2 (8))   (Replaces: 253549)			Immediately	$ 7.08
9	327759		Vent Hood (24``)		Appelez-nous	-
9	307748		Screw, 10a X 1/2 (8)		Appelez-nous	-
10	257977		Rear Cover (double Oven)		Appelez-nous	-
10	WP308685		Screw, 10a X 1/2 (17)   (Replaces: 253549)			Immediately	$ 7.08
11	257975		Cover, Rear		Appelez-nous	-
12	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
12	W10841059		Screw, 10-16 X 3/4 (2)   (Replaces: 98445)		Appelez-nous	-
12	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.77
13	312713		Screw, 8-32 X 3/8		Appelez-nous	-
13	3149649		Thermostat (2)		Appelez-nous	-
15	488946		Clip, Wiring   (Replaces: 255564)				$ 19.32
15	258688		Harness, Wiring (supply)		Appelez-nous	-
15	3185191		Harness, Wiring (oven Main)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
