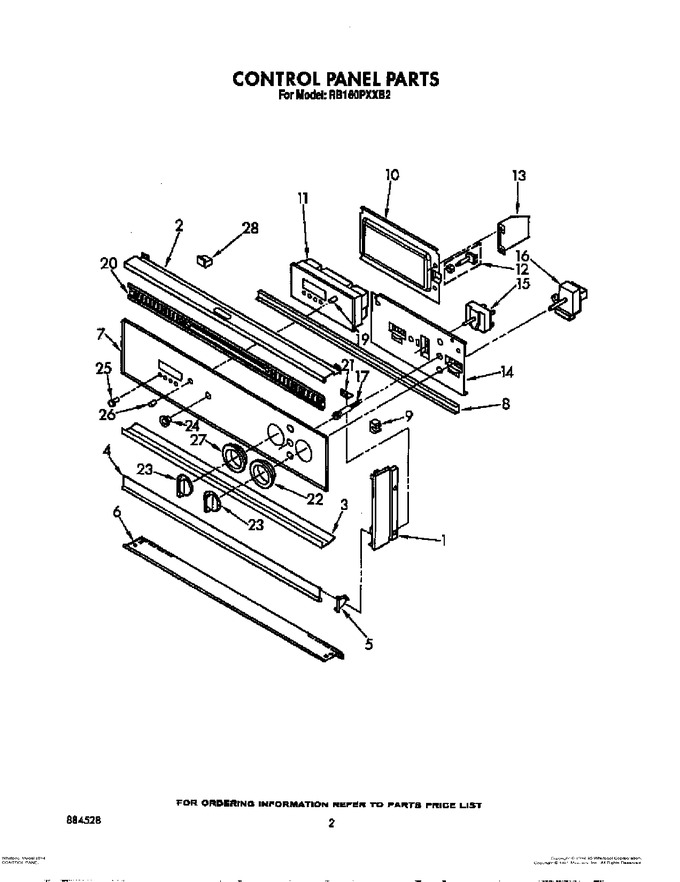

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3179458 | End Cap (left Hand) |
|
- | |||||
| 1 | 3179459 | End Cap (right Hand) |
|
- | |||||
| 2 | 3179422 | Trim, Top |
|
- | |||||
| 2 | WP90767 | Screw (2) (Replaces: 300890) |
|
Immediately | $ 7.43 | ||||
| 3 | 3180684 | Trim, Center |
|
- | |||||
| 4 | 3179453 | Door, Vent |
|
- | |||||
| 5 | 3148698 | End Trim, Vent Door (right Hand) |
|
- | |||||
| 5 | 3148697 | End Trim, Vent Door (left Hand) |
|
- | |||||
| 6 | 3178001 | Screw, Black (4) |
|
- | |||||
| 6 | 3180657 | Trim, Bottom |
|
- | |||||
| 7 | 3180535 | Glass, Control Panel |
|
- | |||||
| 8 | 3180290 | Rail, Mounting (components) |
|
- | |||||
| 9 | WP90767 | Screw (4) (Replaces: 300890) |
|
Immediately | $ 7.43 | ||||
| 9 | 3180440 | Retainer, Glass |
|
- | |||||
| 10 | 3180293 | Plate, Mounting (clock) |
|
- | |||||
| 11 | 3149806 | Timer |
|
- | |||||
| 12 | 312581 | Switch, Oven Light |
|
- | |||||
| 13 | 3180542 | Shield, Heat |
|
- | |||||
| 13 | 312796 | Washer, Lock (2) |
|
- | |||||
| 13 | WP90767 | Screw (4) (Replaces: 300890) |
|
Immediately | $ 7.43 | ||||
| 14 | 3180294 | Plate, Mounting (controls) |
|
- | |||||
| 15 | 3178237 | Switch, Selector |
|
- | |||||
| 16 | 3178275 | Thermostat, Oven |
|
- | |||||
| 16 | 155023 | Screw (4) |
|
Immediately | $ 7.91 | ||||
| 17 | WP90767 | Screw (4) (Replaces: 300890) |
|
Immediately | $ 7.43 | ||||
| 17 | 4168598 | Light, Indicator (3) |
|
- | |||||
| 19 | 3149320 | Shaft, Bit Generator |
|
- | |||||
| 20 | WP90767 | Screw (2) (Replaces: 300890) |
|
Immediately | $ 7.43 | ||||
| 20 | 3179915 | Insert, Vent |
|
- | |||||
| 21 | WP90767 | Screw (2) (Replaces: 300890) |
|
Immediately | $ 7.43 | ||||
| 21 | 3181279 | Bracket, Mounting |
|
- | |||||
| 22 | 254225 | Screw, |
|
- | |||||
| 22 | 3180524 | Escutcheon, Oven Thermostat |
|
- | |||||
| 23 | WP3150371 | Knob, Control (2) (Replaces: 3150371) |
|
$ 20.38 | |||||
| 24 | 313030 | Bezel Switch |
|
- | |||||
| 25 | 313958 | Set, Button (4) |
|
- | |||||
| 26 | 313523 | Knob, Bit Generator |
|
$ 13.66 | |||||
| 27 | 254225 | Screw, |
|
- | |||||
| 27 | 3180525 | Escutcheon, Selector Switch |
|
- | |||||
| 28 | 3181831 | Support, Glass (2) |
|
- | |||||
| LIT3185204 | Tech Sheet |
|
- | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 48.61 | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 73.65 | |||||
| 285368 | Platinum |
|
- | ||||||
| 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | ||||||
| 261891 | Harvest Gold |
|
- | ||||||
| 978883 | Almond |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350941 | Leveler (primer) |
|
- | ||||||
| 350942 | Primer |
|
$ 84.73 | ||||||
| 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
$ 53.90 | ||||||
| 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 285365 | Toast |
|
- | ||||||
| 261890 | Harvest Gold |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | |||||
| WP261869 | Citrine White (Replaces: 261869) |
|
$ 25.05 | ||||||
| DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 105.40 | ||||||
| 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | ||||||
| DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | ||||||
| 242829 | 12 Ga. 150~c Rating (red) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 242832 | 14 Ga. 200~c Rating (yellow) |
|
- | ||||||
| 282831 | 14 Ga. 200~c Rating (red) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242826 | 14 Ga. 150~c Rating (white) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | ||||||
| 350806 | 18 Ga. 80~c Rating (yellow) |
|
- | ||||||
| LIT3180016 | Use & Care Guide |
|
- | ||||||
| LIT3180568 | Installation Instructions |
|
- | ||||||
| LIT884528 | Repair Parts List |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- |
