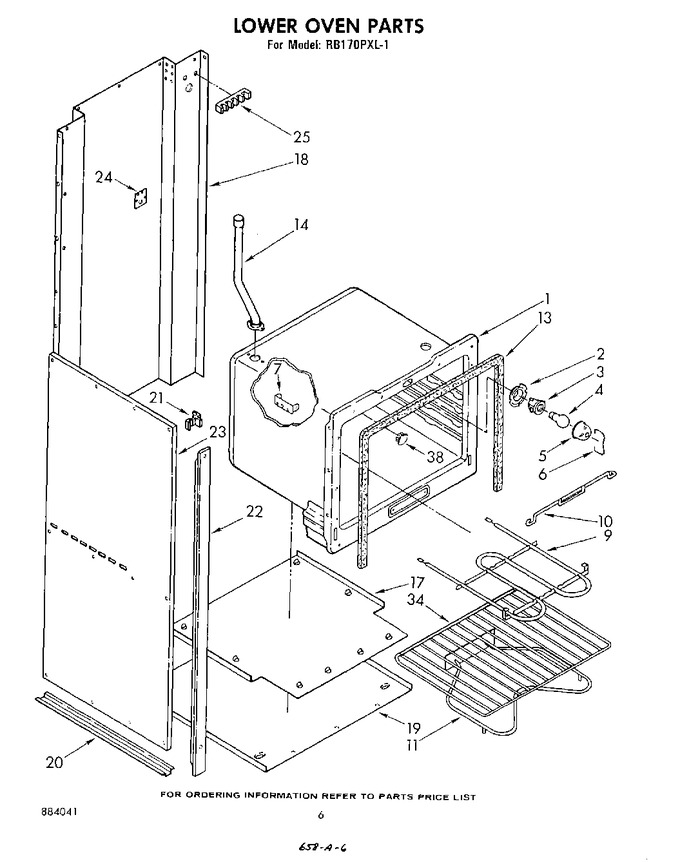

04 - Lower Oven, Literature And Optional


05 - Upper Oven Door


06 - Lower Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	877812		Oven (27`` C.c.)		Appelez-nous	-
2	486146		Screw, 10-24 X1/2 (2)				$ 12.83
2	877802		Cup, Light		Appelez-nous	-
3	W10856866		Receptacle, Light   (Replaces: 877803)				$ 6.80
4	8009		Bulb, Light   (Replaces: 527949)			Immediately	$ 17.51
5	877804		Lens, Light		Appelez-nous	-
6	877805		Retainer, Lens		Appelez-nous	-
7	865959		Bracket, Thermo Bulb		Appelez-nous	-
7	486146		Screw, 10-24 X 1/2				$ 12.83
9	486146		Screw, 10-24 X1/2 (2)				$ 12.83
9	865638		Unit, Broil		Appelez-nous	-
10	866429		Hanger, Broil Unit		Appelez-nous	-
10	486146		Screw, 10-24 X1/2 (2)				$ 12.83
11	WP866375		Unit, Bake (alternate)   (Replaces: 868969)				$ 120.84
11	486146		Unit Bake (screw, 10-24 X 1/2 (2))				$ 12.83
11	EB770		Unit, Bake (alternate)   (Replaces: 866375)			Immediately	$ 44.96
13	877582		Alternate		Appelez-nous	-
13	868003		Gasket, Oven Door		Appelez-nous	-
14	868032		Vent Tube		Appelez-nous	-
14	486146		Screw, 10-24 X1/2 (2)				$ 12.83
17	866379		Retainer, Insulation Bottom		Appelez-nous	-
17	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
18	681151		Screw, 10-24 X 1/2 (12)		Appelez-nous	-
18	877509		Casing, Back		Appelez-nous	-
19	868976		Casing, Bottom		Appelez-nous	-
19	681151		Screw, 10-24 X 1/2 (8)		Appelez-nous	-
20	681151		Screw, 10-24 X 1/2 (8)		Appelez-nous	-
20	868977		Support, Bottom Casing (2)		Appelez-nous	-
21	866382		Spacer Trim (6)		Appelez-nous	-
22	866434		Trim, Oven Front (2)		Appelez-nous	-
23	877508		Casing, Side (2)		Appelez-nous	-
23	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
23	681151		Screw, 10-24 X 1/2 (36)		Appelez-nous	-
24	868868		Plate, Conduit		Appelez-nous	-
25	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
25	487836		Nut, Hex (10-32) (3)		Appelez-nous	-
25	WP8203546		Block, Terminal (main)   (Replaces: 241212)			Immediately	$ 27.12
25	680363		Screw,10-24 X 1/2		Appelez-nous	-
34	834731		Rack, Oven Regular (1)		Appelez-nous	-
38	884041		List, Parts		Appelez-nous	-
38	261810		Touch-up Oven (1 Oz.)		Appelez-nous	-
38	261582		Grease		Appelez-nous	-
38	877798		Tech Sheet		Appelez-nous	-
38	866338		Installation Instructions		Appelez-nous	-
38	877793		Guide, Owner`s		Appelez-nous	-
38	308500		Book, Cooking Guide		Appelez-nous	-
38	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
38	142017		Plug, Button		Appelez-nous	-
38	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
38	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
38	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
38	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
38	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
38	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
38	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
38	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
38	242831		Wire (14 Ga. 200 C Red)				$ 342.23
38	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
38	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
38	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
38	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 54.98
38	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 54.98
38	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
