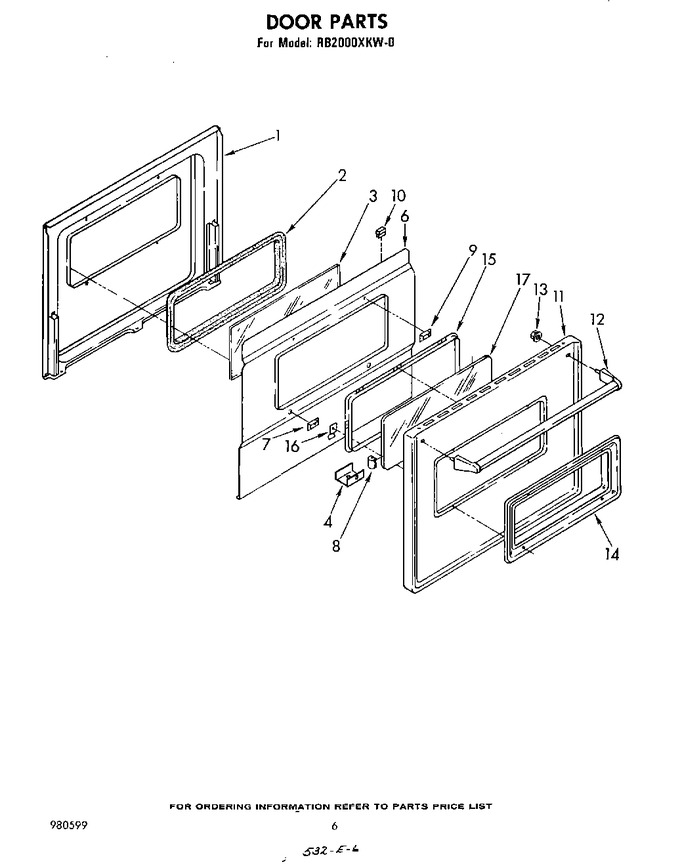

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 327862 | Liner, Door |
|
- | |||||
| 1 | 311056 | Screw, (4) |
|
- | |||||
| 1 | 338177 | ``j`` Clip (2) |
|
- | |||||
| 1 | 254217 | Screw, 10a X 3/8 (3) |
|
- | |||||
| 1 | WP488627 | Screw, 8a X 1/2 (2) (Replaces: 338156) |
|
$ 7.30 | |||||
| 2 | 258711 | Seal, Glass |
|
- | |||||
| 3 | 258988 | Glass, Inner |
|
- | |||||
| 4 | WP308685 | Screw, 10a X 1/2 (2) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 4 | 309137 | Spacer, Door (2) |
|
- | |||||
| 6 | 307924 | Baffle, Insulation |
|
- | |||||
| 7 | 258990 | Spacer, Baffle (2) |
|
- | |||||
| 7 | 307748 | Screw, 10a X 1/2 (2) |
|
- | |||||
| 8 | 309152 | Cushion, Door (2) |
|
- | |||||
| 9 | WP308685 | Screw, 10a X 1/2 (2) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 9 | 258990 | Spacer, Baffle (2) |
|
- | |||||
| 10 | 255859 | Channel, Rubber (4) |
|
- | |||||
| 11 | 307894 | Panel, Oven Door (harvest Gold) |
|
- | |||||
| 11 | 307888 | Panel, Oven Door (white) |
|
- | |||||
| 11 | 307890 | Panel, Oven Door (new Avocado) |
|
- | |||||
| 11 | 309133 | Panel, Oven Door (screw, 8a X 5/8 (2)) |
|
- | |||||
| 11 | 313176 | Panel, Oven Door (platinum) |
|
- | |||||
| 11 | 313175 | Panel, Oven Door (toast) |
|
- | |||||
| 11 | 307896 | Panel, Oven Door (almond) |
|
- | |||||
| 11 | 307892 | Panel, Oven Door (coffee) |
|
- | |||||
| 12 | 311564 | Handle, Oven Door |
|
- | |||||
| 13 | WP308499 | Palnut, Handle (2) (Replaces: 308499) |
|
$ 6.57 | |||||
| 14 | 309173 | Window, Frame 30`` Small |
|
- | |||||
| 15 | 307792 | Glass Retainer |
|
- | |||||
| 16 | 307731 | Clip, Frame |
|
- | |||||
| 17 | 980599 | List, Parts |
|
- | |||||
| 17 | 261810 | Touch-up Oven (1 Oz.) |
|
- | |||||
| 17 | 261582 | Grease |
|
- | |||||
| 17 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 52.37 | ||||
| 17 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 52.37 | ||||
| 17 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 17 | 242985 | Rotisserie Kit |
|
- | |||||
| 17 | 311434 | Installation Instructions |
|
- | |||||
| 17 | 311413 | Guide, Use & Care |
|
- | |||||
| 17 | 308500 | Book, Cooking Guide |
|
- | |||||
| 17 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 17 | 307732 | Glass, Outer |
|
- | |||||
| 17 | 313045 | Screw, 7-19 X 3/8 (8) |
|
- | |||||
| 17 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 17 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 17 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 17 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 17 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 17 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 17 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 17 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 17 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 17 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 17 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 17 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- |
