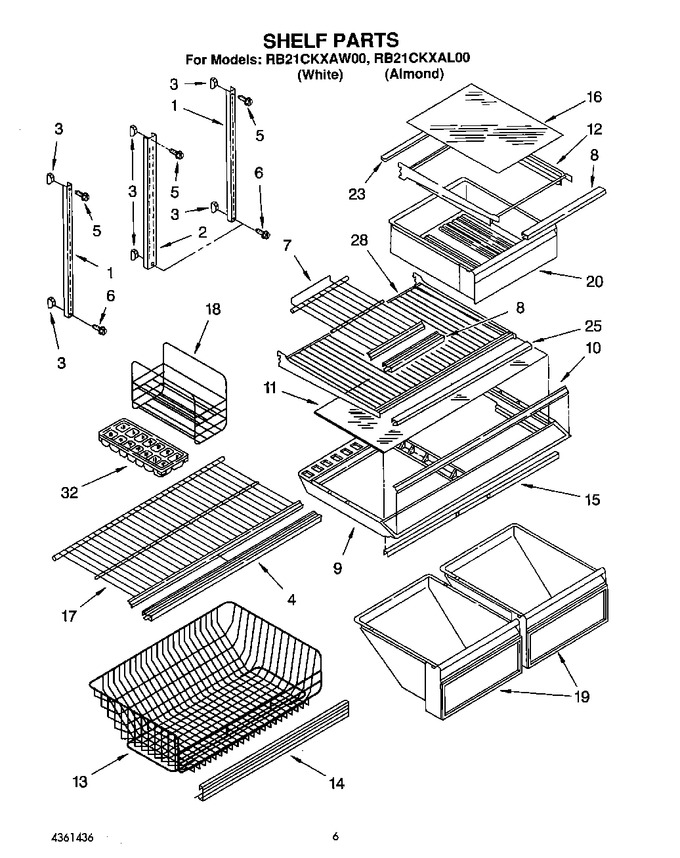

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1127413		Shelf, Ladder (2)		Appelez-nous	-
2	1127414		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 28.22
4	2163478		Trim, Shelf F.c.		Appelez-nous	-
5	489345		Screw, 8-32 X 1-1/4 (3)		Appelez-nous	-
6	WP488163		Screw, 8 X 1-1/4 (3)   (Replaces: 488163)				$ 7.13
7	1110738		Shelf, Cantilever		Appelez-nous	-
8	1124366		Trim, Shelf		Appelez-nous	-
9	2163280		Crisper Cover		Appelez-nous	-
10	1119480		Trim, Crisper Cover		Appelez-nous	-
11	1124363		Glass, Crisper Cover		Appelez-nous	-
12	1110756		Pan Shelf, Cantilever		Appelez-nous	-
13	2152799		Freezer Basket, (lower)		Appelez-nous	-
14	2163399		Trim, Basket		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 1106613)				$ 91.87
16	1124367		Glass, Shelf		Appelez-nous	-
17	2163475		Shelf, F.c. Full		Appelez-nous	-
18	2152823		Rack, Ice Tray		Appelez-nous	-
19	2152501		Pan, Crisper		Appelez-nous	-
20	2152502		Pan, Meat		Appelez-nous	-
23	1110744		Reflector, Shelf		Appelez-nous	-
25	2152284		Trim, Shelf		Appelez-nous	-
28	1120135		Shelf, Full Cantilever		Appelez-nous	-
32	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
32	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
32	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
32	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
32	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
32	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
32	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
32	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
32	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
32	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
32	WP841180A		Ice Cube Tray   (Replaces: 841180)			Immediately	$ 43.06
32	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
32	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
32	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
32	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
32	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 218.83
32	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
32	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
32	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
32	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
32	350942		Primer White (13 Oz. Spray Can)				$ 84.73
32	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
32	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
32	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
32	833938		Kit, Terminal Connector				$ 7.62
	1129316		Sales Kit: Imkit   (Replaces: 1129303)			Immediately	$ 134.20
	LIT2163401		Care & Use Guide		Appelez-nous	-
	LIT2152790		Service & Wiring Sheet		Appelez-nous	-
	LIT4361436		Parts List		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT2163367		Energy Guide		Appelez-nous	-
