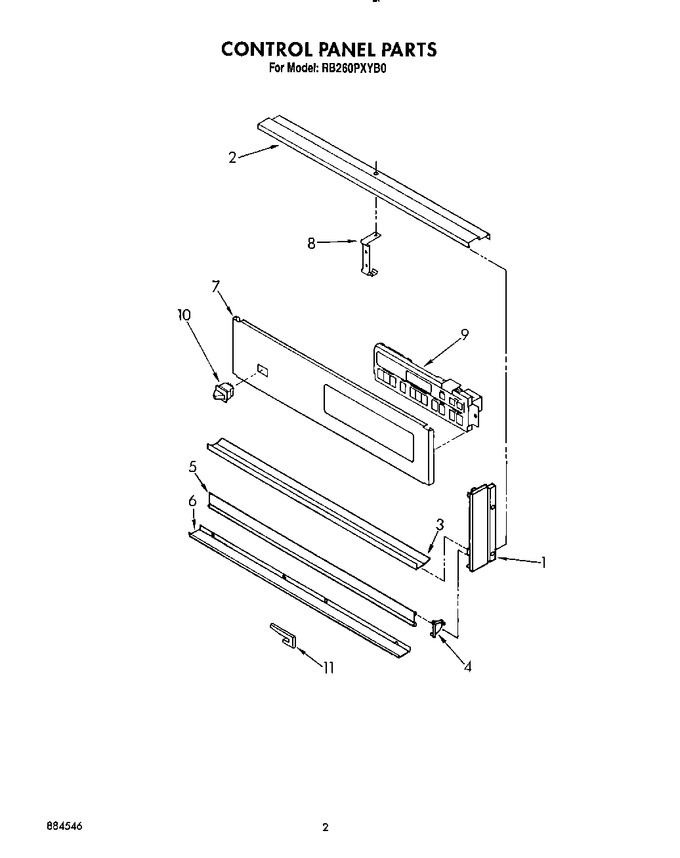

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3148621 | End Cap (left Hand) |
|
- | |||||
| 1 | 3148622 | End Cap (right Hand) |
|
- | |||||
| 2 | WP488627 | Screw (2) (Replaces: 342055) |
|
$ 7.30 | |||||
| 2 | 3148624 | Trim, Top |
|
- | |||||
| 3 | 98520 | Trim, Center (screw (2)) |
|
- | |||||
| 3 | 3183577 | Trim, Center (black Model) |
|
- | |||||
| 3 | 3183578 | Trim, Center (white Model) |
|
- | |||||
| 4 | 3148697 | End Trim (vent Door) Left Hand (black Model) |
|
- | |||||
| 4 | 3148698 | End Trim (vent Door) Left Hand (black Model) |
|
- | |||||
| 4 | 3148472 | End Trim (vent Door) Left Hand (white Model) |
|
- | |||||
| 4 | 3148471 | End Trim (vent Door) Left Hand (white Model Right Hand) |
|
- | |||||
| 5 | 3183506 | Door, Vent (white Model) |
|
- | |||||
| 5 | 3183505 | Door, Vent (black Model) |
|
- | |||||
| 6 | 342043 | Screw (2) |
|
- | |||||
| 6 | 3148618 | Trim, Bottom |
|
- | |||||
| 7 | 3182915 | Control Panel (black Model) |
|
- | |||||
| 7 | 3182916 | Control Panel (white Model) |
|
- | |||||
| 7 | 98520 | Control Panel (screw (4)) |
|
- | |||||
| 8 | 3183500 | Bracket, Stiffener |
|
- | |||||
| 8 | 311773 | Screw |
|
- | |||||
| 9 | 3182391 | Electronic Timer (black Model) |
|
- | |||||
| 9 | 3182392 | Electronic Timer (white Model) |
|
- | |||||
| 9 | 98520 | Electronic Timer (screw (4)) |
|
- | |||||
| 10 | 3182717 | Switch, Rocker (black Model) |
|
- | |||||
| 10 | 3182718 | Switch, Rocker (white Model) |
|
- | |||||
| 11 | 98520 | Screw |
|
- | |||||
| 11 | 3149142 | Shield, Air |
|
- | |||||
| LIT3182871 | Use & Care Guide |
|
- | ||||||
| LIT3184116 | Tech Sheet |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 3171507 | Mounting Hardware |
|
- | ||||||
| LIT884546 | Repair Parts List |
|
- | ||||||
| LIT3183635 | Installation Instructions |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- |
