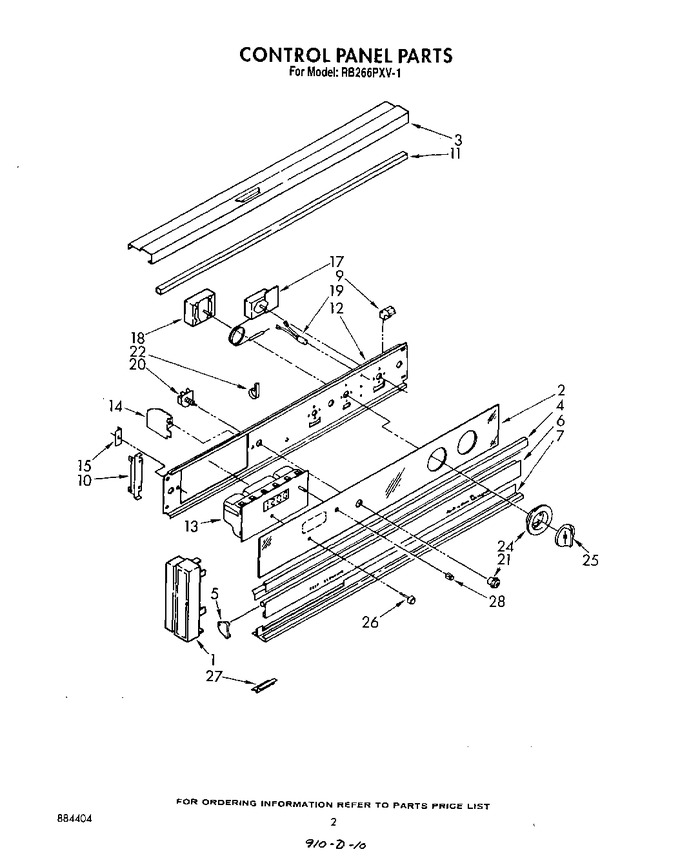

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148622		End Cap (r.h.)		Appelez-nous	-
1	WP488627		Screw (4)   (Replaces: 342055)				$ 7.30
1	3148621		End Cap. L.h.		Appelez-nous	-
2	3149179		Control Panel, Glass		Appelez-nous	-
3	WP488627		Screw (2)   (Replaces: 342055)				$ 7.30
3	3148624		Rail, Top		Appelez-nous	-
4	3149349		Trim, Center		Appelez-nous	-
5	3148472		End Trim, Vent Door L.h.		Appelez-nous	-
5	3148471		End Trim, Vent Door R.h.		Appelez-nous	-
6	3149603		Door, Vent		Appelez-nous	-
6	342043		Screw (2)		Appelez-nous	-
7	342043		Screw (4)		Appelez-nous	-
7	3148618		Trim, Bottom		Appelez-nous	-
9	310823		Retainer, Glass (4)		Appelez-nous	-
10	WP488729		Screw   (Replaces: 3148107)			Immediately	$ 7.45
10	3148635		Bracket, Control Panel (2)		Appelez-nous	-
11	311263		Seal, Backguard		Appelez-nous	-
12	330500		Braket, Control		Appelez-nous	-
13	WP488729		Screw, 8a X 3/8 (2) 8 X 3/8 (2)   (Replaces: 3148107)			Immediately	$ 7.45
13	3147698		Timer, Digital		Appelez-nous	-
14	314129		Shield, Timer		Appelez-nous	-
15	313864		Bracket, Timer		Appelez-nous	-
17	487384		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
17	3148934		Thermostat, Oven		Appelez-nous	-
18	310006		Selector Switch		Appelez-nous	-
18	155023		Screw, 8-32 X 1/4 (2)			Immediately	$ 7.91
19	311802		Indicator, Light (oven On)		Appelez-nous	-
19	3148720		Indicator, Light (locked)		Appelez-nous	-
20	WP965173		Screw, 8a X 3/8 (4)   (Replaces: 246132)			Immediately	$ 10.68
20	3149169		Switch, Oven Light		Appelez-nous	-
20	312796		Washer		Appelez-nous	-
21	3149170		Bezel Switch		Appelez-nous	-
22	98520		Screw, 8a X 5/16		Appelez-nous	-
22	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.58
24	254225		Escutcheon (screw, 8bt X 1/4 (2))		Appelez-nous	-
24	WP311068		Escutcheon, Selector Switch   (Replaces: 3149174)				$ 52.22
24	3149172		Escutcheon, Thermostat		Appelez-nous	-
25	3149175		Knob, Control (2)		Appelez-nous	-
26	3149177		Knob, Timer (4)		Appelez-nous	-
27	313865		Bracket, Control (2)		Appelez-nous	-
28	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 52.37
28	350956		Paint, Spray 13 Oz. (almond)				$ 48.61
28	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
28	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
28	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
28	978849		Paint, Bulk 1 Qt. Can (cleaner, (8 Oz.) Black Glass)				$ 15.82
28	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 52.37
28	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
28	261582		Paint, Bulk 1 Qt. Can (grease)		Appelez-nous	-
28	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 73.65
28	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
28	WP75614		Line, Splice (5)   (Replaces: 309551)				$ 46.63
28	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
28	261881		Rotisserie Kit (rck 79)		Appelez-nous	-
28	832985		Rack, Cooking (bi-level)		Appelez-nous	-
28	3149176		Knob, Timer (1)		Appelez-nous	-
28	350806		18 Ga. 80~c Rating (yellow)		Appelez-nous	-
28	10875		Wire (16 Ga. 80 C Blue)			Immediately	$ 20.64
28	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
28	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
28	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
28	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
28	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
28	242826		Wire, Splicing (25 Ft. Roll) 18 Ga. 80oc Rating (white)		Appelez-nous	-
28	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
28	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
28	242831		Wire (14 Ga. 200 C Red)				$ 342.23
28	242832		Wire, Splicing (25 Ft. Roll) 18 Ga. 80oc Rating (yellow 12 Ga. 150oc Rating)		Appelez-nous	-
28	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
28	242829		Wire, Splicing (25 Ft. Roll) 18 Ga. 80oc Rating (red)		Appelez-nous	-
28	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
28	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
28	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
28	WP261869		Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869)				$ 25.05
28	242860		Paint, Touch Up 1 Oz. (oven Liner) (blue Gray)		Appelez-nous	-
28	242757		Paint, Touch-up 1 Oz. (oven Liner) (light Gray)		Appelez-nous	-
28	8212471		Paint, Touch Up 1 Oz. (oven Liner) (bronzetone)   (Replaces: 242756)			Immediately	$ 78.50
28	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
28	261890		Paint, Spray 13 Oz. (harvest Gold)		Appelez-nous	-
28	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
28	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
28	786020		Paint, Pressurized Spray (12 Oz.) (black)		Appelez-nous	-
28	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)				$ 53.90
28	350942		Paint, Spray 13 Oz. (primer White)				$ 84.73
28	350941		Paint, Spray 13 Oz. (leveler (primer))		Appelez-nous	-
28	261900		Paint, Spray 13 Oz. (citrine White 5 Oz. (m/w Liner))				$ 53.90
28	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
28	978883		Paint, Bulk 1 Qt. Can (almond)		Appelez-nous	-
28	261891		Paint, Bulk 1 Qt. Can (harvest Gold)		Appelez-nous	-
28	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
28	285368		Paint, Bulk 1 Qt. Can (platinum)		Appelez-nous	-
28	786032		Paint, Bulk 1 Qt. Can (ebony (microwave))		Appelez-nous	-
	LIT311434		Instructions, Installation		Appelez-nous	-
	LIT3148598		Tech Sheet		Appelez-nous	-
	LIT884404		List, Parts		Appelez-nous	-
	LIT313358		Book, Cooking Guide		Appelez-nous	-
	LIT3148317		Guide, Use And Care		Appelez-nous	-
