SELECT A DIAGRAM

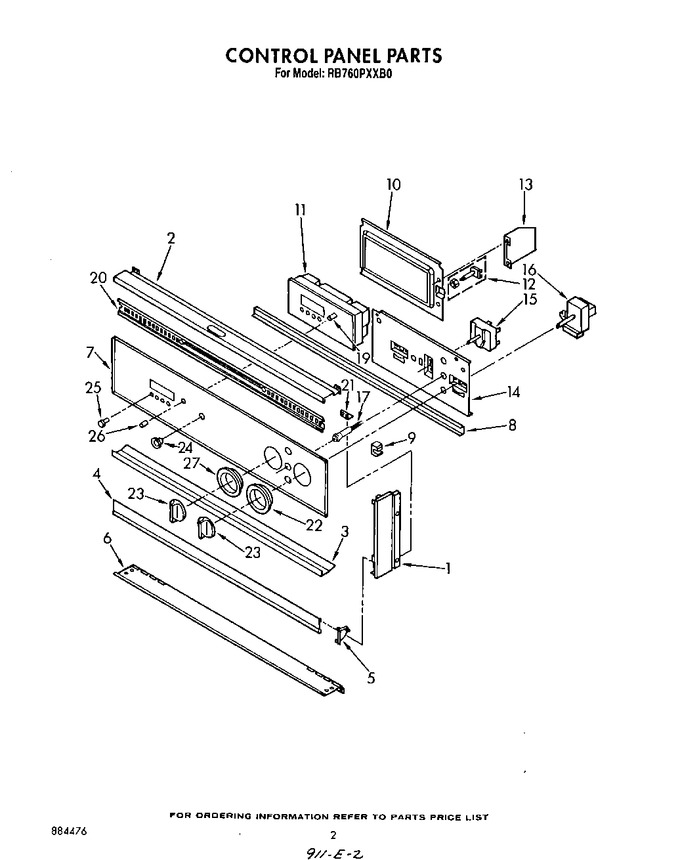

02 - Control Panel, Optional


03 - Oven


04 - Oven Door


05 - Component Shelf And Latch


06 - Unit


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3179459		End Cap (right Hand)		Appelez-nous	-
1	3179458		End Cap (left Hand)		Appelez-nous	-
2	3179421		Trim, Top		Appelez-nous	-
2	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
3	3180683		Trim, Center		Appelez-nous	-
4	3179452		Door, Vent		Appelez-nous	-
5	3148698		End Trim, Vent Door (right Hand)		Appelez-nous	-
5	3148697		End Trim, Vent Door (left Hand)		Appelez-nous	-
6	3180656		Trim, Bottom		Appelez-nous	-
6	3178001		Screw (4)		Appelez-nous	-
7	3180534		Glass, Control Panel		Appelez-nous	-
8	3180289		Rail, Mounting (components)		Appelez-nous	-
9	WP90767		Screw (6)   (Replaces: 300890)			Immediately	$ 7.43
9	3180440		Retainer, Glass (6)		Appelez-nous	-
10	3180293		Plate, Mounting (clock)		Appelez-nous	-
11	3149806		Timer		Appelez-nous	-
12	3179891		Switch, Oven Light		Appelez-nous	-
13	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
13	3180542		Shield, Heat		Appelez-nous	-
14	3180294		Plate, Mounting (controls)		Appelez-nous	-
15	3178234		Switch, Selector		Appelez-nous	-
16	3178273		Thermostat, Oven		Appelez-nous	-
16	155023		Screw (4)			Immediately	$ 7.91
17	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
17	4168598		Light, Indicator (3)		Appelez-nous	-
19	3149320		Shaft, Bit Generator		Appelez-nous	-
20	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
20	3179916		Insert, Vent		Appelez-nous	-
21	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
21	3181279		Bracket, Mounting		Appelez-nous	-
22	254225		Screw,		Appelez-nous	-
22	3180524		Escutcheon, Oven Thermostat		Appelez-nous	-
23	WP3150371		Knob, Control (2)   (Replaces: 3150371)				$ 20.38
24	313030		Bezel Switch		Appelez-nous	-
25	313958		Button, Set		Appelez-nous	-
26	313523		Knob, Bit Generator				$ 13.66
27	3180525		Escutcheon, Selector Switch		Appelez-nous	-
27	254225		Screw,		Appelez-nous	-
	LIT3180386		Tech Sheet		Appelez-nous	-
	LIT884476		Repair Parts List		Appelez-nous	-
	LIT3180016		Use & Care Guide		Appelez-nous	-
	LIT3180568		Installation Instructions		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
