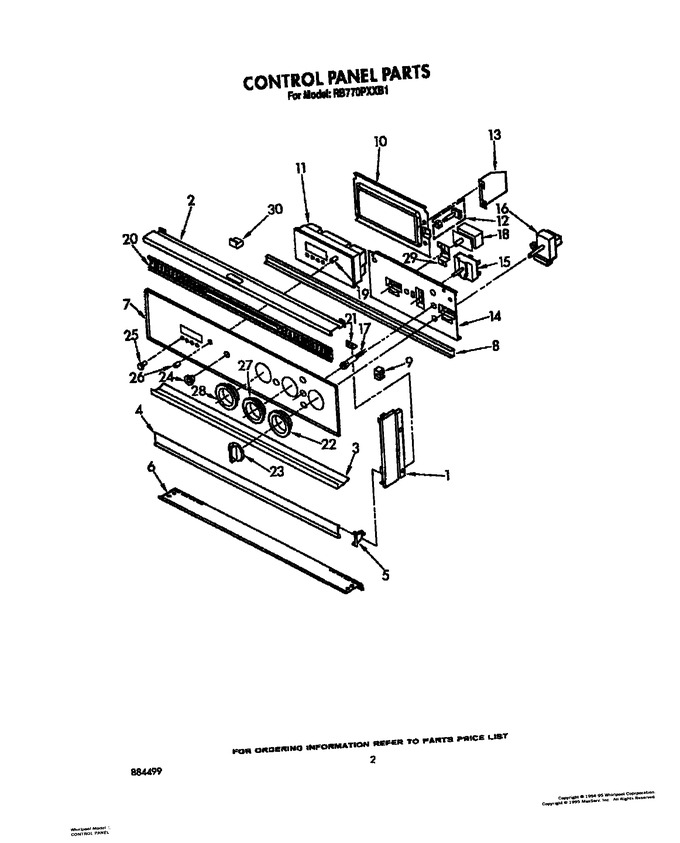

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3179458		End Cap (left Hand)		Appelez-nous	-
1	3179459		End Cap (right Hand)		Appelez-nous	-
2	3179117		Screw (2)		Appelez-nous	-
2	3179421		Trim, Top		Appelez-nous	-
3	3180683		Trim, Center		Appelez-nous	-
4	3179452		Door, Vent		Appelez-nous	-
5	3148698		End Trim, Vent Door (right Hand)		Appelez-nous	-
5	3148697		End Trim, Vent Door (left Hand)		Appelez-nous	-
6	342043		Screw (4)		Appelez-nous	-
6	3180656		Trim, Bottom		Appelez-nous	-
7	3179442		Glass, Control Panel		Appelez-nous	-
8	3180289		Rail, Mounting (components)		Appelez-nous	-
9	3180440		Retainer, Glass (6)		Appelez-nous	-
9	WP90767		Screw (6)   (Replaces: 300890)			Immediately	$ 7.43
10	3180293		Plate, Mounting (clock)		Appelez-nous	-
11	3149806		Timer		Appelez-nous	-
12	312581		Switch, Oven Light		Appelez-nous	-
13	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
13	312796		Washer (2)		Appelez-nous	-
13	3180542		Shield, Heat		Appelez-nous	-
14	3180294		Plate Mounting (components)		Appelez-nous	-
15	3178237		Switch, Selector		Appelez-nous	-
16	3178275		Thermostat, Upper Oven		Appelez-nous	-
16	155023		Screw (4)			Immediately	$ 7.91
17	4168598		Light, Indicator (4)		Appelez-nous	-
18	3178283		Thermostat, Lower Oven		Appelez-nous	-
18	3178002		Screw (2)		Appelez-nous	-
19	3149320		Shaft, Bit Generator		Appelez-nous	-
20	3148905		Washer (4)		Appelez-nous	-
20	3179916		Insert, Vent		Appelez-nous	-
20	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
21	3181279		Bracket, Mounting		Appelez-nous	-
21	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
22	254225		Screw,		Appelez-nous	-
22	3180524		Escutcheon, Oven Thermostat (upper)		Appelez-nous	-
23	WP3150371		Knob, Control (3)   (Replaces: 3150371)				$ 20.38
24	313030		Bezel Switch		Appelez-nous	-
25	313958		Button, Set (4)		Appelez-nous	-
26	313523		Knob, Bit Generator				$ 13.66
27	3180525		Ecsutcheon, Selector Switch		Appelez-nous	-
27	254225		Screw,		Appelez-nous	-
28	254225		Screw,		Appelez-nous	-
28	3180523		Ecsutcheon, Oven Thermostat (lower)		Appelez-nous	-
29	3181764		Bracket, Mounting (lower Thermostat)		Appelez-nous	-
29	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
30	3181831		Support, Glass		Appelez-nous	-
	LIT3180568		Installation Instructions		Appelez-nous	-
	LIT3180016		Use & Care Guide		Appelez-nous	-
	LIT884499		Repair Parts List		Appelez-nous	-
	LIT3180386		Tech Sheet		Appelez-nous	-
