SELECT A DIAGRAM

02 - Control Panel, Lit/optional


03 - Upper Oven


04 - Lower Oven


05 - Upper Oven Door


06 - Lower Oven Door


07 - Component Shelf And Latch


08 - Oven Liner


09 - Wiring Harness

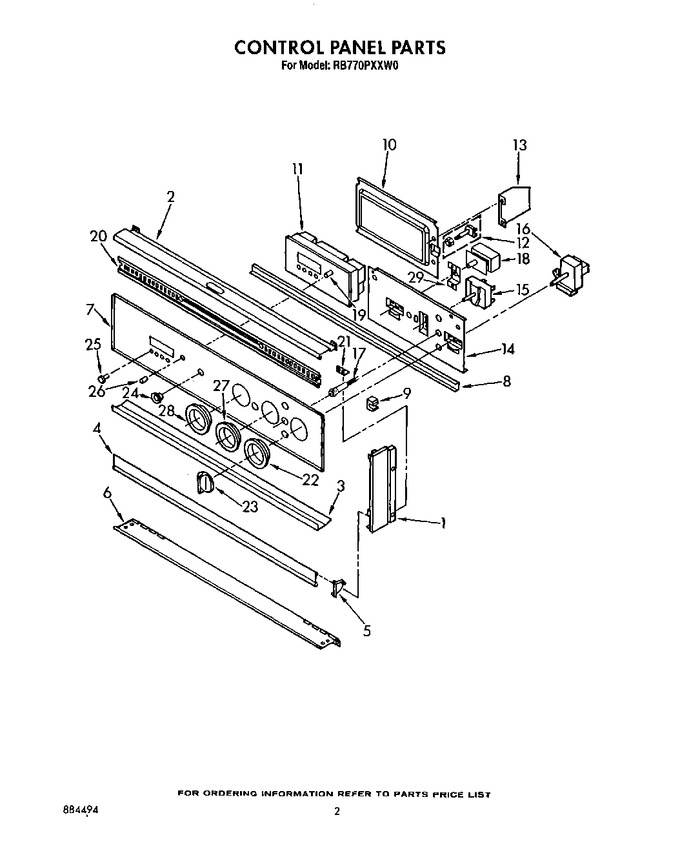

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3179458		End Cap (left Hand)		Appelez-nous	-
2	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
2	3179421		Trim, Top		Appelez-nous	-
3	3181516		Trim, Center		Appelez-nous	-
4	3179454		Door, Vent		Appelez-nous	-
5	3148471		End Trim (vent Door) (left Hand)		Appelez-nous	-
5	3148472		End Trim (vent Door) (right Hand)		Appelez-nous	-
6	342043		Screw (4)		Appelez-nous	-
6	3181518		Trim, Bottom		Appelez-nous	-
7	3179444		Glass, Control Panel		Appelez-nous	-
8	3180289		Rail, Mounting (components)		Appelez-nous	-
9	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
9	3180440		Retainer, Glass		Appelez-nous	-
10	3180293		Plate, Mounting (timer)		Appelez-nous	-
11	3149807		Timer		Appelez-nous	-
12	3179708		Switch, Oven Light		Appelez-nous	-
13	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
13	3180542		Shield, Heat		Appelez-nous	-
14	3180294		Plate Mounting (components)		Appelez-nous	-
15	3178237		Switch, Selector		Appelez-nous	-
16	3178275		Thermostat, Upper Oven		Appelez-nous	-
16	155023		Screw (4)			Immediately	$ 7.91
17	4168598		Light, Indicator		Appelez-nous	-
18	3178283		Thermostat, Lower Oven		Appelez-nous	-
18	3178002		Screw (2)		Appelez-nous	-
19	3149320		Shaft, Bit Generator		Appelez-nous	-
20	3177967		Insert, Vent		Appelez-nous	-
20	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
21	3181279		Bracket, Mounting		Appelez-nous	-
21	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
22	254225		Screw,		Appelez-nous	-
22	3181510		Escutcheon, Oven Thermostat (upper)		Appelez-nous	-
23	3150372		Knob, Control (3)		Appelez-nous	-
24	3149170		Bezel Switch		Appelez-nous	-
25	3149177		Button, Set (4)		Appelez-nous	-
26	3149176		Knob, Bit Generator		Appelez-nous	-
27	3181508		Escutcheon, Selector Switch		Appelez-nous	-
27	254225		Screw,		Appelez-nous	-
28	254225		Screw,		Appelez-nous	-
28	3181509		Ecsutcheon, Oven Thermostat (lower)		Appelez-nous	-
29	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
29	3187164		Bracket, Mounting (lower Thermostat)		Appelez-nous	-
	LIT3180568		Installation Instructions		Appelez-nous	-
	LIT884494		Repair Parts List		Appelez-nous	-
	LIT3180386		Tech Sheet		Appelez-nous	-
	LIT3180016		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
