01 - Control Panel, Literature
02 - Upper Oven
03 - Lower Oven
04 - Upper Oven Door
05 - Lower Oven Door
06 - Component Shelf And Latch
07 - Unit
08 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

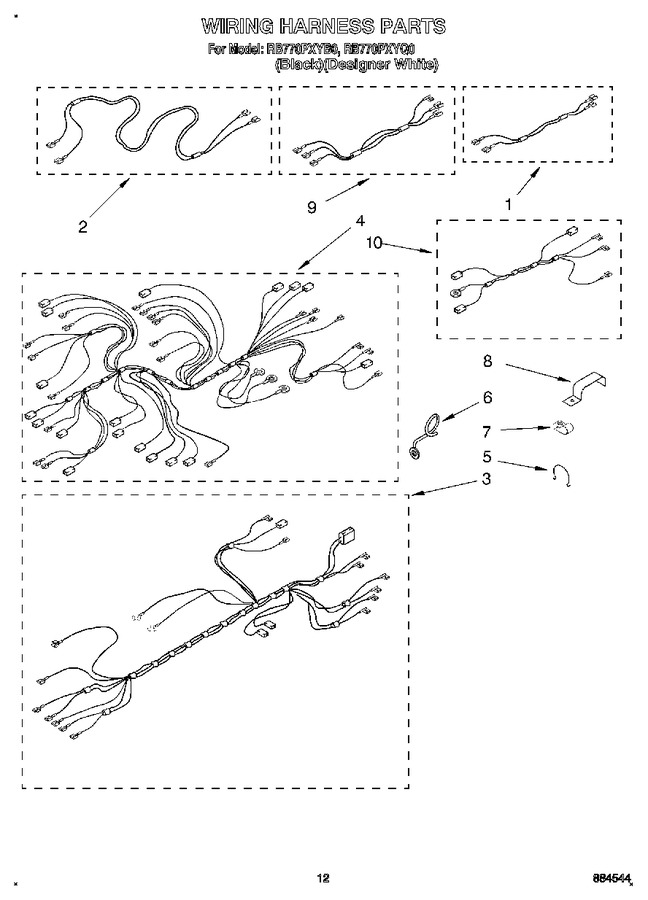

| 1 | 3187607 | Harness Wire (door Switch Upper) |
|
- | |||||
| 2 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.80 | ||||
| 2 | 3183656 | Harness Wire (door Switch Lower) |
|
- | |||||
| 3 | 3184298 | Harness Wire (lower Oven) |
|
- | |||||
| 4 | 3184218 | Harness Wire (upper Oven) |
|
- | |||||
| 5 | WP90767 | Screw (Replaces: 300890) |
|
Immediately | $ 7.43 | ||||
| 5 | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| 6 | WP90767 | Screw (4) (Replaces: 300890) |
|
Immediately | $ 7.43 | ||||
| 6 | 3179668 | Standoff, Wire |
|
- | |||||
| 7 | 3179668 | Standoff, Wire |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: 300890) |
|
Immediately | $ 7.43 | ||||
| 8 | 7111P002-60 | Clamp, Wire (Replaces: 4159037) |
|
- | |||||
| 9 | WP112432 | Nut, Hex (3) (Replaces: 112432) |
|
$ 7.77 | |||||
| 9 | 3183977 | Wiring Harness (latch Assembly) |
|
- | |||||
| 10 | 3183658 | Harness, Wire (blower Fan) |
|
- |
