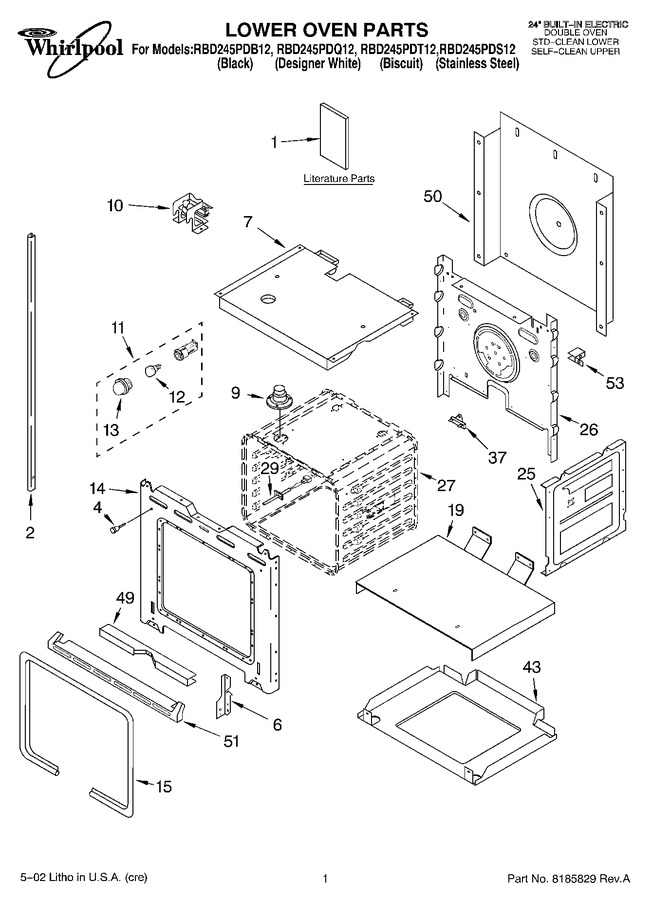

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4450409		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT4450568		Literature Parts (use & Care Guide (oven))		Appelez-nous	-
1	LIT4451887		Literature Parts (tech Sheet)		Appelez-nous	-
2	4452122		Trim, Side (rh Biscuit)		Appelez-nous	-
2	4450850		Trim, Side (rh Black)		Appelez-nous	-
2	4450851		Trim, Side (rh White)		Appelez-nous	-
2	4450853		Trim, Side (lh Black)		Appelez-nous	-
2	4450854		Trim, Side (lh White)		Appelez-nous	-
2	4452123		Trim, Side (lh Biscuit Screw)		Appelez-nous	-
2	WP8281236		Trim, Side (black Model)   (Replaces: 4449747)				$ 7.34
2	4449041		Trim, Side (white)				$ 5.27
4	4448520		Bumper, Door				$ 20.03
6	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 114.93
6	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 118.57
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
7	4455863		Top, Chassis   (Replaces: 4455284)				$ 105.84
9	W10861715		Tube, Vent   (Replaces: 4452159)				$ 110.21
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 13.25
10	4451664		Fan & Bracket Assy		Appelez-nous	-
10	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
11	4452368		Oven Light Assy		Appelez-nous	-
11	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 49.04
13	4452165		Lens, Light		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 7.90
14	9760754		Frame, Front   (Replaces: 4455610)				$ 119.39
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	W10203263		Gasket, Door   (Replaces: 4450491)		Appelez-nous	-
19	4451476		Support, Insulation		Appelez-nous	-
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 135.62
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
26	4452232		Back, Chassis		Appelez-nous	-
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 94.50
29	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
37	WP4451354		Fuse - Thermal   (Replaces: 4451354)				$ 40.95
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
43	4450525		Base, Chassis		Appelez-nous	-
43	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
49	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 8.37
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 135.06
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
51	4448473		Trim, Bottom (black Model)		Appelez-nous	-
51	4448474		Trim, Bottom (white Model)		Appelez-nous	-
51	8300528		Trim, Bottom (biscuit Model)		Appelez-nous	-
51	4159465		Trim, Bottom (screw)		Appelez-nous	-
53	WP4450363		Insulation, Back   (Replaces: 4450363)				$ 170.30
53	4449845		Support, Bracket		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
53	WP4449314		Insulation, Wrap   (Replaces: 4449314)				$ 170.68
