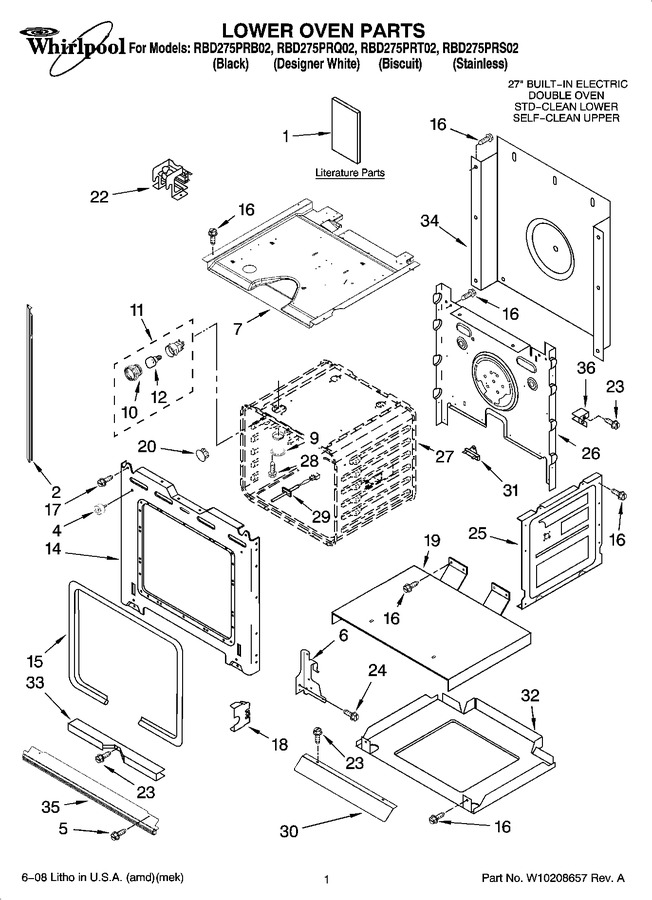

01 - Lower Oven Parts


02 - Upper Oven Parts


03 - Lower Oven Door Parts


04 - Upper Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8302068		Tech Sheet		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	8303648		Installation Instructions		Appelez-nous	-
1	W10162170		Use & Care Guide		Appelez-nous	-
2	W10136098		Trim, Side Right (black)		Appelez-nous	-
2	W10136103		Trim, Side Left (biscuit)		Appelez-nous	-
2	WPW10339502		Trim, Side Left (white)   (Replaces: W10136101)				$ 115.88
2	W10166948		Trim, Side Left (stainless)		Appelez-nous	-
2	WPW10339500		Trim, Side Left (black)   (Replaces: W10136099)				$ 184.32
2	W10166949		Trim, Side Right (stainless)		Appelez-nous	-
2	W10339503		Trim, Side Right (biscuit)   (Replaces: W10136102)		Appelez-nous	-
2	W10136100		Trim, Side Right (white)		Appelez-nous	-
4	W10105790		Bumper, Door				$ 6.67
5	WP3400805		Screw (zinc)   (Replaces: 3400805)				$ 6.80
5	WP3400832		Screw (black)   (Replaces: 3400832)			Immediately	$ 7.36
6	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 118.57
6	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 114.93
7	4455864		Top, Chassis				$ 22.85
9	W10861715		Tube, Vent   (Replaces: 4452159)				$ 110.21
10	W10067870		Lens, Light				$ 65.50
11	WPW10734065		Oven Light Assy   (Replaces: W10009930)				$ 91.31
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 49.04
14	W10130370		Frame, Front				$ 79.39
15	4450492		Gasket, Door		Appelez-nous	-
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
18	4452152		Bracket, Mounting- Bottom Vent				$ 31.66
19	4451477		Support, Insulation		Appelez-nous	-
20	4450935		Plug, Door		Appelez-nous	-
22	4451664		Assembly, Fan & Bracket		Appelez-nous	-
23	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
24	WP4449743		Screw   (Replaces: 4449743)				$ 6.80
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 135.62
26	W10161109		Back, Chassis		Appelez-nous	-
28	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 13.25
29	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 94.50
30	9760676		Deflector, Vent		Appelez-nous	-
31	WP4451354		Fuse - Thermal   (Replaces: 4451354)				$ 40.95
32	4455529		Base, Chassis		Appelez-nous	-
33	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 8.37
34	WP4451747		Cover-back   (Replaces: 4451747)				$ 135.06
35	8303580		Trim, Bottom (white)		Appelez-nous	-
35	8303581		Trim, Bottom (biscuit)		Appelez-nous	-
35	8303578		Trim, Bottom (stainless)		Appelez-nous	-
35	8303579		Trim, Bottom (black)		Appelez-nous	-
36	4449845		Support, Bracket		Appelez-nous	-
	4450364		Insulation, Back		Appelez-nous	-
	4449315		Insulation, Wrap				$ 64.81
