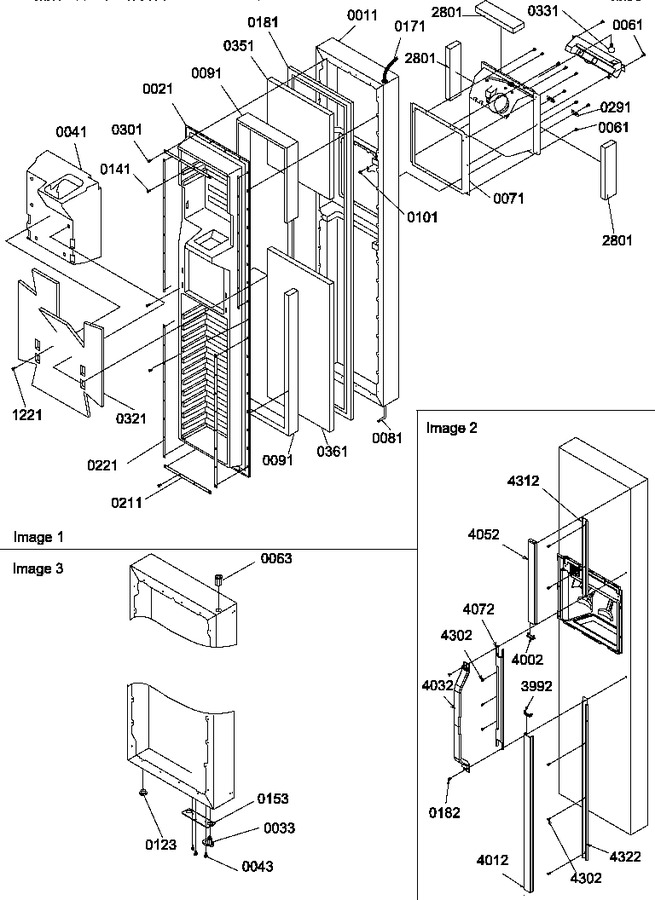

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10876202E | Assy Fz Dr Fm (black) |
|
- | |||||
| 21 | 10861002 | Liner-i&w Fz Dr |
|
- | |||||
| 33 | R0181181 | Closure-e Door (Replaces: 12113203) |
|
Immediately | $ 7.55 | ||||
| 35 | C8992901 | Clip |
|
- | |||||
| 41 | 10872801 | Insul-i&w Cavity |
|
- | |||||
| 43 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 45 | M0219730 | Screw |
|
$ 7.65 | |||||
| 61 | M0216517 | Screw |
|
- | |||||
| 63 | C8964402 | Bushing, Top |
|
- | |||||
| 65 | 10940701 | Insul-disp Batt |
|
- | |||||
| 71 | D7791003 | Gasket Cavity |
|
- | |||||
| 75 | W10857122 | Light Bulb (Replaces: M0360001) |
|
Immediately | $ 14.52 | ||||
| 81 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 13.05 | |||||
| 91 | B0523563 | Insulation Ft. K |
|
- | |||||
| 95 | 12016905 | Insul, Batt |
|
- | |||||
| 101 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 105 | 12016906 | Insul, Batt |
|
- | |||||
| 123 | M0310336 | Plug, Button (blk) |
|
- | |||||
| 141 | M0226705 | Screw, Shoulder |
|
- | |||||
| 152 | 10953116 | Insert, Trim (black) |
|
- | |||||
| 153 | 10161805 | Stop-black Door |
|
- | |||||
| 162 | 10953115 | Insert, Trim (black) |
|
- | |||||
| 171 | 10952104 | Harness-fz Door |
|
- | |||||
| 172 | 10810511 | Trim, Bottom Door Ebony |
|
- | |||||
| 181 | 10359711 | Gasket Door Frz |
|
- | |||||
| 182 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 192 | 12139306 | Handle, Door (black) |
|
- | |||||
| 197 | M0311602 | Plug, Button (white) |
|
- | |||||
| 206 | M0216517 | Screw |
|
- | |||||
| 211 | C8982801 | Retainer, Door Liner |
|
- | |||||
| 212 | 10810311 | Trim-e Top Fz Dr |
|
- | |||||
| 216 | 10852212 | Ret-up Fz Trim |
|
- | |||||
| 221 | D7828601 | Retainer, Door Liner |
|
- | |||||
| 226 | 10852215 | Ret-lw Fz Trim |
|
- | |||||
| 232 | 10810603 | Trim- E Ctr I&w Dr |
|
- | |||||
| 241 | B0523596 | Insul. By The Ft. |
|
- |
