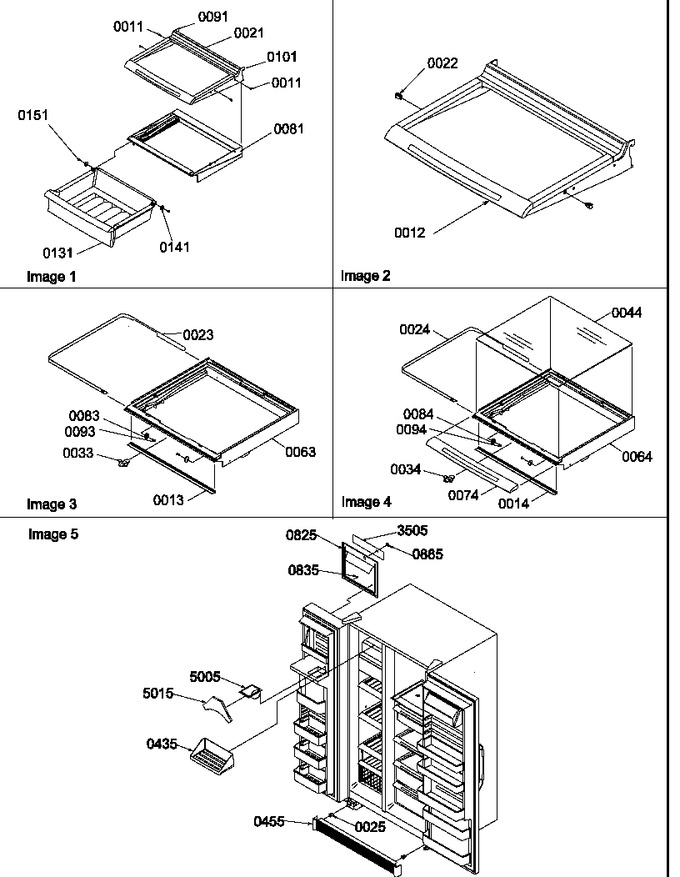

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | M0238229 | Screw |
|
- | |||||
| 12 | 10809511 | Assy Shelf |
|
- | |||||
| 13 | 10968801 | Seal-crisp Front |
|
- | |||||
| 14 | 10968801 | Seal-crisp Front |
|
- | |||||
| 21 | 10809519 | Shelf, Full Glide-out |
|
- | |||||
| 22 | 10875101 | Stop, Shelf |
|
- | |||||
| 23 | 10882701 | Band, Crisper |
|
- | |||||
| 24 | 10882702 | Band-crisper |
|
- | |||||
| 25 | M0117302 | Clip, Grille |
|
- | |||||
| 33 | 10852501 | Slide, Crisper/deli |
|
- | |||||
| 34 | 10852501 | Slide, Crisper/deli |
|
- | |||||
| 44 | Y10370065 | Glass-shelf |
|
- | |||||
| 63 | 10782901 | Frame,crisper |
|
- | |||||
| 64 | 10783001 | Frame-crisper |
|
- | |||||
| 74 | 12113003 | Trim-crisper Fr |
|
- | |||||
| 81 | 10783702 | Frame, Deli |
|
- | |||||
| 83 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 84 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 91 | 10809915 | Rail, L Blank Side |
|
- | |||||
| 93 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 10.79 | |||||
| 94 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 10.79 | |||||
| 101 | 10809916 | Rail, R Blank Side |
|
- | |||||
| 131 | 10784101 | Pan,deli |
|
- | |||||
| 141 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 151 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 10.79 | |||||
| 435 | 10870801 | Shelf, Ice Cream |
|
- | |||||
| 455 | 10470311 | Kit, Toe Grille (alm) |
|
- | |||||
| 825 | 10986106 | Facade, Disp(almond) |
|
- | |||||
| 835 | M0219640 | Screw |
|
- | |||||
| 885 | 12036403 | Cap-switch Al |
|
- | |||||
| 3505 | 10984608 | Insert, Facade (almond) |
|
- | |||||
| 5005 | 10504101 | Chute, Ice |
|
- | |||||
| 5015 | 12044501 | Gasket-ice Chute |
|
- |
