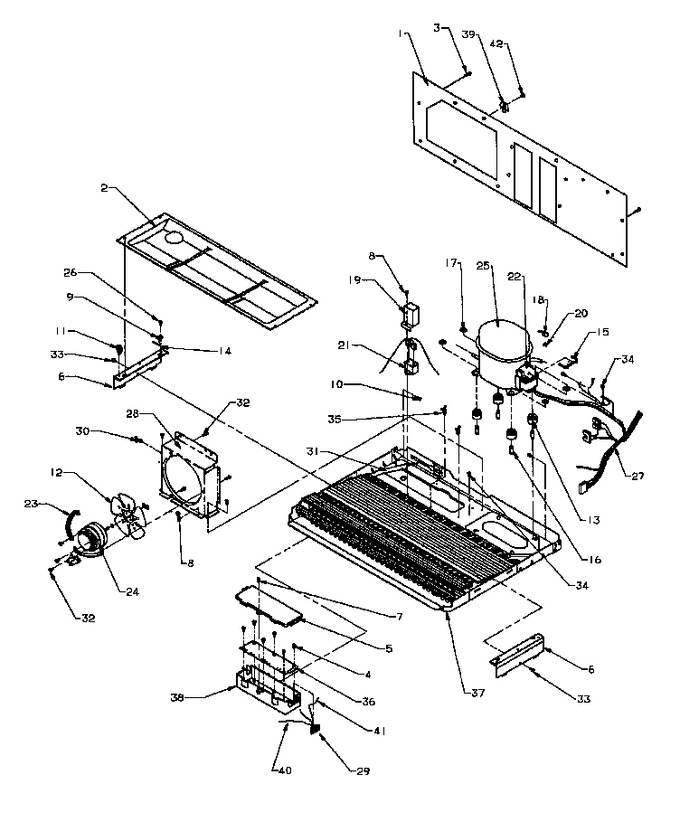

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10559902		Assy, Mach Comp Back		Appelez-nous	-
2	10507901		Pan, Drain		Appelez-nous	-
3	M0219704		Screw		Appelez-nous	-
4	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.59
5	10497801		Cover H.v. Box		Appelez-nous	-
6	10495701		Bracket, Drain Pan Mtg.		Appelez-nous	-
7	M0216517		Screw		Appelez-nous	-
8	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.43
9	M0585601		Tab, Wire Tie		Appelez-nous	-
10	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 7.25
11	M0118703		Clip, Guide		Appelez-nous	-
12	10518701		Blade, Fan		Appelez-nous	-
13	WPW10169124		Grommet   (Replaces: B8333401)				$ 6.80
14	WPW10339879		Tie   (Replaces: M0321202)				$ 7.47
15	YB8358601		Bale Strap		Appelez-nous	-
16	B8384901		Pin, Comp. Mtg.		Appelez-nous	-
17	B8385001		Clip, Comp. Mtg		Appelez-nous	-
18	10377005		Overload		Appelez-nous	-
19	10266401		Shield-capacitor		Appelez-nous	-
20	C8931505		Relay, Ptc		Appelez-nous	-
21	WP65889-4		Capacitor   (Replaces: C8931608)			Immediately	$ 62.10
22	C8960801		Term Cover		Appelez-nous	-
23	10496501		Kit,shroud/brkt Sound		Appelez-nous	-
24	833697		Motor, Fan   (Replaces: 10884501)			Immediately	$ 98.23
25	10507824		Compressor Hg111-1		Appelez-nous	-
26	M0213529		Screw		Appelez-nous	-
27	10843801		Harness, Mc		Appelez-nous	-
28	10602404		Kit,shroud/brkt Sound		Appelez-nous	-
29	10544502		Switch, Slide		Appelez-nous	-
30	M0585403		Tie Wire		Appelez-nous	-
31	10851302		Insulation, Tube		Appelez-nous	-
32	M0223803		Screw		Appelez-nous	-
33	A4539603		Pop Rivet		Appelez-nous	-
34	M0253916		Screw		Appelez-nous	-
35	DC61-40081A		Tie, Wire   (Replaces: M0585401)				$ 0.85
36	10627301		Board, H.v. Pc		Appelez-nous	-
37	10544104		Assy,cond/pan-e Ct		Appelez-nous	-
38	10495901		Box, H. V.		Appelez-nous	-
39	M0102301		Clamp		Appelez-nous	-
40	D7383454		Wire, Jumper		Appelez-nous	-
41	D7383455		Wire, Jumper		Appelez-nous	-
42	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 6.57
