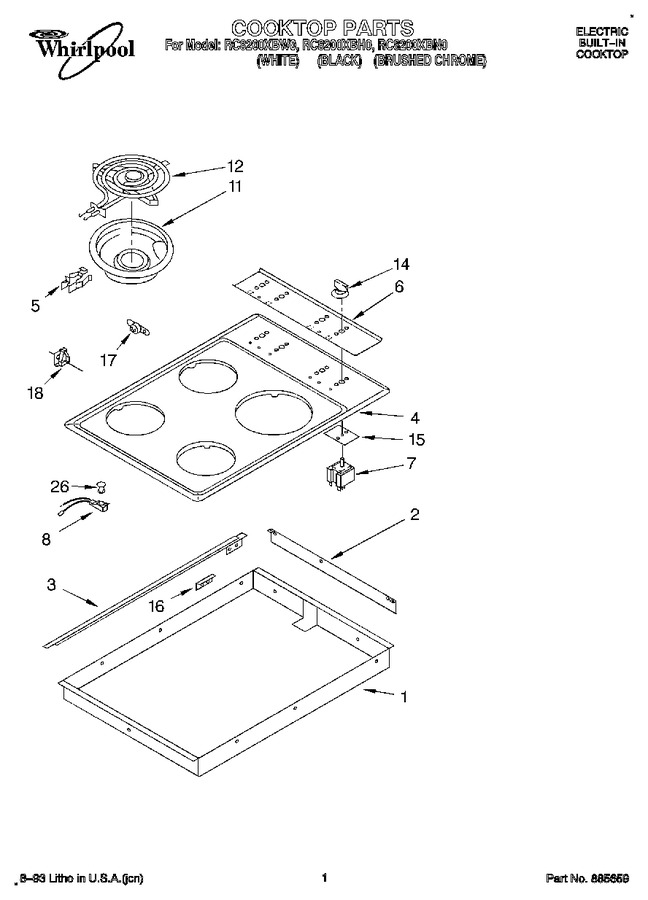

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3188765		Burner Box		Appelez-nous	-
1	4159456		Screw		Appelez-nous	-
2	3187446		Shield, Heat		Appelez-nous	-
2	4159456		Screw		Appelez-nous	-
3	3188766		Support, Cooktop		Appelez-nous	-
3	4159456		Screw		Appelez-nous	-
4	3148755		Cooktop (almond)		Appelez-nous	-
4	3148754		Cooktop (white)		Appelez-nous	-
4	3183904		Cooktop (brushed Chrome)		Appelez-nous	-
5	WP313808		Screw, 6-32 X 9/32 (4)   (Replaces: 313808)				$ 7.47
5	330031		Receptacle, Plug-in (4)   (Replaces: 312606)			Immediately	$ 17.93
6	3185692		Panel, Control		Appelez-nous	-
7	155023		Switch Infinite (screw, 8-32 X 1/4 (8))			Immediately	$ 7.91
7	3148968		Switch, Infinite (use W/6`` Surface Unit (2))		Appelez-nous	-
7	WP3148966		Switch, Infinite (use W/8`` Surface Unit (2))   (Replaces: 3148966)				$ 136.86
8	3187778		Light, Indicator		Appelez-nous	-
11	WPW10196406		Pan, Surface Unit (6`` (2))   (Replaces: 3150246)			Immediately	$ 12.05
11	W10196405RW		Pan, Surface Unit (8`` (2))   (Replaces: 3150247)			Immediately	$ 19.64
12	WP660533		Element, Surface (8`` (2))   (Replaces: 660530)			Immediately	$ 40.21
12	WP660532		Element, Surface (6`` (2))   (Replaces: 660528)			Immediately	$ 45.10
14	3183120		Knob, Control (4)		Appelez-nous	-
15	3183956		Seal, Switch Shaft (4)				$ 43.89
16	3188767		Bracket		Appelez-nous	-
17	4159456		Screw		Appelez-nous	-
17	WP3188286		Thermostat   (Replaces: 3188286)				$ 69.44
18	814103		Clip, Hold Down (4)   (Replaces: 3148790)				$ 9.47
26	313602		Lens, Light		Appelez-nous	-
	LIT3185371		Use & Care Guide		Appelez-nous	-
	LIT311437		Installation Instructions		Appelez-nous	-
	LIT3187832		Wire Diagram		Appelez-nous	-
